KZN185W-GAMVT (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 1KZTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-0008)1KZTE

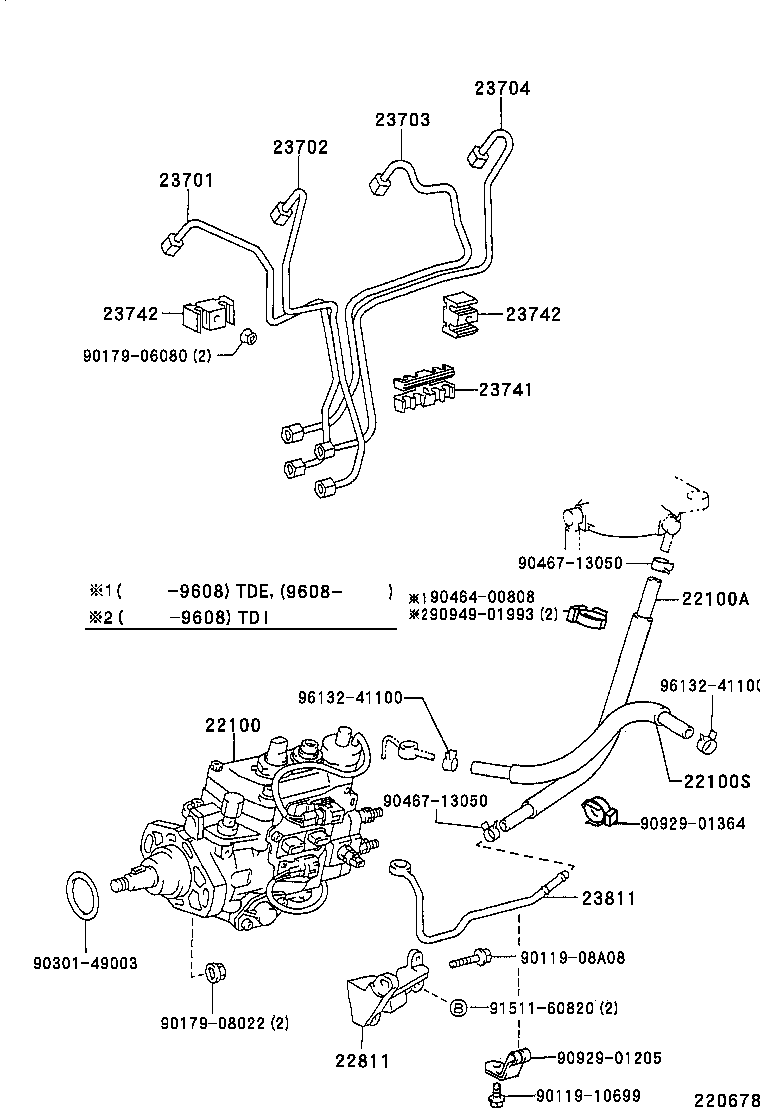

Click highlighted areas on diagram

diagram 22100 22100A 22100S 22811 23701 23702 23703 23704 23741 23742 23742 23811 9011908A08 9011910699 9017906080 9017908022 9030149003 9046400808 9046713050 9046713050 9092901205 9092901364 9094901993 9151160820 9613241100 9613241100
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-67070

1KZTE..KZN185

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23271-67080

1KZTE..KZN185

長さ=650

 1
22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
23273-67040

1KZTE..KZN185

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-67010

1KZTE..KZN185

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-67021

1KZTE..KZN185

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-67020

1KZTE..KZN185

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-67021

1KZTE..KZN185

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-67020

1KZTE..KZN185

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-64030

1KZTE..KZN185

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-67010

1KZTE..KZN185

 2
23742 - CLAMP, INJECTION PIPE, NO.2
23742-67010

1KZTE..KZN185

 2
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-67050

1KZTE..KZN185

 1
Common parts
90119-08A08
90119-10699
90179-06080
90179-08022
90301-49003
90464-00808
90467-13050
90929-01205
90929-01364
90949-01993
91511-60820
96132-41100
