KZN185W-GAMVT (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 1KZTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )1K#

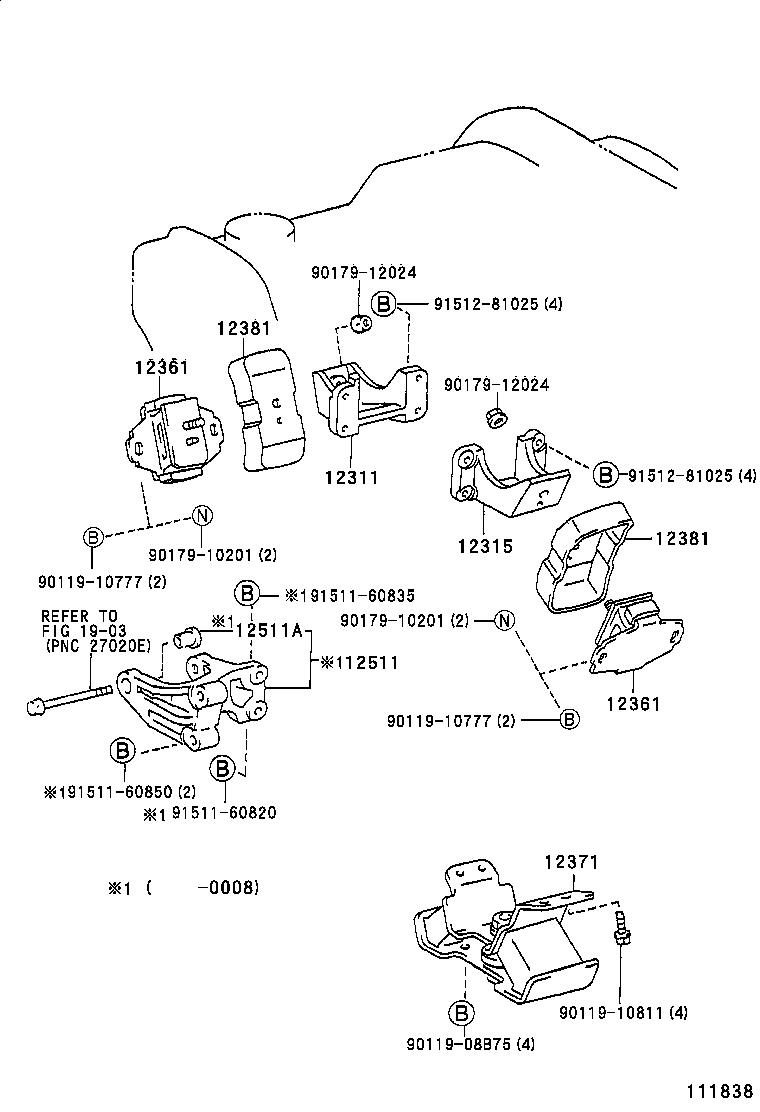

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12511 12511A 1903 9011908B75 9011910777 9011910777 9011910811 9017910201 9017910201 9017912024 9017912024 9151160820 9151160835 9151160850 9151281025 9151281025
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-67050

1K#..KDN185,KZN185

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-67030

1K#..KDN185,KZN185

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-67030

1K#..KDN185,KZN185

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-67030

1K#..KDN185,KZN185

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-67060

1KZTE..KZN185..5F

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-67020

1K#..KDN185,KZN185

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-67020

1K#..KDN185,KZN185

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-67020

1KZTE..KZN185

 1
12511A - BUSH, ALTERNATOR BRACKET
90389-10039

1KZTE..KZN185

 1
Common parts
90119-08B75
90119-10777
90119-10811
90179-10201
90179-12024
91511-60820
91511-60835
91511-60850
91512-81025
Linked diagrams
1903
