KZN185W-GAMVT (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 1KZTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-0008)1KZTE

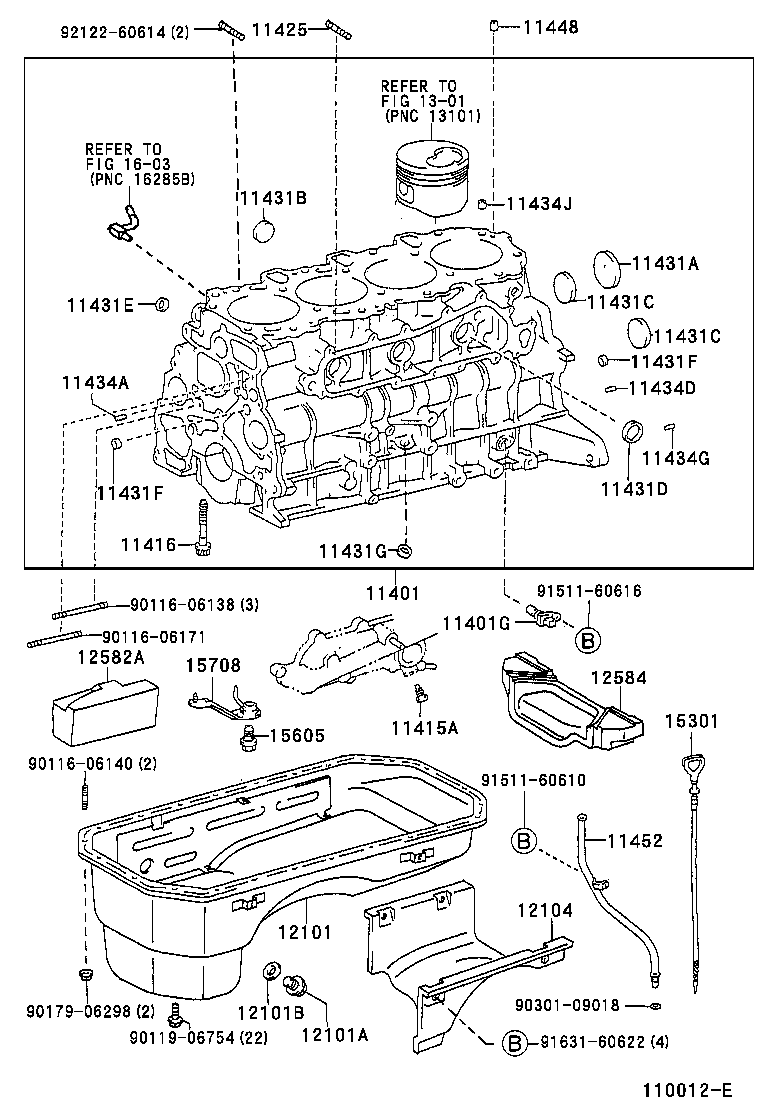

Click highlighted areas on diagram

diagram 11401 11401G 11415A 11416 11425 11431A 11431B 11431C 11431C 11431D 11431E 11431F 11431F 11431G 11434A 11434D 11434G 11434J 11448 11452 12101 12101A 12101B 12104 12582A 12584 1301 15301 15605 15708 1603 9011606138 9011606140 9011606171 9011906754 9017906298 9030109018 9151160610 9151160616 9163160622 9212260614
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69605

1KZTE..KZN185

 1
11401-69606

1KZTE..KZN185

 1
11401-69705

1KZTE..KZN185

 1
11401G - SENSOR, CRANK POSITION
90919-05005

1KZTE..KZN185

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1KZTE..KZN185

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02113

1K#..KDN185,KZN185

 10
11425 - BOLT, STUD(FOR OIL FILTER)
90116-06141

1KZTE..KZN185

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-64500

1K#..KDN185,KZN185

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-63500

1K#..KDN185,KZN185

 3
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-64000

1K#..KDN185,KZN185

 2
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-64000

1K#..KDN185,KZN185

 2
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
90331-35004

1K#..KDN185,KZN185

 3
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-62000

1K#..KDN185,KZN185

 1
11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)
96411-61800

1K#..KDN185,KZN185

 2
11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)
96411-61800

1K#..KDN185,KZN185

 2
11431G - PLUG, TIGHT
90331-14006

1K#..KDN185,KZN185

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

1K#..KDN185,KZN185

長さ=18,外径=8

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

1K#..KDN185,KZN185

長さ=11,外径=6

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10192

1K#..KDN185,KZN185

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15016

1K#..KDN185,KZN185

 2
11448 - ORIFICE, CYLINDER BLOCK OIL
11448-67010

1K#..KDN185,KZN185

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-67030

1KZTE..KZN185

 1
12101 - PAN SUB-ASSY, OIL
12101-67110

1KZTE..KZN185

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1K#..KDN185,KZN185

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1K#..KDN185,KZN185

 1
12104 - COVER SUB-ASSY, OIL PAN, NO.1
12104-67010

1K#..KDN185,KZN185

 1
12582A - INSULATOR, CYLINDER BLOCK, NO.2
12582-67010

1KZTE..KZN185

 1
12584 - INSULATOR, CYLINDER BROCK, NO.4
12584-67060

1KZTE..KZN185

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-67031

1K#..KDN185,KZN185

 1
15301-67030

1KZTE..KZN185

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-54010

1KZTE..KZN185

 4
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-67010

1K#..KDN185,KZN185

 4
Common parts
90116-06138
90116-06140
90116-06171
90119-06754
90179-06298
90301-09018
91511-60610
91511-60616
91631-60622
92122-60614
