KZN185W-GAMGT (1995)

Toyota Hilux Surf

Production Nov 1995 - Aug 1997
Engine 1KZTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )

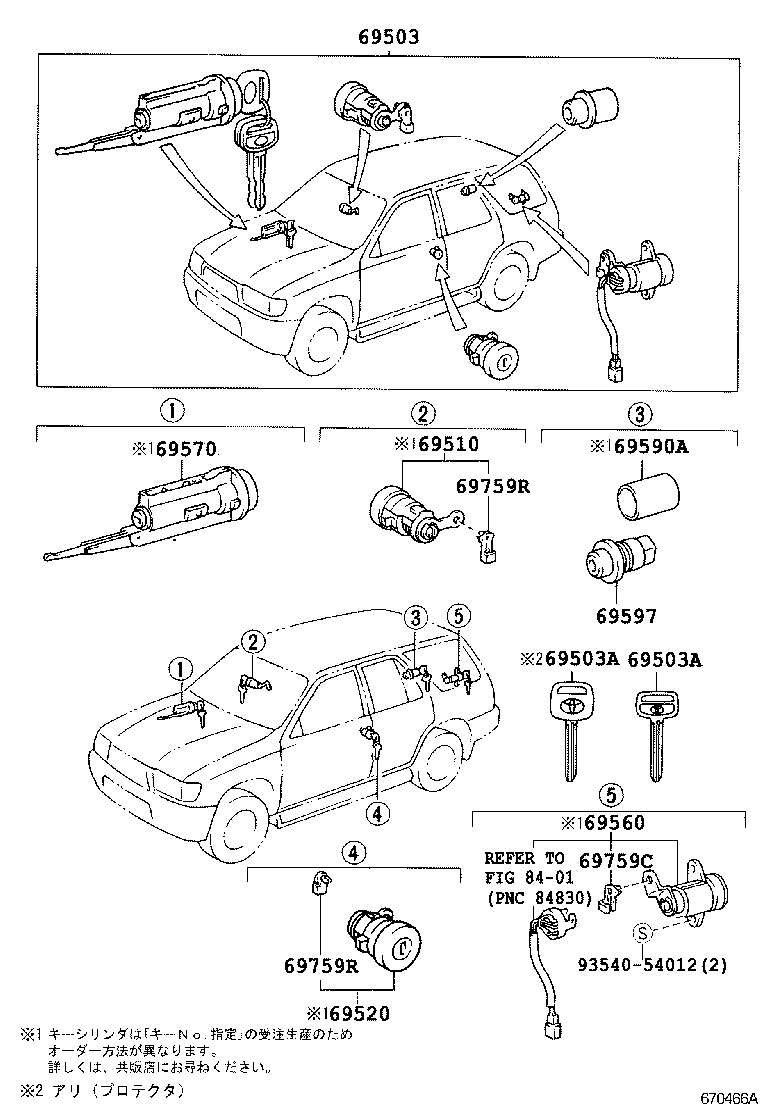

Click highlighted areas on diagram

diagram 69503 69503A 69503A 69510 69520 69560 69570 69590A 69597 69759C 69759R 69759R 8401 9354054012
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-35140

KZN185,RZN185,VZN185

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑ ﾂﾞｹ))

 1
69005-35410

KZN185,RZN185,VZN185..WIB

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ))

 1
69503A - KEY, BLANK
90999-00186

KDN185,KZN185,RZN18#,VZN18#

ﾏｽﾀｰｷｰ

 2
90999-00185

KDN185,KZN185,RZN18#,VZN18#

ﾏｽﾀｰｷｰ,*68付き

 1
69503A - KEY, BLANK
90999-00186

KDN185,KZN185,RZN18#,VZN18#

ﾏｽﾀｰｷｰ

 2
90999-00185

KDN185,KZN185,RZN18#,VZN18#

ﾏｽﾀｰｷｰ,*68付き

 1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-35070

KZN185,RZN185,VZN185

 1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-35040

KZN185,RZN185,VZN185

 1
69560 - CYLINDER ASSY, BACK DOOR LOCK
69560-35070

KZN185,RZN185,VZN185

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑ ﾂﾞｹ))

 1
69560-35080

KZN185,RZN185,VZN185..WIB

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ))

 1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-35030

KZN185,RZN185,VZN185

 1
69590A - CYLINDER ASSY, SPARE WHEEL LOCK
69590-35030

KZN185,RZN185,VZN185..WIB

 1
69597 - NUT, SPARE WHEEL LOCK
69597-35020

KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)

 1
69759C - SNAP, BACK DOOR LOCK CYLINDER
69759-24080

KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ))

 1
69759-24090

KDN185,KZN185,RZN18#,VZN18#

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑ ﾂﾞｹ))

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-20080

KZN185,RZN185,VZN185

ｵﾚﾝｼﾞ,ﾗｲﾄ

 1
69759-20090

KZN185,RZN185,VZN185

ﾋﾟﾝｸ,ﾚﾌﾄ

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-20080

KZN185,RZN185,VZN185

ｵﾚﾝｼﾞ,ﾗｲﾄ

 1
69759-20090

KZN185,RZN185,VZN185

ﾋﾟﾝｸ,ﾚﾌﾄ

 1
Common parts
93540-54012
Linked diagrams
8401
