KZN185W-GAMGT (1995)

Toyota Hilux Surf

Production Nov 1995 - Aug 1997
Engine 1KZTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )

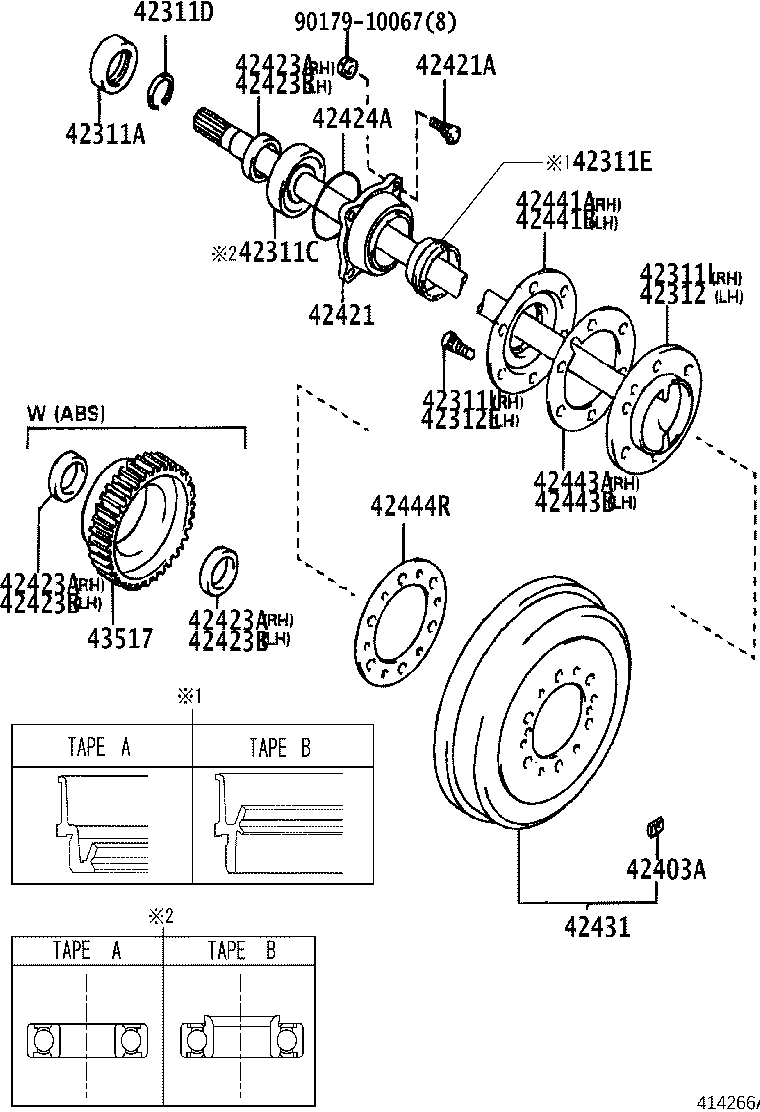

Click highlighted areas on diagram

diagram 42311A 42311C 42311D 42311E 42311L 42311U 42312 42312E 42403A 42421 42421A 42423A 42423A 42423A 42423B 42423B 42423B 42424A 42431 42441A 42441B 42443A 42443B 42444R 43517 9017910067
Part # Description Qty Price
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90310-50001

KZN185,RZN18#,VZN18#

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
90363-40020

KZN185,RZN18#,VZN18#

TYPE A:ｲﾗｽﾄ参照

 2
42311D - RING, SNAP (FOR REAR AXLE SHAFT)
90520-36045

KDN185,KZN185,RZN18#,VZN18#

 2
42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
90313-48001

KZN185,RZN18#,VZN18#

TYPE A:ｲﾗｽﾄ参照

 2
42311L - SHAFT, REAR AXLE, RH
42311-35210

KZN185,RZN185..SSR,SSRV,SSRX

 1
42311-35220

KZN185,RZN185,VZN185

ｱﾘ(ABS)

 1
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02052

KZN185,RZN18#,VZN18#

 6
42312 - SHAFT, REAR AXLE, LH
42311-35210

KZN185,RZN185..SSR,SSRV,SSRX

 1
42311-35220

KZN185,RZN185,VZN185

ｱﾘ(ABS)

 1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02052

KZN185,RZN18#,VZN18#

 6
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01119

KDN185,KZN185,RZN18#,VZN18#

30G

 1
90937-01451

KZN185,RZN18#,VZN18#

50G

 1
90937-01118

KDN185,KZN185,RZN18#,VZN18#

20G

 1
90937-01117

KDN185,KZN185,RZN18#,VZN18#

10G

 1
90937-01450

KZN185,RZN18#,VZN18#

40G

 1
42421 - CASE, REAR AXLE BEARING
42421-35030

KZN185,RZN18#,VZN18#

 2
42421A - BOLT (FOR REAR AXLE BEARING CASE)
90114-10002

KDN185,KZN185,RZN18#,VZN18#

 8
42423A - RETAINER, REAR AXLE BEARING, INNER RH
42423-20010

KZN185,RZN185..SSR,SSRV,SSRX

 1
42423-20010

KZN185..SSRX..TDI;KZN185,RZN185..SSRG;KDN185,RZN180,VZN18#

 2
42423-20010

KZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE)

ｱﾘ(ABS)

 2
42423A - RETAINER, REAR AXLE BEARING, INNER RH
42423-20010

KZN185,RZN185..SSR,SSRV,SSRX

 1
42423-20010

KZN185..SSRX..TDI;KZN185,RZN185..SSRG;KDN185,RZN180,VZN18#

 2
42423-20010

KZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE)

ｱﾘ(ABS)

 2
42423A - RETAINER, REAR AXLE BEARING, INNER RH
42423-20010

KZN185,RZN185..SSR,SSRV,SSRX

 1
42423-20010

KZN185..SSRX..TDI;KZN185,RZN185..SSRG;KDN185,RZN180,VZN18#

 2
42423-20010

KZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE)

ｱﾘ(ABS)

 2
42423B - RETAINER, REAR AXLE BEARING, INNER LH
42423-20010

KZN185..SSRX..TDI;KZN185,RZN185..SSRG;KDN185,RZN180,VZN18#

 2
42423-20010

KZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE)

ｱﾘ(ABS)

 2
42423-20010

KZN185,RZN185..SSR,SSRV,SSRX

 1
42423B - RETAINER, REAR AXLE BEARING, INNER LH
42423-20010

KZN185..SSRX..TDI;KZN185,RZN185..SSRG;KDN185,RZN180,VZN18#

 2
42423-20010

KZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE)

ｱﾘ(ABS)

 2
42423-20010

KZN185,RZN185..SSR,SSRV,SSRX

 1
42423B - RETAINER, REAR AXLE BEARING, INNER LH
42423-20010

KZN185..SSRX..TDI;KZN185,RZN185..SSRG;KDN185,RZN180,VZN18#

 2
42423-20010

KZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE)

ｱﾘ(ABS)

 2
42423-20010

KZN185,RZN185..SSR,SSRV,SSRX

 1
42424A - RING, O (FOR BEARING RETAINER SET)
90301-88077

KDN185,KZN185,RZN18#,VZN18#

 2
42431 - DISC, REAR
42431-35110

KZN185,RZN18#,VZN18#

 2
42441A - DEFLECTOR, BRAKE DRUM OIL RH
42441-35020

KDN185,KZN185,RZN18#,VZN18#

 1
42441B - DEFLECTOR, BRAKE DRUM OIL LH
42441-35020

KDN185,KZN185,RZN18#,VZN18#

 1
42443A - GASKET, BRAKE DRUM OIL DEFLECTOR, RH
42443-55020

KDN185,KZN185,RZN18#,VZN18#

 1
42443B - GASKET, BRAKE DRUM OIL DEFLECTOR, LH
42443-55020

KDN185,KZN185,RZN18#,VZN18#

 1
42444R - GASKET, BRAKE DRUM (FOR REAR AXLE)
42444-35050

KDN185,KZN185,RZN18#,VZN18#

 2
43517 - ROTOR, SKID CONTROL, REAR
43517-35010

KDN185,KZN185,RZN18#,VZN18#

 2
Common parts
90179-10067
