KZN185W-GAMGT (1995)

Toyota Hilux Surf

Production Nov 1995 - Aug 1997
Engine 1KZTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-0008)KZN185..5F

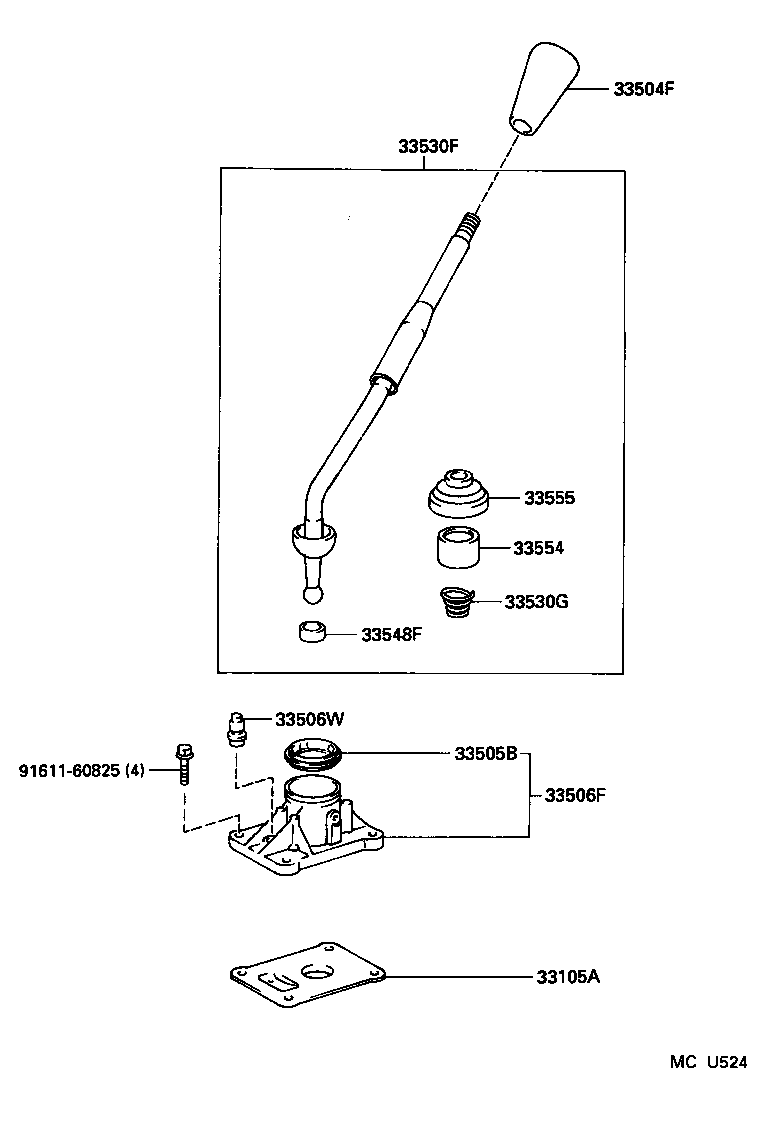

Click highlighted areas on diagram

diagram 33105A 33504F 33505B 33506F 33506W 33530F 33530G 33548F 33554 33555 9161160825
Part # Description Qty Price
33105A - DEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)
33144-35030

KZN185..5F

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-20100C0

KZN185,RZN185..5F..(SSR,SSRV,SSRX)

BLACK,TRIM1#

 1
33504-20120C0

KZN185..5F..SSRG

BLACK,TRIM1#

 1
33505B - SEAT SUB-ASSY, SHIFT LEVER
33505-35030

KZN185..5F

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-35110

KZN185..5F

 1
33506W - PLUG, BREATHER (FOR SHIFT LEVER RETAINER)
90930-03075

KZN185..5F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-35280

KZN185..5F

 1
33530G - SPRING, CONICAL (FOR SHIFT LEVER)
90502-26005

KZN185..5F

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-31010

KZN185,RZN185..5F

 1
33554 - CAP, SHIFT LEVER
33554-30012

KZN185,RZN185..5F

 1
33555 - BOOT, SHIFT LEVER
33555-60030

KZN185,RZN185..5F

 1
Common parts
91611-60825
