KZN185W-GAMGT (1995)

Toyota Hilux Surf

Production Nov 1995 - Aug 1997
Engine 1KZTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-0008)5F

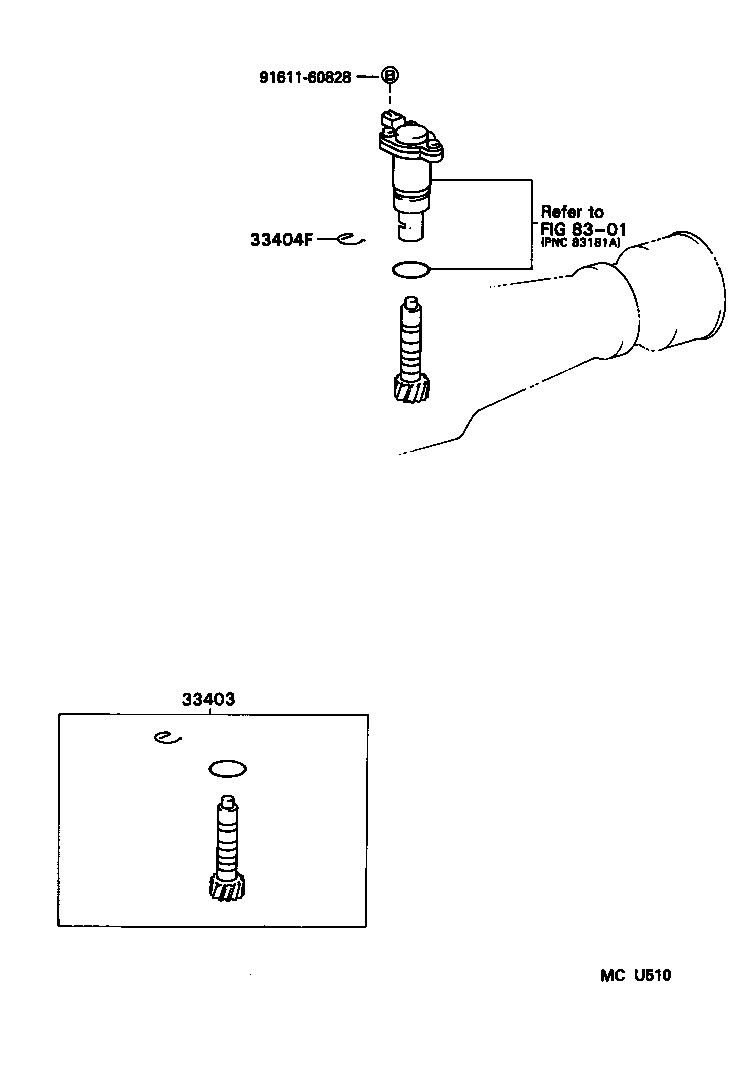

Click highlighted areas on diagram

R151F,W59

diagram 33403 33404F 8301 9161160828
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-39525

KZN185..5F

歯数=30,ﾏｰｸ 30:11

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

KZN185,RZN185..5F

 1
Common parts
91611-60828
Linked diagrams
8301
