KZN185G-GKPXT (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 1KZTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-0008)TDE

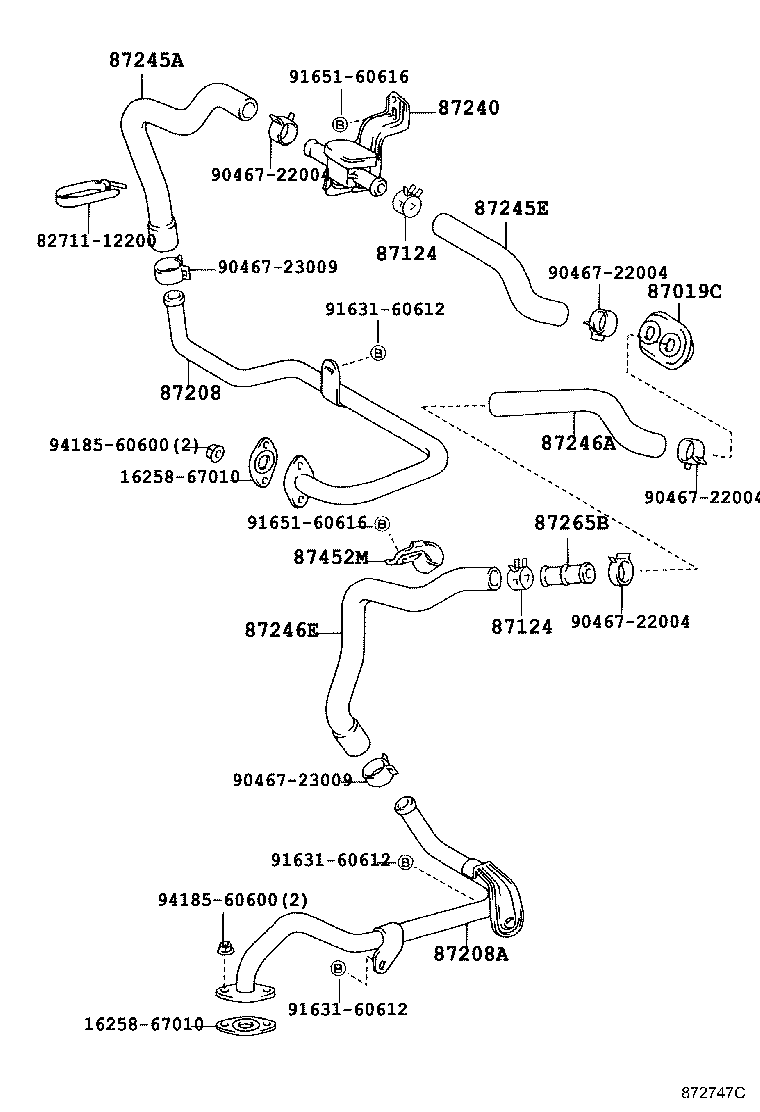

Click highlighted areas on diagram

ﾅｼ(ﾘﾔﾋ-ﾀ)

diagram 1625867010 1625867010 8271112200 87019C 87124 87124 87208 87208A 87240 87245A 87245E 87246A 87246E 87265B 87452M 9046722004 9046722004 9046722004 9046722004 9046723009 9046723009 9163160612 9163160612 9163160612 9165160616 9165160616 9418560600 9418560600
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01405

KZN185,RZN18#,VZN18#..EFI,TDE

 1
87124 - CLAMP, HEATER
87124-28030

KZN185,RZN185

 2
87124 - CLAMP, HEATER
87124-28030

KZN185,RZN185

 2
87208 - PIPE SUB-ASSY, HEATER WATER
87208-35250

KZN185

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-35260

KZN185

 1
87240 - VALVE ASSY, HEATER WATER
87240-35030

KZN185,RZN18#..EFI,TDE

 1
87245A - HOSE, HEATER WATER, INLET A
87245-35360

KZN185..(SSR,SSRV,SSRX)..TDE

 1
87245-35540

KZN185..(SSR,SSRV,SSRX)..TDE

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-35520

KZN185,RZN18#..EFI,TDE

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-35370

KZN185..TDE

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-35570

KZN185..(SSR,SSRV,SSRX)..TDE

 1
87245-35550

KZN185..(SSR,SSRV,SSRX)..TDE

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87265B - CONNECTOR, HEATER WATER HOSE, NO.2
87265-35190

KZN185..TDE

 1
87452M - BRACKET, REAR HEATER PIPE, NO.4
87452-35020

KZN185..TDE

 1
Common parts
16258-67010
82711-12200
90467-22004
90467-23009
91631-60612
91651-60616
94185-60600

(9511-0008)TDE

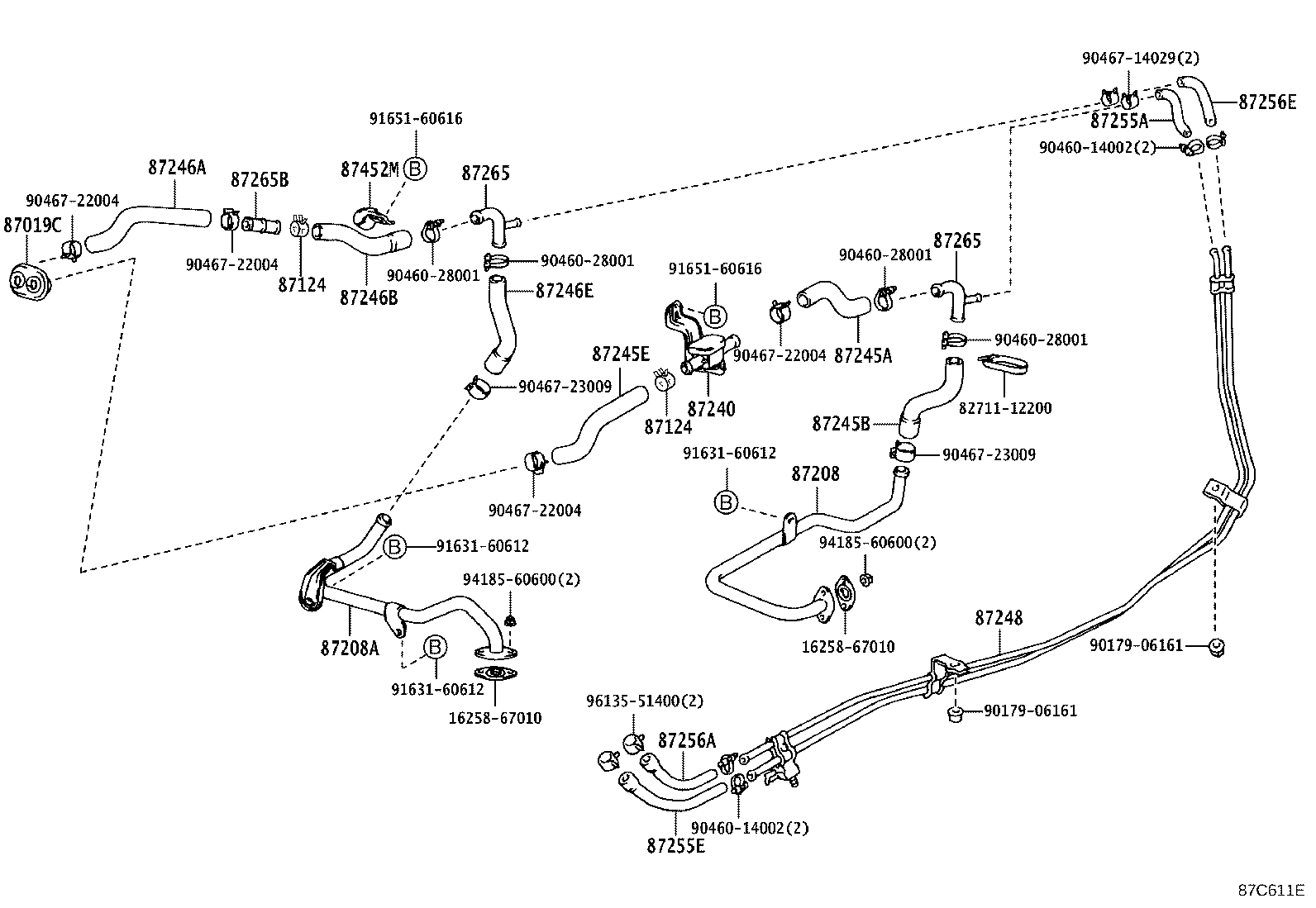

Click highlighted areas on diagram

ｱﾘ(ﾘﾔﾋ-ﾀ)

diagram 1625867010 1625867010 8271112200 87019C 87124 87124 87208 87208A 87240 87245A 87245B 87245E 87246A 87246B 87246E 87248 87255A 87255E 87256A 87256E 87265 87265 87265B 87452M 9017906161 9017906161 9046014002 9046014002 9046028001 9046028001 9046028001 9046028001 9046714029 9046722004 9046722004 9046722004 9046722004 9046723009 9046723009 9163160612 9163160612 9163160612 9165160616 9165160616 9418560600 9418560600 9613551400
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01405

KZN185,RZN18#,VZN18#..EFI,TDE

 1
87124 - CLAMP, HEATER
87124-28030

KZN185,RZN185

 2
87124 - CLAMP, HEATER
87124-28030

KZN185,RZN185

 2
87208 - PIPE SUB-ASSY, HEATER WATER
87208-35250

KZN185

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-35260

KZN185

 1
87240 - VALVE ASSY, HEATER WATER
87240-35030

KZN185,RZN18#..EFI,TDE

 1
87245A - HOSE, HEATER WATER, INLET A
87245-35360

KZN185..(SSR,SSRV,SSRX)..TDE

 1
87245-35540

KZN185..(SSR,SSRV,SSRX)..TDE

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-35530

KZN185..(SSR,SSRV,SSRX)..TDE

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-35520

KZN185,RZN18#..EFI,TDE

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-35370

KZN185..TDE

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-35560

KZN185..TDE

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-35570

KZN185..(SSR,SSRV,SSRX)..TDE

 1
87245-35550

KZN185..(SSR,SSRV,SSRX)..TDE

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87248 - PIPE SUB-ASSY, WATER
87248-35040

KZN185..(SSR,SSRV,SSRX)..TDE

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-35470

KZN185..(SSR,SSRV,SSRX)..TDE

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-35451

KDN185,KZN185,RZN18#,VZN18#

 1
87245-35450

KZN185,RZN185,VZN185

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-35461

KDN185,KZN185,RZN18#,VZN18#

 1
87245-35460

KZN185,RZN185,VZN185

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-35480

KZN185..TDE;KZN185..WIB..4FC..SSRX..TDI

ｱﾘ(ﾘﾔﾋ-ﾀ),NO.1

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-35250

KZN185..(SSR,SSRV,SSRX)..TDE

ｱﾘ(ﾘﾔﾋ-ﾀ)

 2
87265 - CONNECTOR, HEATER WATER HOSE
87265-35250

KZN185..(SSR,SSRV,SSRX)..TDE

ｱﾘ(ﾘﾔﾋ-ﾀ)

 2
87265B - CONNECTOR, HEATER WATER HOSE, NO.2
87265-35190

KZN185..TDE

 1
87452M - BRACKET, REAR HEATER PIPE, NO.4
87452-35020

KZN185..TDE

 1
Common parts
16258-67010
82711-12200
90179-06161
90460-14002
90460-28001
90467-14029
90467-22004
90467-23009
91631-60612
91651-60616
94185-60600
96135-51400
