KZN185G-GKPXT (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 1KZTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-9607)

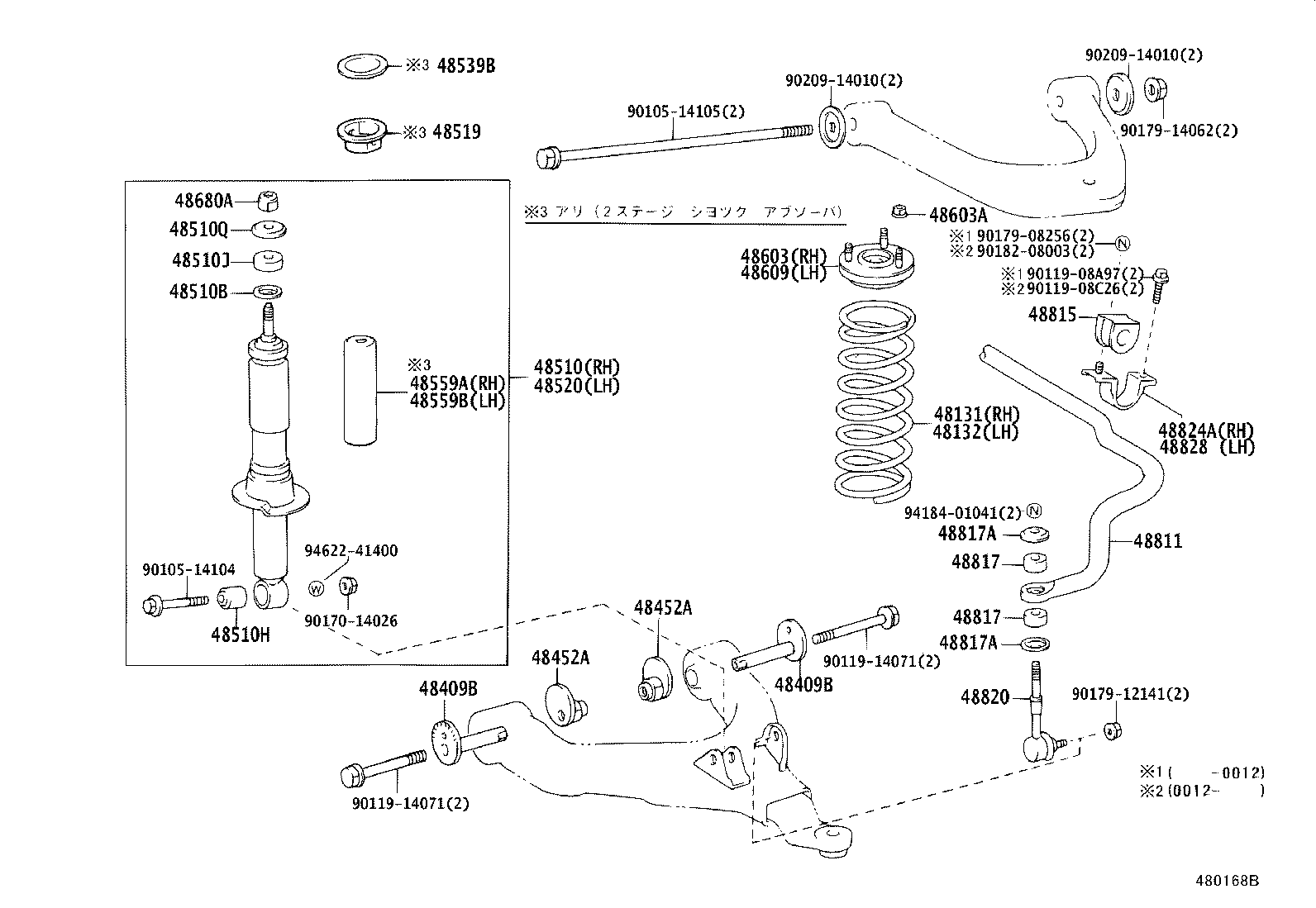

Click highlighted areas on diagram

diagram 48131 48132 48409B 48409B 48452A 48452A 48510 48510B 48510H 48510J 48510Q 48519 48520 48539B 48559A 48559B 48603 48603A 48609 48680A 48811 48815 48817 48817 48817A 48817A 48820 48824A 48828 9010514104 9010514105 9011908A97 9011908C26 9011914071 9011914071 9017014026 9017908256 9017912141 9017914062 9018208003 9020914010 9020914010 9418401041 9462241400
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-35210

VZN185;KZN185..5F..(SSRG,SSRV);KZN185..4FC..(SSRV,SSRX)

 1
48131-35130

KZN185..5F..SSRV;KZN185..4FC..(SSRV,SSRX)

ｱﾘ(ﾘﾔﾋ-ﾀ & ﾌﾛﾝﾄﾊﾞﾝﾊﾟｶﾞ-ﾄﾞ)

 1
48131-35210

KZN185..NOB..SSRX

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
48131-35210

KZN185..SSR

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
48131-35210

VZN185;KZN185..5F..SSRG;KZN185..NOB..SSRX;KZN185..4FC..SSRV

 1
48131-35270

KZN185

 1
48132 - SPRING, FRONT COIL, LH
48131-35210

VZN185;KZN185..SSR,SSRX;KZN185..5F..SSRV

 1
48131-35130

KZN185..5F..SSRV;KZN185..NOB..SSRX

ｱﾘ(ﾘﾔﾋ-ﾀ OR ﾌﾛﾝﾄﾊﾞﾝﾊﾟｶﾞ-ﾄﾞ)

 1
48131-35210

VZN185;KZN185..4FC..SSRX;KZN185..5F..(SSR,SSRV)

 1
48131-35280

KZN185

 1
48409B - CAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST
48409-35050

KDN185,KZN185,RZN18#,VZN18#

 4
48409B - CAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST
48409-35050

KDN185,KZN185,RZN18#,VZN18#

 4
48452A - PLATE, FRONT SUSPENSION TOE ADJUST, NO.2
48452-35020

KDN185,KZN185,RZN18#,VZN18#

 4
48452A - PLATE, FRONT SUSPENSION TOE ADJUST, NO.2
48452-35020

KDN185,KZN185,RZN18#,VZN18#

 4
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-39415

KZN185,RZN185..SSRX

ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ),ﾏｰｸ 48511−3D030

 1
48510-39406

KZN185,RZN185..SSR,SSRV,SSRX

ﾏｰｸ 48510−35050

 1
48510-39416

KZN185,RZN185..SSRX

ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ),ﾏｰｸ 48511−3D030

 1
48510-39725

KZN185,RZN185,VZN185..SSRG,SSRX

ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ),ﾏｰｸ 48511−3D140

 1
48510-39715

KZN185,RZN185,VZN185..SSR,SSRV,SSRX

ﾏｰｸ 48510−35140

 1
48510-39405

KZN185,RZN185..SSR,SSRV,SSRX

ﾏｰｸ 48510−35050

 1
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02159

KDN185,KZN185,RZN18#,VZN18#

 2
48510H - BUSH(FOR FRONT SHOCK ABSORBER)
90389-14048

KZN185,RZN18#,VZN18#

 2
48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1
90948-01056

KDN185,KZN185,RZN18#,VZN18#

 2
48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
90948-02161

KDN185,KZN185,RZN18#,VZN18#

 2
48519 - BRACKET, ACTUATOR SUPPORT, FRONT
48519-35050

KZN185,RZN185,VZN185..SSRG,SSRX

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-39415

KZN185,RZN185..SSRX

ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ),ﾏｰｸ 48511−3D030

 1
48510-39405

KZN185,RZN185..SSR,SSRV,SSRX

ﾏｰｸ 48510−35050

 1
48510-39715

KZN185,RZN185,VZN185..SSR,SSRV,SSRX

ﾏｰｸ 48510−35140

 1
48510-39406

KZN185,RZN185..SSR,SSRV,SSRX

ﾏｰｸ 48510−35050

 1
48510-39416

KZN185,RZN185..SSRX

ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ),ﾏｰｸ 48511−3D030

 1
48510-39725

KZN185,RZN185,VZN185..SSRG,SSRX

ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ),ﾏｰｸ 48511−3D140

 1
48539B - BRACKET, ACTUATOR SUPPORT, FRONT
48518-35050

KZN185,RZN185,VZN185..SSRG,SSRX

 2
48559A - COVER, FRONT SHOCK ABSORBER DUST, RH NO.1
48559-30020

KZN185,RZN185,VZN185..SSRG,SSRX

 1
48559B - COVER, FRONT SHOCK ABSORBER DUST, LH NO.1
48559-30020

KZN185,RZN185,VZN185..SSRG,SSRX

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-35030

KDN185,KZN185,RZN18#,VZN18#

 1
48603A - NUT(FOR FRONT SUSPENSION SUPPORT)
90179-10212

KDN185,KZN185,RZN18#,VZN18#

 6
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-35030

KDN185,KZN185,RZN18#,VZN18#

 1
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94184-01241

KDN185,KZN185,RZN18#,VZN18#

 2
48811 - BAR, STABILIZER, FRONT
48811-35400

KDN185,KZN185,RZN18#,VZN18#

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-35100

KDN185,KZN185,RZN18#,VZN18#

 2
48817 - CUSHION, FRONT STABILIZER
90948-01003

KDN185,KZN185,RZN18#,VZN18#

 4
48817 - CUSHION, FRONT STABILIZER
90948-01003

KDN185,KZN185,RZN18#,VZN18#

 4
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02131

KDN185,KZN185,RZN18#,VZN18#

 4
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02131

KDN185,KZN185,RZN18#,VZN18#

 4
48820 - LINK ASSY, FRONT STABILIZER
48820-35030

KDN185,KZN185,RZN18#,VZN18#

 2
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-35120

KDN185,KZN185,RZN18#,VZN18#

 1
48828 - BRACKET, FRONT STABILIZER, NO.2 LH
48829-35090

KDN185,KZN185,RZN18#,VZN18#

 1
Common parts
90105-14104
90105-14105
90119-08A97
90119-08C26
90119-14071
90170-14026
90179-08256
90179-12141
90179-14062
90182-08003
90209-14010
94184-01041
94622-41400
