KZN185G-GKPXT (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 1KZTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-0008)1KZTE

Click highlighted areas on diagram

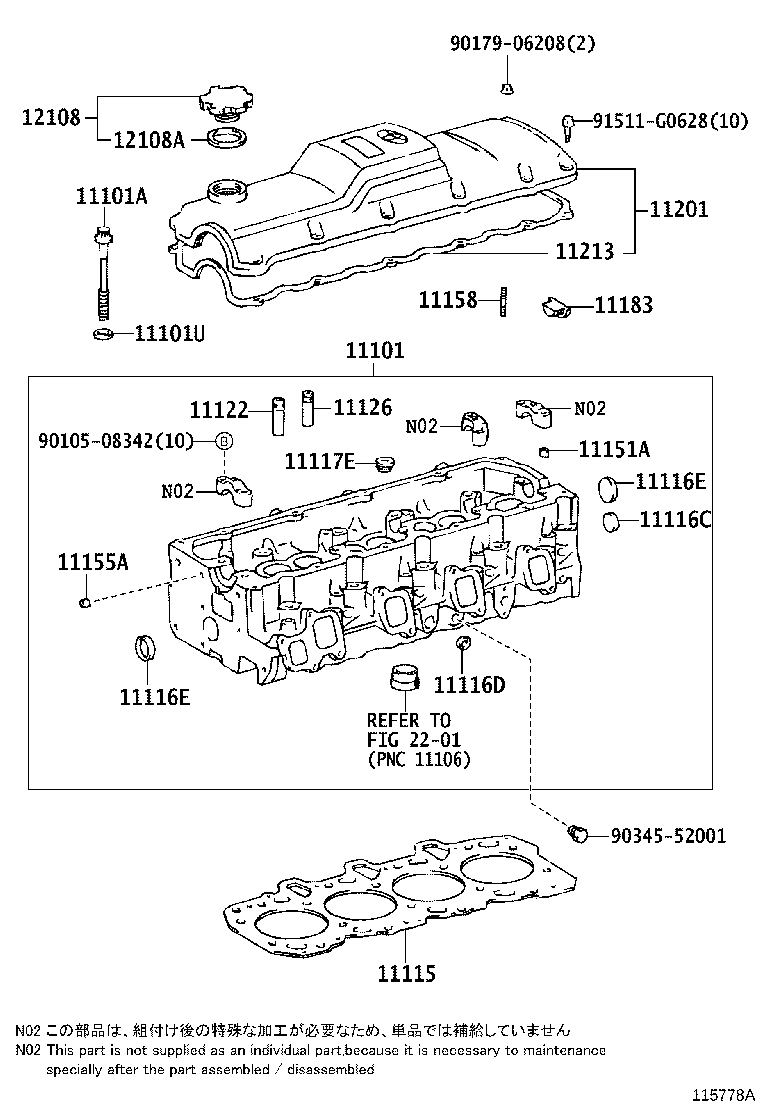

diagram 11101 11101A 11101U 11115 11116C 11116D 11116E 11116E 11117E 11122 11126 11151A 11155A 11158 11183 11201 11213 12108 12108A 2201 9010508342 9017906208 9034552001 91511G0628
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-69126

1KZTE..KZN185

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02112

1KZTE..KZN185

 18
11101U - SPACER(FOR CYLINDER HEAD SET BOLT)
90560-13023

1K#..KDN185,KZN185

 18
11115 - GASKET, CYLINDER HEAD
11115-6704003

1KZTE..KZN185

MARK 3

 1
11115-6704001

1KZTE..KZN185

MARK 1,ﾏｰｸ 1

 1
11115-6704005

1KZTE..KZN185

MARK 5,ﾏｰｸ 5

 1
11116C - PLUG, TIGHT, NO.3
96411-63000

1K#..KDN185,KZN185

 1
11116D - PLUG, TIGHT, NO.4
96411-62000

1KZTE..KZN185

 1
11116E - PLUG, TIGHT, NO.5
96411-63500

1K#..KDN185,KZN185

 2
11116E - PLUG, TIGHT, NO.5
96411-63500

1K#..KDN185,KZN185

 2
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-22008

1KZTE..KZN185

 4
11122 - BUSH, INTAKE VALVE GUIDE
11122-67020

1KZTE..KZN185

STD

 4
11123-67020

1KZTE..KZN185

O/S 0.05

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11123-67020

1KZTE..KZN185

O/S 0.05

 4
11122-67020

1KZTE..KZN185

STD

 4
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021

1KZTE..KZN185

長さ=8,外径=11

 5
11155A - PIN, RING W/HEAD
90253-10004

1KZTE..KZN185

 2
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-06149

1K#..KDN185,KZN185

ﾈｼﾞ部長さ=9 & 16,長さ=37

 2
11183 - PLUG, SEMICIRCULAR
11183-54020

1KZTE..KZN185

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-67020

1KZTE..KZN185..TDE

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-67010

1KZTE..KZN185

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010

1KZTE..KZN185

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37004

1KZTE..KZN185

 1
Common parts
90105-08342
90179-06208
90345-52001
91511-G0628
Linked diagrams
2201
