KZN185G-GKMST (1995)
Toyota Hilux Surf

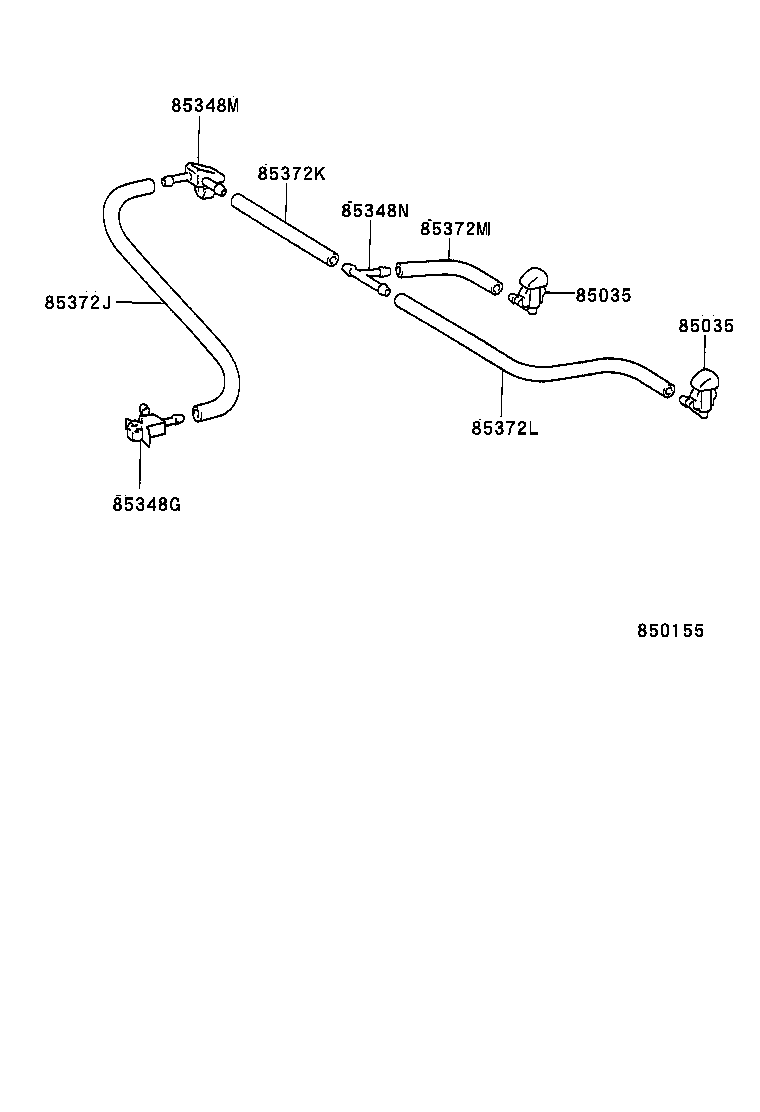

ILLUST NO. 1 OF 2(9511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-35010 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-35010 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85377-34010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85377-32220 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85348-12250 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
KDN185,KZN185,RZN18#,VZN18# *H,L=350 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
KDN185,KZN185,RZN18#,VZN18# *H,L=250 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-33080 |
KDN185,KZN185,RZN18#,VZN18# *H,L=170 |
1 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33080 |
KDN185,KZN185,RZN18#,VZN18# *H,L=720 |
1 | ||

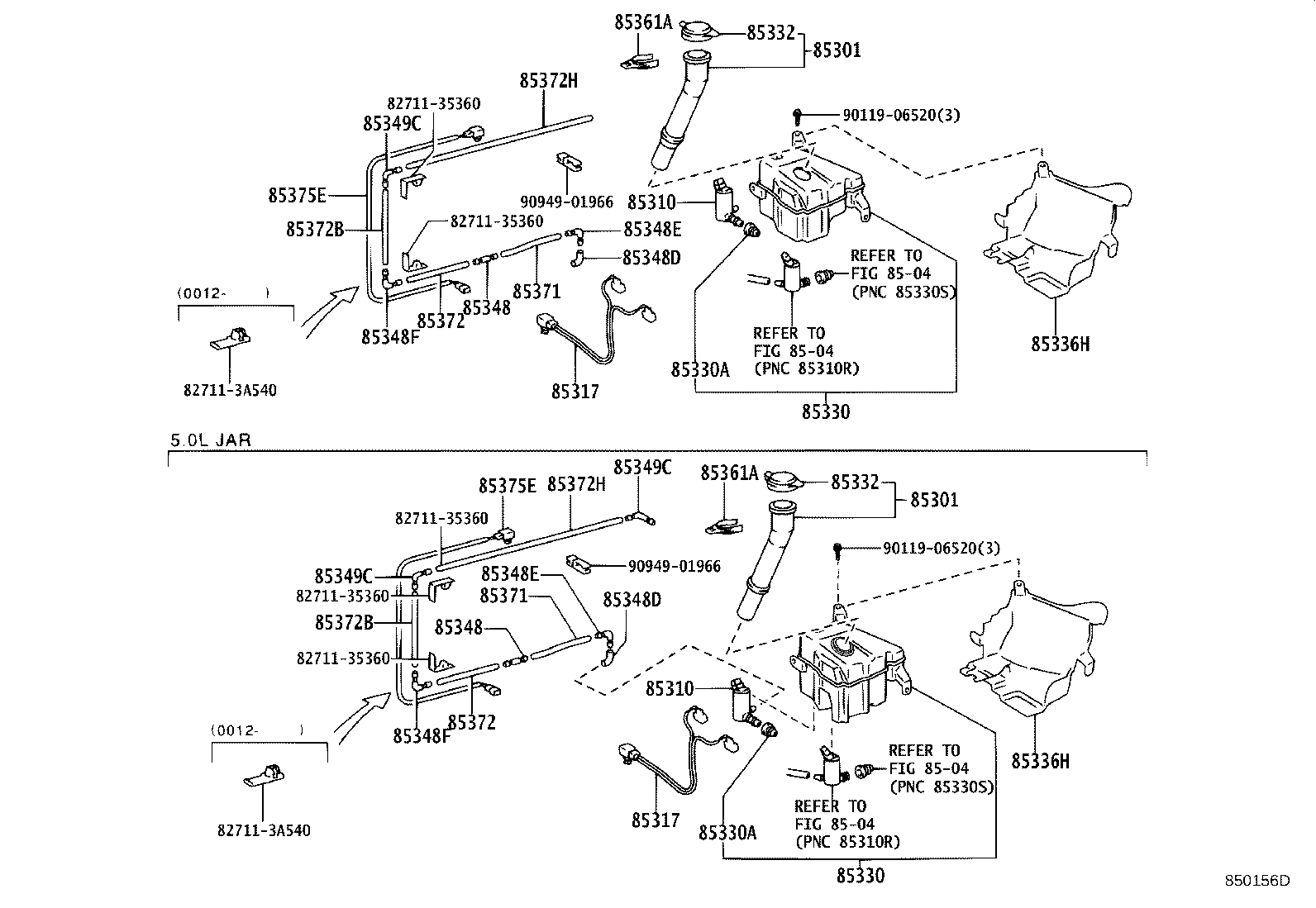

ILLUST NO. 2 OF 2(9511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-35020 |
KDN185,KZN185,RZN18#,VZN18# 5.0L ﾀﾝｸ ﾖｳ |
1 | ||
| 85301-35010 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX 2.5L ﾀﾝｸ ﾖｳ |
1 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-35020 |
KDN185,KZN185,RZN18#,VZN18# 5.0L ﾀﾝｸ ﾖｳ |
1 | ||
| 85301-35010 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX 2.5L ﾀﾝｸ ﾖｳ |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-35050 |
KZN185,RZN185,VZN185 2.5L ﾀﾝｸ ﾖｳ |
1 | ||
| 85330-35070 |
KDN185,KZN185,RZN18#,VZN18# 5.0L ﾀﾝｸ ﾖｳ |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-35050 |
KZN185,RZN185,VZN185 2.5L ﾀﾝｸ ﾖｳ |
1 | ||
| 85330-35070 |
KDN185,KZN185,RZN18#,VZN18# 5.0L ﾀﾝｸ ﾖｳ |
1 | ||
| 85317 - WIRING ASSY, WASHER | ||||
| 85317-35240 |
KZN185..WIB..4FC..SSRX..TDI;KZN185,RZN185,VZN185..(SSR,SSRV,SSRX)..(EFI,TDE) 2.5L:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 85317-35260 |
KDN185,KZN185,RZN18#,VZN18# 5.0L ﾀﾝｸ ﾖｳ |
1 | ||
| 85317 - WIRING ASSY, WASHER | ||||
| 85317-35240 |
KZN185..WIB..4FC..SSRX..TDI;KZN185,RZN185,VZN185..(SSR,SSRV,SSRX)..(EFI,TDE) 2.5L:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 85317-35260 |
KDN185,KZN185,RZN18#,VZN18# 5.0L ﾀﾝｸ ﾖｳ |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-35260 |
KZN185,RZN185,VZN185 5.0L |
1 | ||
| 85315-35240 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX 2.5L |
1 | ||
| 85315-35241 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX 2.5L |
1 | ||
| 85315-35261 |
KDN185,KZN185,RZN18#,VZN18# 5.0L |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-35260 |
KZN185,RZN185,VZN185 5.0L |
1 | ||
| 85315-35240 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX 2.5L |
1 | ||
| 85315-35241 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX 2.5L |
1 | ||
| 85315-35261 |
KDN185,KZN185,RZN18#,VZN18# 5.0L |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-33120 |
KZN185,RZN185,VZN185 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-33120 |
KZN185,RZN185,VZN185 |
1 | ||
| 85336H - COVER, WINDSHIELD WASHER JAR UNDER | ||||
| 85336-35240 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX 2.5L ﾀﾝｸ ﾖｳ |
1 | ||
| 85336-35260 |
KDN185,KZN185,RZN18#,VZN18# 5.0L ﾀﾝｸ ﾖｳ |
1 | ||
| 85336H - COVER, WINDSHIELD WASHER JAR UNDER | ||||
| 85336-35240 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX 2.5L ﾀﾝｸ ﾖｳ |
1 | ||
| 85336-35260 |
KDN185,KZN185,RZN18#,VZN18# 5.0L ﾀﾝｸ ﾖｳ |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX 2.5L ﾀﾝｸ ﾖｳ |
1 | ||
| 85355-16192 |
KDN185,KZN185,RZN18#,VZN18# 5.0L ﾀﾝｸ ﾖｳ |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX 2.5L ﾀﾝｸ ﾖｳ |
1 | ||
| 85355-16192 |
KDN185,KZN185,RZN18#,VZN18# 5.0L ﾀﾝｸ ﾖｳ |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
KDN185,KZN185,RZN18#,VZN18# 5.0L ﾀﾝｸ ﾖｳ |
1 | ||
| 85355-14481 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX 2.5L ﾀﾝｸ ﾖｳ |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
KDN185,KZN185,RZN18#,VZN18# 5.0L ﾀﾝｸ ﾖｳ |
1 | ||
| 85355-14481 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX 2.5L ﾀﾝｸ ﾖｳ |
1 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| 85355-20200 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| 85355-20200 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85355-20200 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85355-20200 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85355-20200 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85361-35060 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85361-35060 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
RZN180..SPR;KZN185,RZN185,VZN18# *H,L=140,5.0L ﾀﾝｸ ﾖｳ |
1 | ||
| 90099-33080 |
RZN180..SPR;KZN185,RZN185,VZN18#..SPR,SSR,SSRV,SSRX *H,L=150,2.5L ﾀﾝｸ ﾖｳ |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
RZN180..SPR;KZN185,RZN185,VZN18# *H,L=140,5.0L ﾀﾝｸ ﾖｳ |
1 | ||
| 90099-33080 |
RZN180..SPR;KZN185,RZN185,VZN18#..SPR,SSR,SSRV,SSRX *H,L=150,2.5L ﾀﾝｸ ﾖｳ |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
KDN185,KZN185,RZN18#,VZN18# *H,L=120 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
KDN185,KZN185,RZN18#,VZN18# *H,L=120 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
KDN185,KZN185,RZN18#,VZN18# *H,L=170 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
KDN185,KZN185,RZN18#,VZN18# *H,L=170 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
KDN185,KZN185,RZN18#,VZN18# *H,L=750 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
KDN185,KZN185,RZN18#,VZN18# *H,L=750 |
1 | ||
| 85375E - WIRING, WASHER | ||||
| 85375-35200 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85375E - WIRING, WASHER | ||||
| 85375-35200 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| Common parts | ||||
| 82711-35360 | ||||
| 82711-3A540 | ||||
| 90119-06520 | ||||
| 90949-01966 | ||||
| Linked diagrams | ||||
| 8504 | ||||
