KDN215W-GKPXY (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 1KDFTV
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

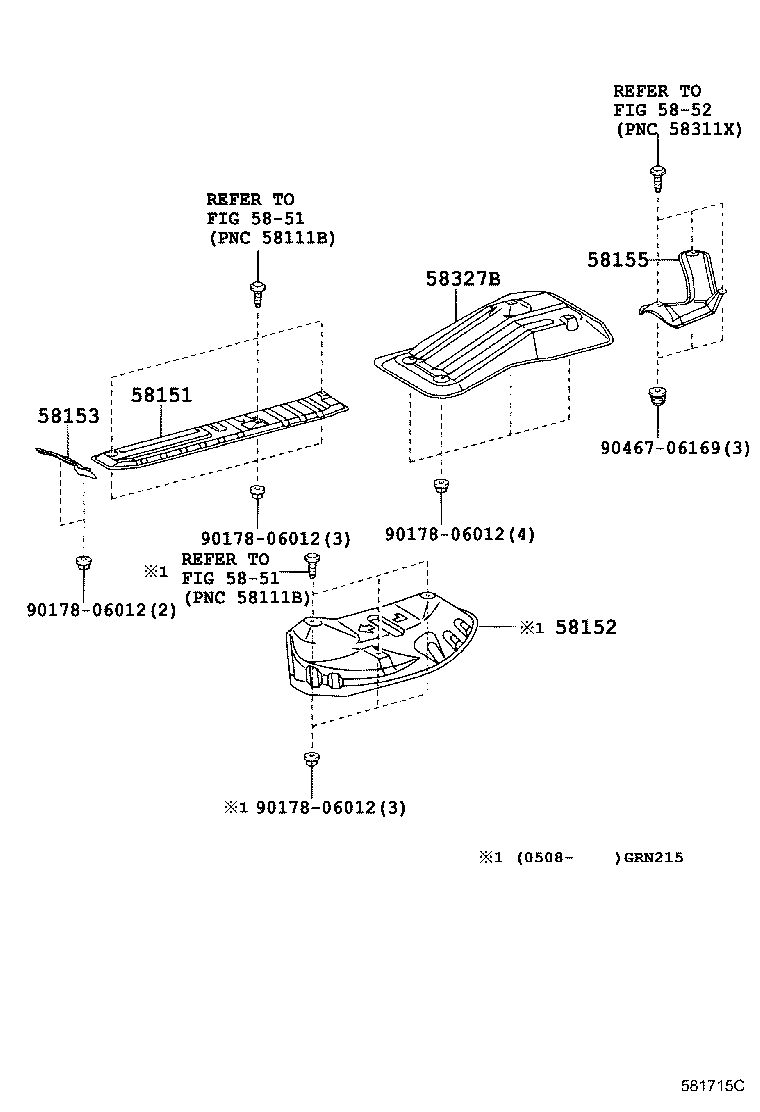

Click highlighted areas on diagram

diagram 58151 58152 58153 58155 58327B 5851 5851 5852 9017806012 9017806012 9017806012 9017806012 9046706169
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-35120

KDN215,TRN21#,VZN21#

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-35130

KDN215,TRN21#,VZN21#

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-35020

KDN215,TRN21#,VZN21#

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-35050

KDN215,TRN21#,VZN21#

 1
Common parts
90178-06012
90467-06169
Linked diagrams
5851
5852
