KDN215W-GKPGY (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 1KDFTV
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

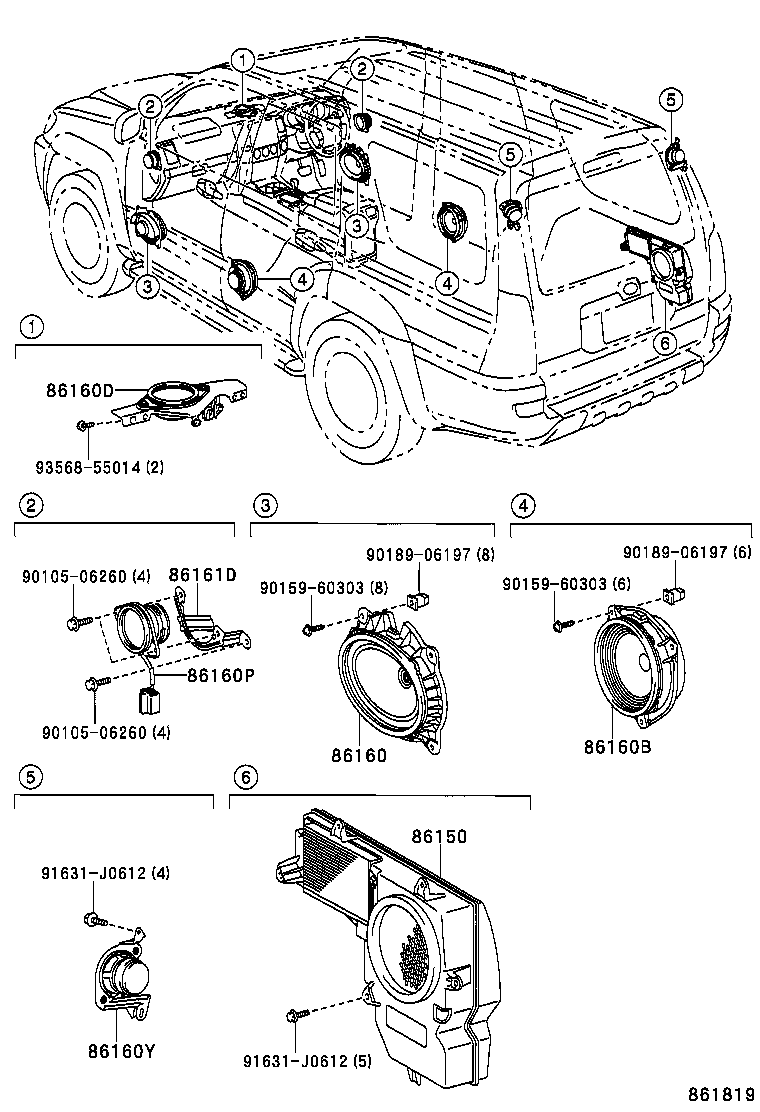

Click highlighted areas on diagram

diagram 86150 86160 86160B 86160D 86160P 86160Y 86161D 9010506260 9010506260 9015960303 9015960303 9018906197 9018906197 91631J0612 91631J0612 9356855014
Part # Description Qty Price
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-0W060

KDN215,RZN21#,VZN21#

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ)

 1
86150-0W060

KDN215,RZN21#,VZN21#

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV)

 1
86150-0W061

KDN215,TRN215,VZN215..SSRG

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV)

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-35190

KDN215,TRN21#,VZN21#

 2
86160-AA382

KDN215,TRN215,VZN215..SSRG

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV)

 2
86160-AA382

KDN215,RZN21#,VZN21#

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ)

 2
86160B - SPEAKER ASSY, REAR
86160-22890

KDN215,TRN21#,VZN21#

 2
86160-0W620

KDN215,TRN215,VZN215..SSRG

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV)

 2
86160-0W620

KDN215,RZN21#,VZN21#

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ)

 2
86160D - SPEAKER ASSY, STEREO COMPONENT, FRONT
86160-0W650

KDN215,RZN21#,VZN21#

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ)

 1
86160-0W650

KDN215,TRN215,VZN215..SSRG

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV)

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-0W690

KDN215,RZN21#,VZN21#

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ)

 2
86160-0W690

KDN215,TRN215,VZN215..SSRG

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV)

 2
86160-35180

KDN215,TRN21#,VZN21#

 2
86160Y - SPEAKER ASSY, REAR NO.2
86160-0W680

KDN215,RZN21#,VZN21#

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),左側

 1
86160-0W670

KDN215,RZN21#,VZN21#

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),右側

 1
86160-0W670

KDN215,TRN215,VZN215..SSRG

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),右側

 1
86160-0W680

KDN215,TRN215,VZN215..SSRG

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),左側

 1
86161D - BRACKET, SPEAKER MOUNTING, NO.1
86161-35010

KDN215,TRN21#,VZN21#

右側

 1
86161-35020

KDN215,TRN21#,VZN21#

左側

 1
Common parts
90105-06260
90159-60303
90189-06197
91631-J0612
93568-55014
