KDN215W-GKPGY (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 1KDFTV
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

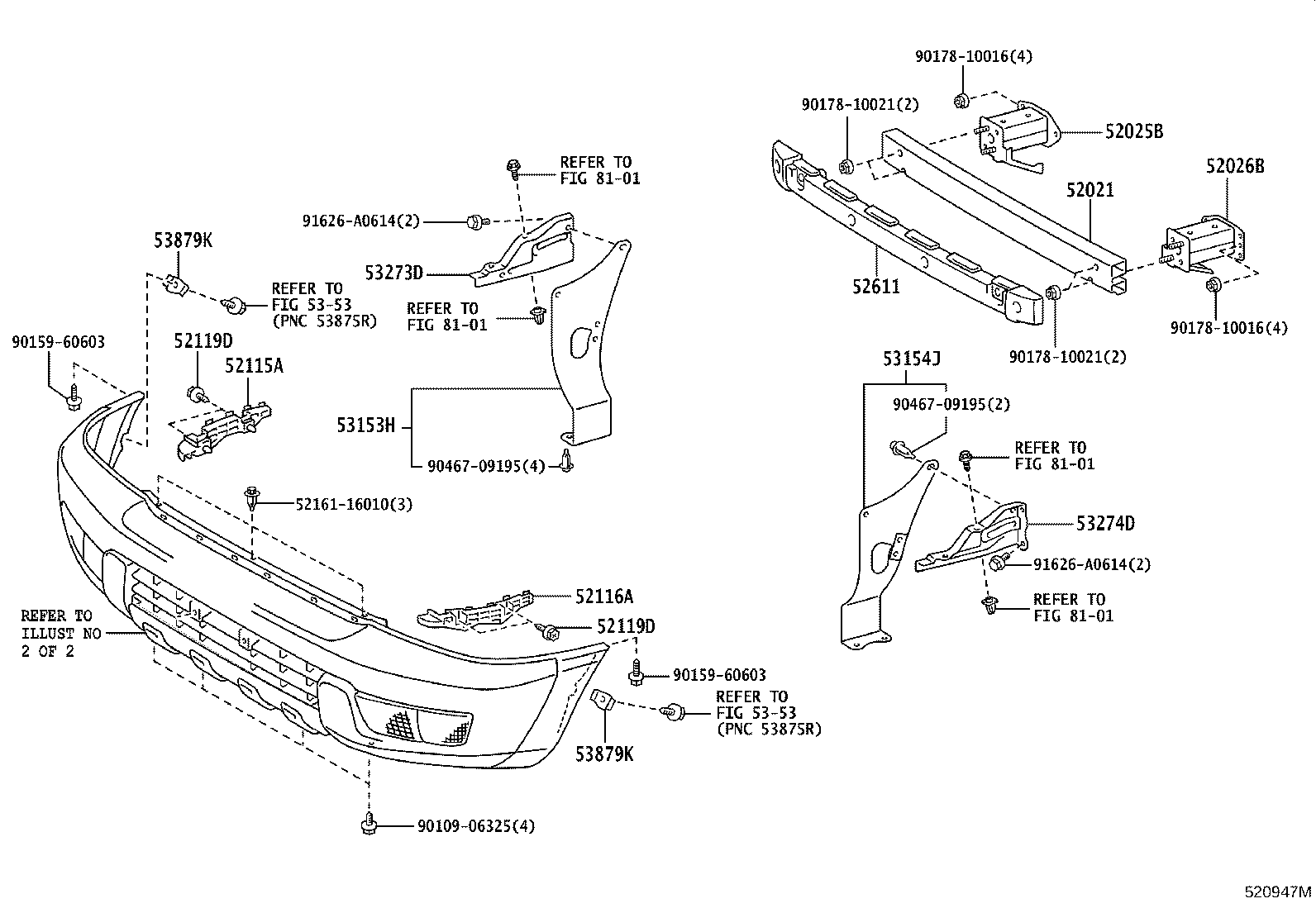

ILLUST NO. 1 OF 2(0211-0508)

Click highlighted areas on diagram

diagram 52021 52025B 52026B 52115A 52116A 52119D 52119D 5216116010 52611 53153H 53154J 53273D 53274D 5353 5353 53879K 53879K 8101 8101 8101 8101 9010906325 9015960603 9015960603 9017810016 9017810016 9017810021 9017810021 9046709195 9046709195 91626A0614 91626A0614
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-35040

KDN215,RZN21#,TRN21#,VZN21#

 1
52025B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH
52025-35050

KDN215,RZN21#,TRN21#,VZN21#

 1
52026B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH
52026-35050

KDN215,RZN21#,TRN21#,VZN21#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-35100

KDN215,RZN21#,TRN21#,VZN21#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-35090

KDN215,RZN21#,TRN21#,VZN21#

 1
52119D - SCREW, NO.1
90159-60431

KDN215,RZN21#,TRN21#,VZN21#

 4
52119D - SCREW, NO.1
90159-60431

KDN215,RZN21#,TRN21#,VZN21#

 4
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-35010

KDN215,RZN21#,TRN21#,VZN21#

 1
53153H - GUIDE, RADIATOR GRILLE SIDE AIR, RH
53153-35010

KDN215,TRN21#,VZN21#

 1
53154J - GUIDE, RADIATOR GRILLE SIDE AIR, LH
53154-35030

KDN215,TRN21#,VZN21#

 1
53273D - BRACKET, FRONT BUMPER ARM MOUNTING, RH
53273-35070

KDN215,RZN21#,TRN21#,VZN21#

 1
53274D - BRACKET, FRONT BUMPER ARM MOUNTING, LH
53274-35050

KDN215,RZN21#,TRN21#,VZN21#

 1
53879K - RETAINER, FRONT FENDER LINER
53879-58010

KDN215,RZN21#,TRN21#,VZN21#

 2
53879K - RETAINER, FRONT FENDER LINER
53879-58010

KDN215,RZN21#,TRN21#,VZN21#

 2
Common parts
52161-16010
90109-06325
90159-60603
90178-10016
90178-10021
90467-09195
91626-A0614
Linked diagrams
5353
8101

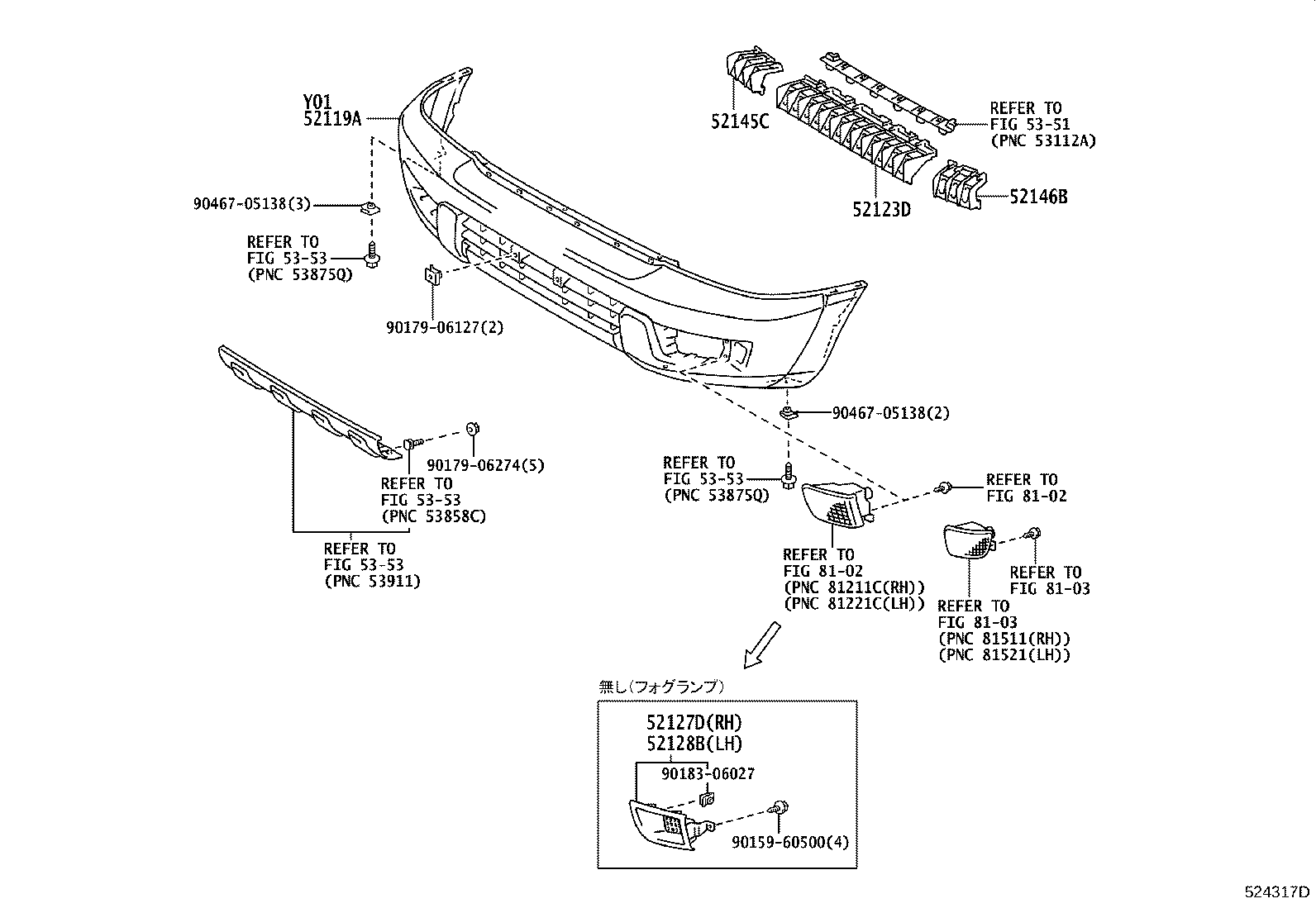

ILLUST NO. 2 OF 2(0211-0508)

Click highlighted areas on diagram

diagram 52119A 52123D 52127D 52128B 52145C 52146B 5351 5353 5353 5353 5353 8102 8102 8103 8103 9015960500 9017906127 9017906274 9018306027 9046705138 9046705138
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-35060B0

KDN215,RZN21#,TRN21#,VZN21#

SILVER ME.,070 ,1D4 ,1E9 ,202 ,587 ,8Q0 ,8R3

 1
52119-35060A0

KDN215,RZN21#,TRN21#,VZN21#

WHITE PEARL CS.,070

 1
52119-35060F0

KDN215,RZN21#,TRN21#,VZN21#

CHAMPAGNE M.M.,587

 1
52119-35060J1

KDN215,RZN21#,TRN21#,VZN21#

GRAYISH BLUE ME.,8R3

 1
52119-35060J0

KDN215,RZN21#,TRN21#,VZN21#

DK.BLUE MC.,8Q0

 1
52119-35060B1

KDN215,RZN21#,TRN21#,VZN21#

DK.GRAY M.M.,1E9

 1
52119-35060C0

KDN215,RZN21#,TRN21#,VZN21#

BLACK,202

 1
52123D - PLATE, FRONT BUMPER REINFORCEMENT
52123-35150

KDN215,RZN21#,TRN21#,VZN21#

 1
52145C - BRACKET, FRONT BUMPER SIDE MOUNTING, RH
52145-35050

KDN215,RZN21#,TRN21#,VZN21#

 1
52146B - BRACKET, FRONT BUMPER SIDE MOUNTING, LH
52146-35050

KDN215,RZN21#,TRN21#,VZN21#

 1
Common parts
90159-60500
90179-06127
90179-06274
90183-06027
90467-05138
Linked diagrams
5351
5353
8102
8103
