KDN185W-GAPXY (2000)
Toyota Hilux Surf
Production
Aug 2000
-
Nov 2002
Engine
1KDFTV
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

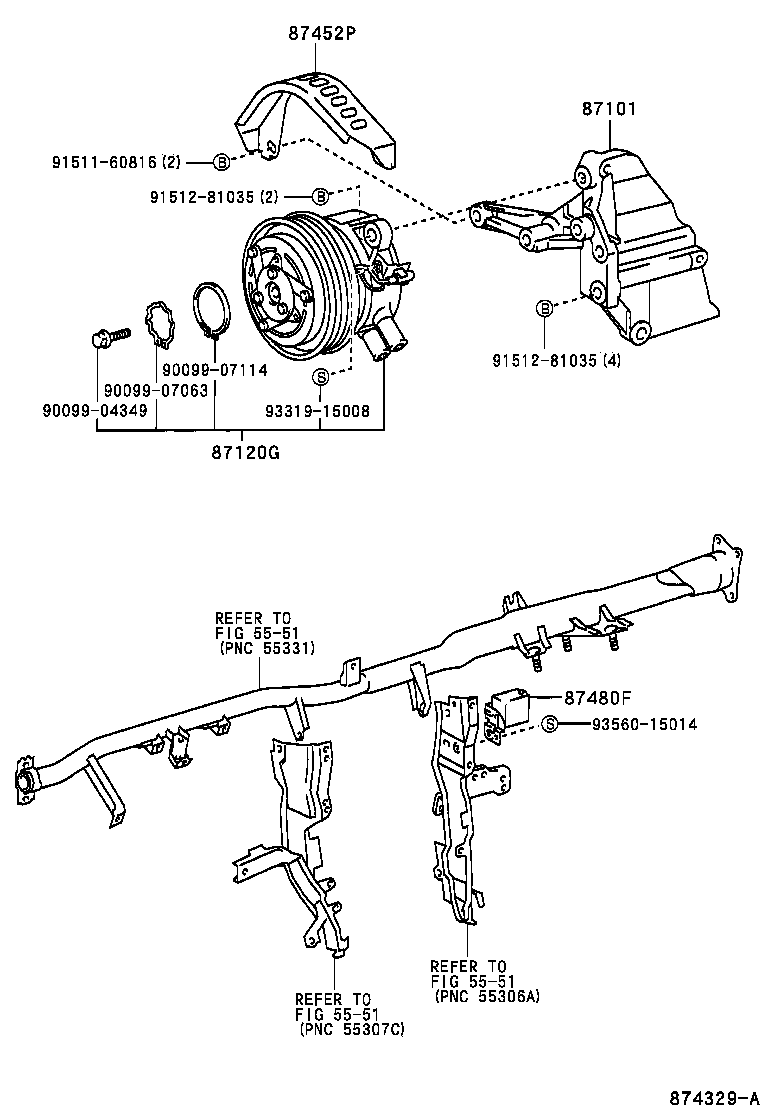

ILLUST NO. 4 OF 4(0008- )
Click highlighted areas on diagram
ﾋﾞｽｶｽ ﾋ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87101 - BRACKET SUB-ASSY, VISCOUS HEATER NO.1 | ||||
| 87101-35010 |
KDN185 |
1 | ||
| 87120G - HEATER ASSY, VISCOUS W/MAGNET CLUTCH | ||||
| 87120-35030 |
KDN185 |
1 | ||
| 87452P - BRACKET, VISCOUS HEATER, NO.2 | ||||
| 87452-35050 |
KDN185 |
1 | ||
| 87480F - AMPLIFIER ASSY, HEATER | ||||
| 87480-35010 |
KDN185 |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07063 | ||||
| 90099-07114 | ||||
| 91511-60816 | ||||
| 91512-81035 | ||||
| 93319-15008 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 5551 | ||||
