KDN185W-GAPXY (2000)
Toyota Hilux Surf
Production
Aug 2000
-
Nov 2002
Engine
1KDFTV
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0008- )1KDFTV

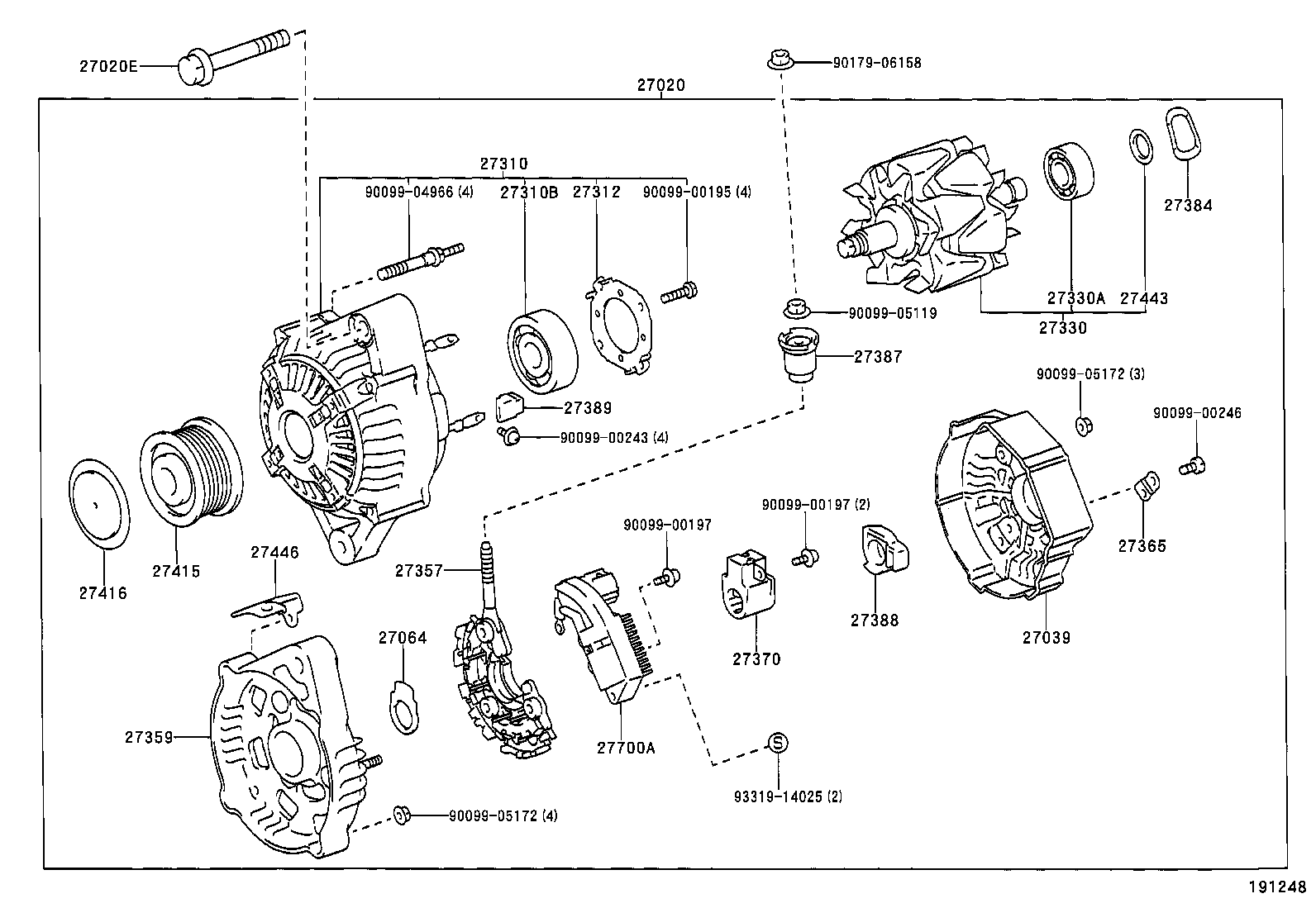

Click highlighted areas on diagram
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-30010 |
1KDFTV..KDN185 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10092 |
1K#..KDN185,KZN185 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-74700 |
1KDFTV..KDN185 |
1 | ||
| 27039-30020 |
1KDFTV..KDN185 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-30020 |
1KDFTV..KDN185 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10219 |
1KDFTV..KDN185 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-74550 |
1KDFTV..KDN185 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-30020 |
1KDFTV..KDN185 |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-30010 |
1KDFTV..KDN185 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-30010 |
1KDFTV..KDN185 |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1K#,3RZFE,5VZFE..KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-46230 |
1K#..KDN185,KZN185 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-30070 |
1KDFTV..KDN185 |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
