KDN185G-GKPXY (2000)
Toyota Hilux Surf
(0008- )KDN185
A340F

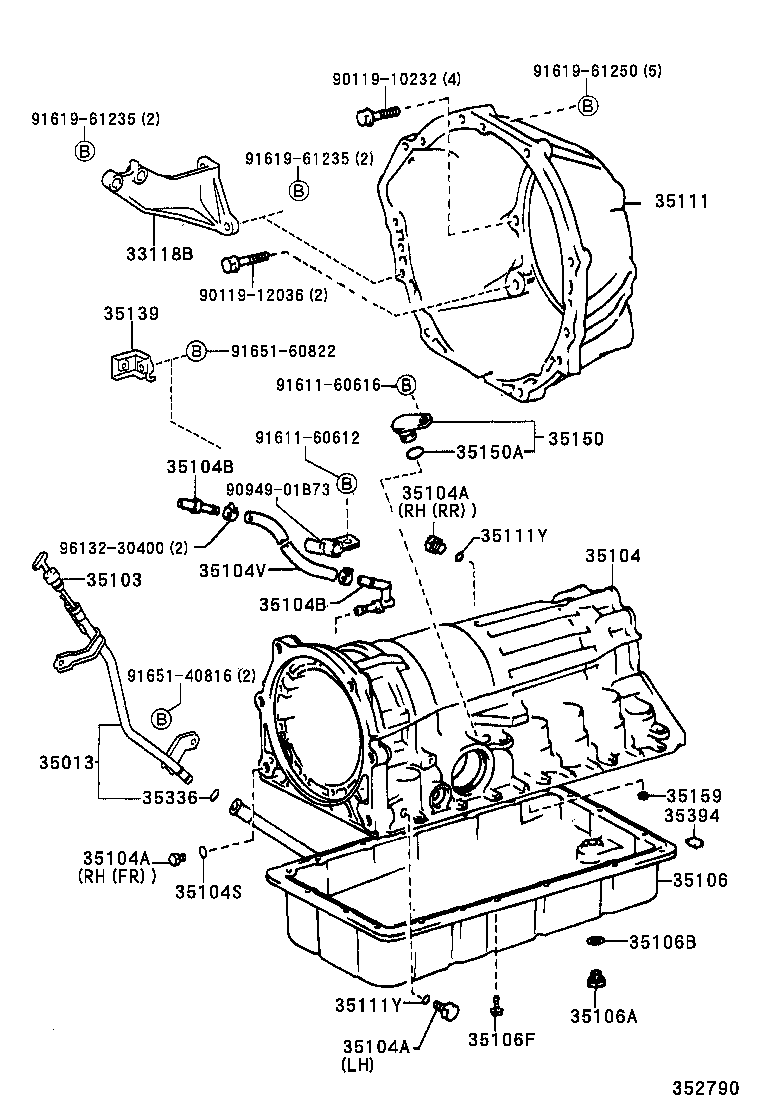

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33118B - PLATE, STIFFENER, RH(ATM) | ||||
| 33118-35070 |
KDN185 |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-60220 |
KDN185 |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-35450 |
KDN185 |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-35011 |
KDN185 |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
KDN185,KZN185..4FC 右側(ﾘｱ) 又は 左側 |
2 | ||
| 90341-14011 |
KDN185,KZN185..4FC 右側(ﾌﾛﾝﾄ) |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
KDN185,KZN185..4FC 右側(ﾘｱ) 又は 左側 |
2 | ||
| 90341-14011 |
KDN185,KZN185..4FC 右側(ﾌﾛﾝﾄ) |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
KDN185,KZN185..4FC 右側(ﾘｱ) 又は 左側 |
2 | ||
| 90341-14011 |
KDN185,KZN185..4FC 右側(ﾌﾛﾝﾄ) |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03168 |
KDN185 ﾎﾞﾃﾞｰ側 |
1 | ||
| 90930-03099 |
KDN185,RZN180 ﾎﾞﾃﾞｰ側 |
1 | ||
| 90930-03098 |
KDN185,RZN180 ﾐｯｼｮﾝ ｹｰｽ側 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03168 |
KDN185 ﾎﾞﾃﾞｰ側 |
1 | ||
| 90930-03099 |
KDN185,RZN180 ﾎﾞﾃﾞｰ側 |
1 | ||
| 90930-03098 |
KDN185,RZN180 ﾐｯｼｮﾝ ｹｰｽ側 |
1 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-11006 |
KDN185,KZN185..4FC |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11118 |
KDN185,RZN180 |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
KDN185,VZN185 |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
KDN185 |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06513 |
KDN185,KZN185,RZN18#,VZN18#..4FC |
19 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-35090 |
KDN185,KZN185..4FC |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
KDN185,KZN185,RZN18#,VZN18#..4FC |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
KDN185,KZN185,RZN18#,VZN18#..4FC |
2 | ||
| 35139 - BRACKET, OIL FILLER TUBE | ||||
| 35139-35020 |
KDN185 |
1 | ||
| 35150A - RING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG) | ||||
| 90301-09012 |
KDN185 |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-30010 |
KDN185,KZN185,RZN18#,VZN18#..4FC |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09011 |
KDN185,KZN185,RZN185,VZN18#..4FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
KDN185,VZN185 |
4 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-12036 | ||||
| 90949-01B73 | ||||
| 91611-60612 | ||||
| 91611-60616 | ||||
| 91619-61235 | ||||
| 91619-61250 | ||||
| 91651-40816 | ||||
| 91651-60822 | ||||
| 96132-30400 | ||||
