GRN215W-GKAGK (2005)

Toyota Hilux Surf

Production Aug 2005 - Aug 2009
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

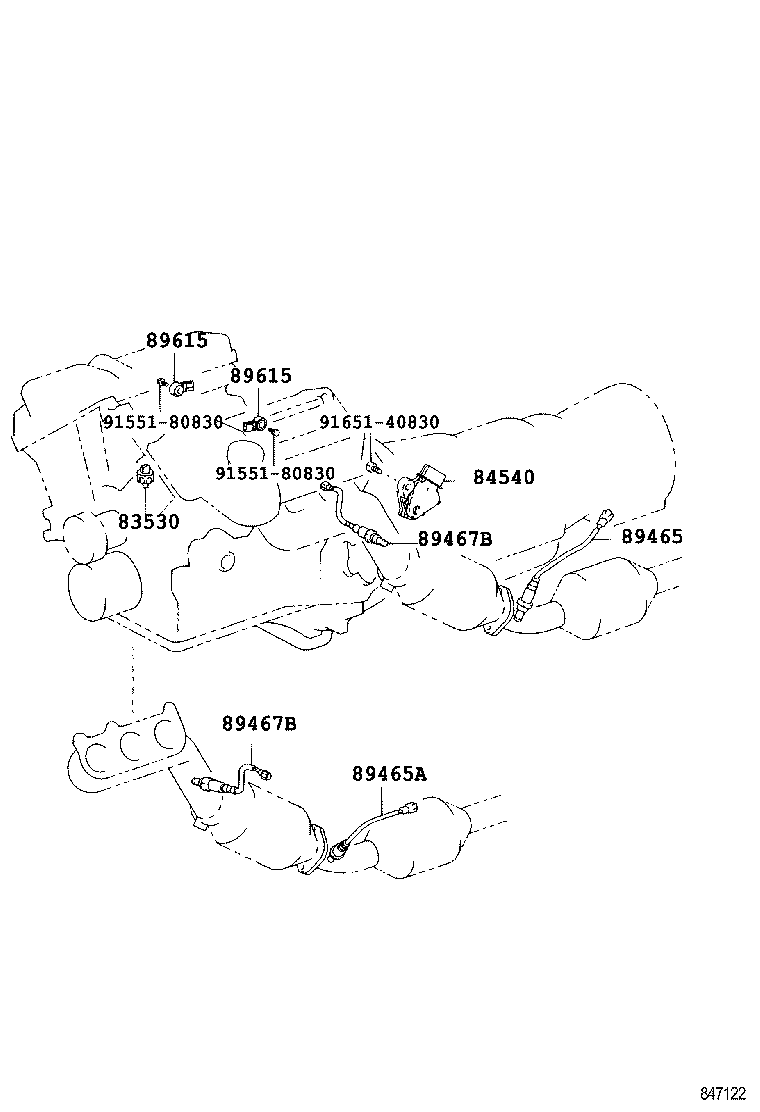

ILLUST NO. 1 OF 8(0508- )GRN215

Click highlighted areas on diagram

ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ

diagram 83530 84540 89465 89465A 89467B 89467B 89615 89615 9155180830 9155180830 9165140830
Part # Description Qty Price
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28020

GRN215,TRN21#

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-71010

GRN215

 1
89465 - SENSOR, OXYGEN
89465-35670

GRN215

 1
89465-60320

GRN215

 1
89465A - SENSOR, OXYGEN NO.2
89465-35680

GRN215

 1
89465-60330

GRN215

 1
89467B - SENSOR, AIR FUEL RATIO
89467-35110

GRN215

 2
89467-71020

GRN215

 2
89467B - SENSOR, AIR FUEL RATIO
89467-35110

GRN215

 2
89467-71020

GRN215

 2
89615 - SENSOR, KNOCK CONTROL
89615-20090

GRN215

 2
89615 - SENSOR, KNOCK CONTROL
89615-20090

GRN215

 2
Common parts
91551-80830
91651-40830

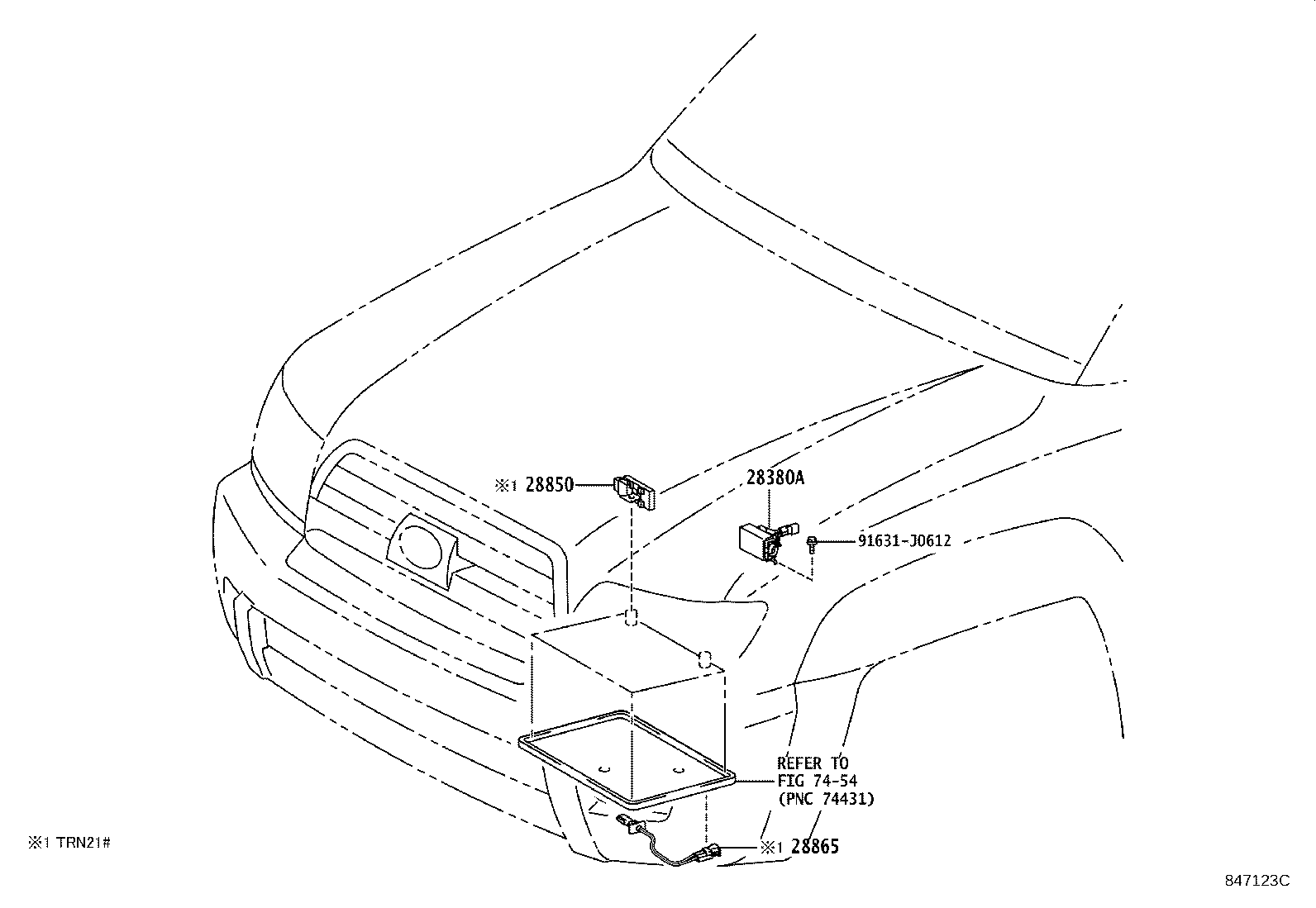

ILLUST NO. 2 OF 8(0508- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ 1/2

diagram 28380A 28850 28865 7454 91631J0612
Part # Description Qty Price
28380A - RESISTER, FUEL PUMP
23080-50130

1GRFE..GRN215

 1
Common parts
91631-J0612
Linked diagrams
7454

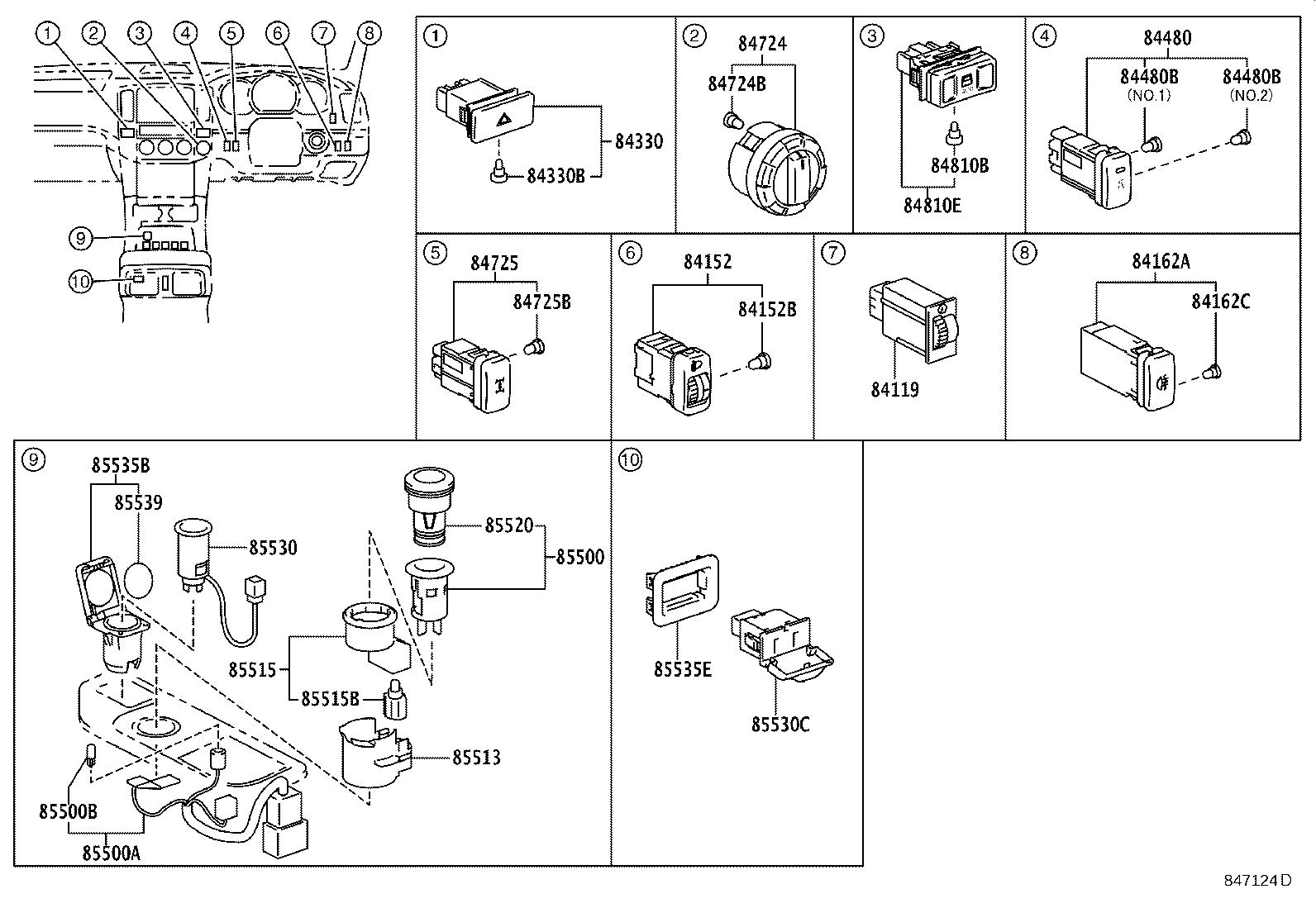

ILLUST NO. 5 OF 8(0508- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

diagram 84119 84152 84152B 84162A 84162C 84330 84330B 84480 84480B 84480B 84724 84724B 84725 84725B 84810B 84810E 85500 85500A 85500B 85513 85515 85515B 85520 85530 85530C 85535B 85535E 85539
Part # Description Qty Price
84119 - RHEOSTAT, LIGHT CONTROL
84119-35040

GRN215,TRN215..SSRG

 1
84152 - SWITCH, HEADLAMP LEVELING
84152-35030

GRN215,TRN21#

 1
84152B - BULB (FOR HEADLAMP LEVELING SWITCH)
90010-08111

GRN215,TRN21#

14V 40MA

 1
84162A - SWITCH, REAR FOG LAMP
84165-35010

GRN215,TRN21#

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
84162C - BULB (FOR REAR FOG LAMP SWITCH)
90010-01083

GRN215,TRN21#

14V 0.91W,ｷｬｯﾌﾟ付き,ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-35070

GRN215,TRN21#

 1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10860

GRN215,TRN21#

14V 0.91W

 1
84480 - SWITCH ASSY, MAIN
84480-35050

GRN215,TRN215..SSRG

 1
84480B - BULB, MAIN SWITCH ASSY
84999-10310

GRN215,TRN215..SSRG

14V 0.91W,NO.1

 1
90010-01083

GRN215,TRN215..SSRG

14V 0.91W,ｷｬｯﾌﾟ付き,NO.2

 1
84480B - BULB, MAIN SWITCH ASSY
84999-10310

GRN215,TRN215..SSRG

14V 0.91W,NO.1

 1
90010-01083

GRN215,TRN215..SSRG

14V 0.91W,ｷｬｯﾌﾟ付き,NO.2

 1
84724 - SWITCH, 4 WHEEL DRIVE CONTROL
84724-35020

GRN215,TRN215

 1
84724B - BULB, 4 WHEEL DRIVE CONTROL SWITCH
90010-01084

GRN215,TRN215

 1
84725 - SWITCH, CENTER DIFFERENTIAL LOCK
84725-35050

GRN215,TRN215

 1
84725B - BLUB, DIFFERENTIAL LOCK SWITCH
90010-01083

GRN215,TRN215

14V 0.91W,ｷｬｯﾌﾟ付き

 1
84810B - BULB (FOR POWER WINDOW REGULATOR SWITCH)
90010-01088

GRN215,TRN21#

14V 0.63W,ｷｬｯﾌﾟ付き

 1
84810E - SWITCH ASSY, BACK DOOR POWER WINDOW REGULATOR
84810-35050

GRN215,TRN21#

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-50020

GRN215,TRN21#

 1
85500A - WIRE, CIGARETTE LIGHTER
82390-35010

GRN215,TRN21#

 1
85500B - BULB, CIGARETTE LIGHTER
90981-11041

GRN215,TRN21#

14V 1.4W

 1
85513 - COVER, CIGARETTE LIGHTER
85513-12020

GRN215,TRN21#

 1
85515 - STAY, CIGARETTE LIGHTER BEZEL
85515-22040

GRN215,TRN21#

 1
85515B - BULB, CIGARETTE LIGHTER BEZEL STAY
90010-01030

GRN215,TRN21#

 1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-30200

GRN215,TRN21#

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-35040

GRN215,TRN21#

 1
85530C - SOCKET ASSY, POWER OUTLET, CENTER
85530-35010

GRN215,TRN215..SSRG

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-35060B0

GRN215,TRN21#

DK.GRAY,TRIM1#,4#

 1
85535E - COVER, POWER OUTLET SOCKET, NO.2
85535-41010B1

GRN215,TRN215..SSRG

DK.GRAY,TRIM1#,4#

 1
85539 - LABEL, POWER OUTLET NOTICE
85539-60010

GRN215,TRN21#

 1

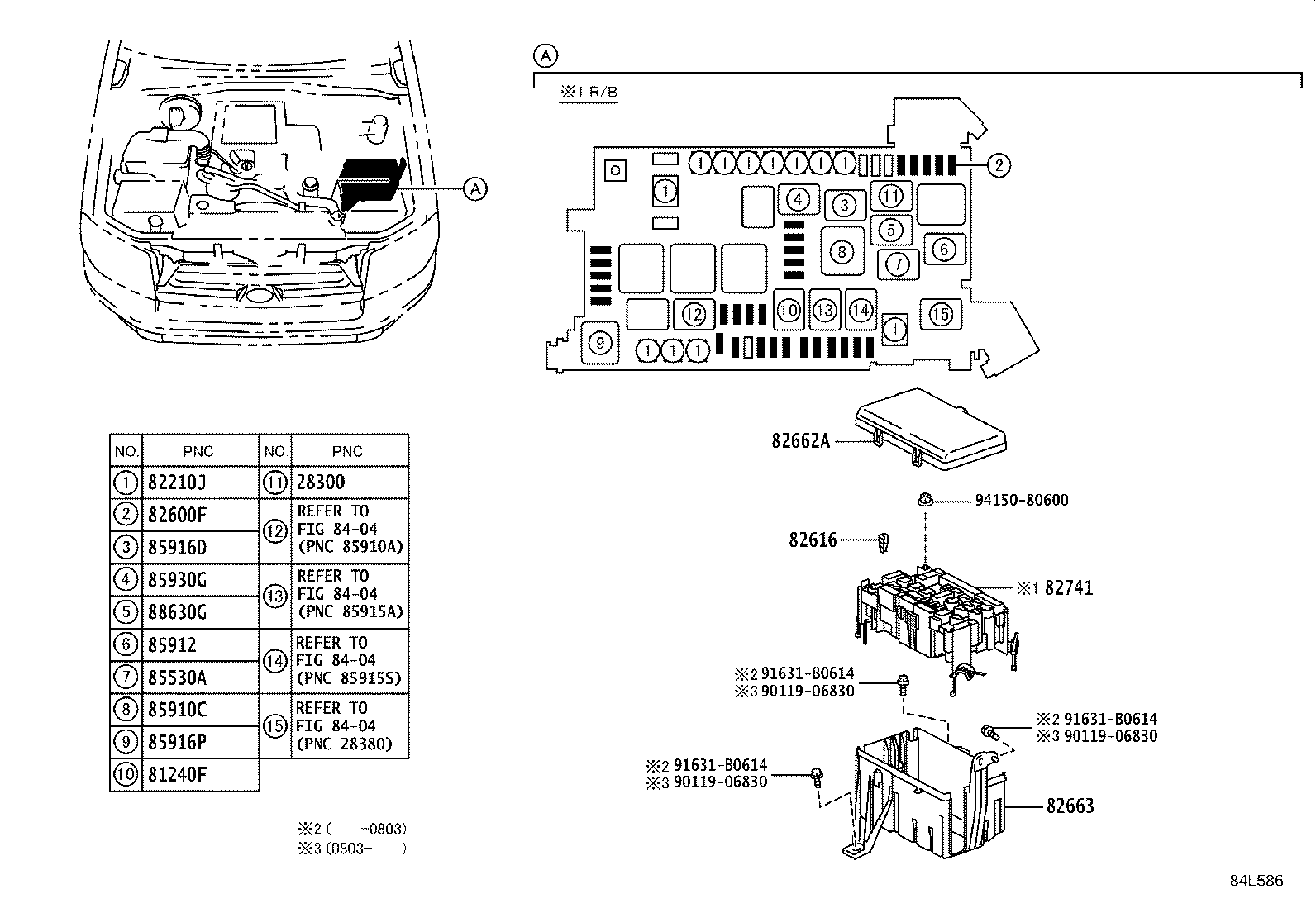

ILLUST NO. 3 OF 8(0508- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ 2/2

diagram 28300 81240F 82210J 82600F 82616 82662A 82663 82741 8404 8404 8404 8404 85530A 85910C 85912 85916D 85916P 85930G 88630G 9011906830 9011906830 9011906830 91631B0614 91631B0614 91631B0614 9415080600
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-28010

1GRFE,2TRFE..GRN215,TRN21#

 1
81240F - RELAY, DOME LAMP
90987-02027

GRN215,TRN21#

 1
82210J - FUSIBLE LINK
90982-08282

GRN215,TRN21#

50A,ﾒｽ端子,赤

 1
90982-08274

GRN215

120A,ｵｽ端子,白

 1
90982-08280

GRN215,TRN21#

30A,ﾒｽ端子,桃

 1
90982-08283

GRN215,TRN21#

30A,ﾒｽ端子,桃,ｴﾝｼﾞﾝﾙｰﾑJ/B

 1
90982-08282

GRN215,TRN21#

50A,ﾒｽ端子,赤

 1
90982-08281

GRN215,TRN21#

40A,ﾒｽ端子,緑

 1
90982-08283

GRN215,TRN21#

30A,ﾒｽ端子,桃,ｴﾝｼﾞﾝﾙｰﾑJ/B

 1
90982-08281

GRN215,TRN21#

40A,ﾒｽ端子,緑

 1
90982-08274

GRN215

120A,ｵｽ端子,白

 1
90982-08280

GRN215,TRN21#

30A,ﾒｽ端子,桃

 1
82600F - FUSE, FUSE BLOCK
90982-09009

GRN215,TRN21#

10A,ﾐﾆ ﾋｭｰｽﾞ,赤

 1
90982-09008

GRN215,TRN21#

7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶

 1
90982-09010

GRN215,TRN21#

15A,ﾐﾆ ﾋｭｰｽﾞ,青

 1
90982-09013

GRN215,TRN21#

30A,ﾐﾆ ﾋｭｰｽﾞ,緑

 1
90982-09011

GRN215,TRN21#

20A,ﾐﾆ ﾋｭｰｽﾞ,黄

 1
90982-09011

GRN215,TRN21#

20A,ﾐﾆ ﾋｭｰｽﾞ,黄

 1
90982-09013

GRN215,TRN21#

30A,ﾐﾆ ﾋｭｰｽﾞ,緑

 1
90982-09009

GRN215,TRN21#

10A,ﾐﾆ ﾋｭｰｽﾞ,赤

 1
90982-09010

GRN215,TRN21#

15A,ﾐﾆ ﾋｭｰｽﾞ,青

 1
90982-09008

GRN215,TRN21#

7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶

 1
82616 - PULLER, FUSE
82616-20010

GRN215,TRN21#

 1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-3D170

GRN215,TRN21#

 1
82663 - COVER, RELAY BLOCK, LOWER
82663-35090

GRN215,TRN21#

 1
82741 - BLOCK, ENGINE ROOM RELAY
82741-35110

GRN215,TRN21#

 1
85530A - RELAY, POWER OUTLET SOCKET
90987-02027

GRN215,TRN215..SSRG

 2
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04010

GRN215,TRN21#

 1
85912 - RELAY, DEFOGGER
90987-04004

GRN215,TRN21#

 1
85916D - RELAY, FOG LAMP
90987-02027

GRN215,TRN21#

 1
85916P - RELAY, HEADLAMP
90987-02025

GRN215,TRN21#

 1
85930G - RELAY, ACC
90987-04004

GRN215

 1
88630G - RELAY ASSY, COOLER
90987-02028

GRN215,TRN21#

 1
Common parts
90119-06830
91631-B0614
94150-80600
Linked diagrams
8404
