GRN215W-GKAGK (2005)

Toyota Hilux Surf

Production Aug 2005 - Aug 2009
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

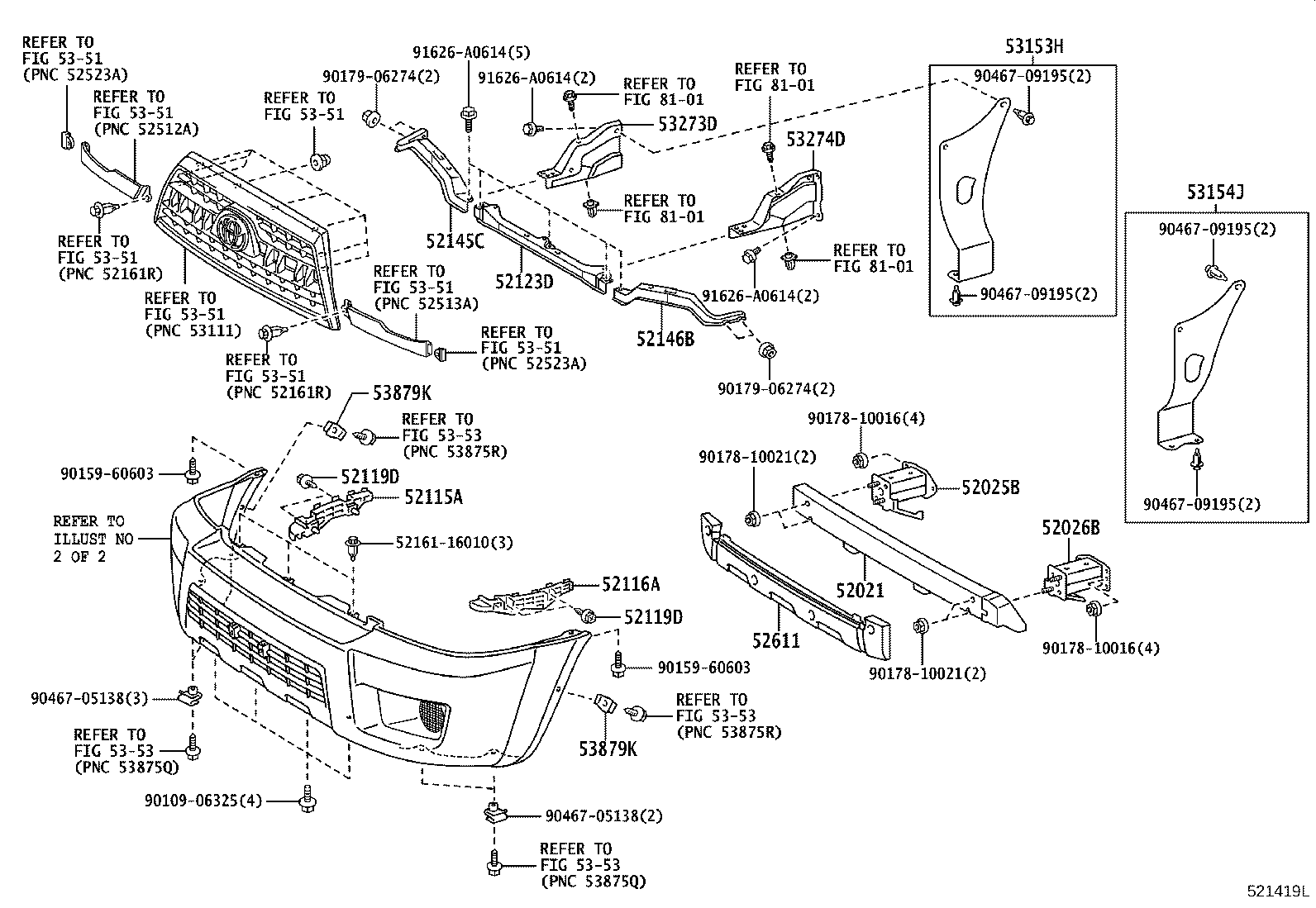

ILLUST NO. 1 OF 2(0508- )

Click highlighted areas on diagram

diagram 52021 52025B 52026B 52115A 52116A 52119D 52119D 52123D 52145C 52146B 5216116010 52611 53153H 53154J 53273D 53274D 5351 5351 5351 5351 5351 5351 5351 5351 5353 5353 5353 5353 53879K 53879K 8101 8101 8101 8101 9010906325 9015960603 9015960603 9017810016 9017810016 9017810021 9017810021 9017906274 9017906274 9046705138 9046705138 9046709195 9046709195 9046709195 9046709195 91626A0614 91626A0614 91626A0614
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-35060

GRN215,TRN21#

 1
52025B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH
52025-35050

GRN215,TRN21#

 1
52026B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH
52026-35050

GRN215,TRN21#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-35110

GRN215,TRN21#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-35100

GRN215,TRN21#

 1
52119D - SCREW, NO.1
90159-60431

GRN215,TRN21#

 4
52119D - SCREW, NO.1
90159-60431

GRN215,TRN21#

 4
52123D - PLATE, FRONT BUMPER REINFORCEMENT
52123-35160

GRN215,TRN21#

 1
52145C - BRACKET, FRONT BUMPER SIDE MOUNTING, RH
52145-35060

GRN215,TRN21#

 1
52146B - BRACKET, FRONT BUMPER SIDE MOUNTING, LH
52146-35060

GRN215,TRN21#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-35020

GRN215,TRN21#

 1
53153H - GUIDE, RADIATOR GRILLE SIDE AIR, RH
53153-35011

GRN215,TRN21#

 1
53154J - GUIDE, RADIATOR GRILLE SIDE AIR, LH
53154-35031

GRN215,TRN21#

 1
53273D - BRACKET, FRONT BUMPER ARM MOUNTING, RH
53273-35080

GRN215,TRN21#

 1
53274D - BRACKET, FRONT BUMPER ARM MOUNTING, LH
53274-35060

GRN215,TRN21#

 1
53879K - RETAINER, FRONT FENDER LINER
53879-58010

GRN215,TRN21#

 2
53879-58010

GRN215,TRN21#

 2
53879K - RETAINER, FRONT FENDER LINER
53879-58010

GRN215,TRN21#

 2
53879-58010

GRN215,TRN21#

 2
Common parts
52161-16010
90109-06325
90159-60603
90178-10016
90178-10021
90179-06274
90467-05138
90467-09195
91626-A0614
Linked diagrams
5351
5353
8101

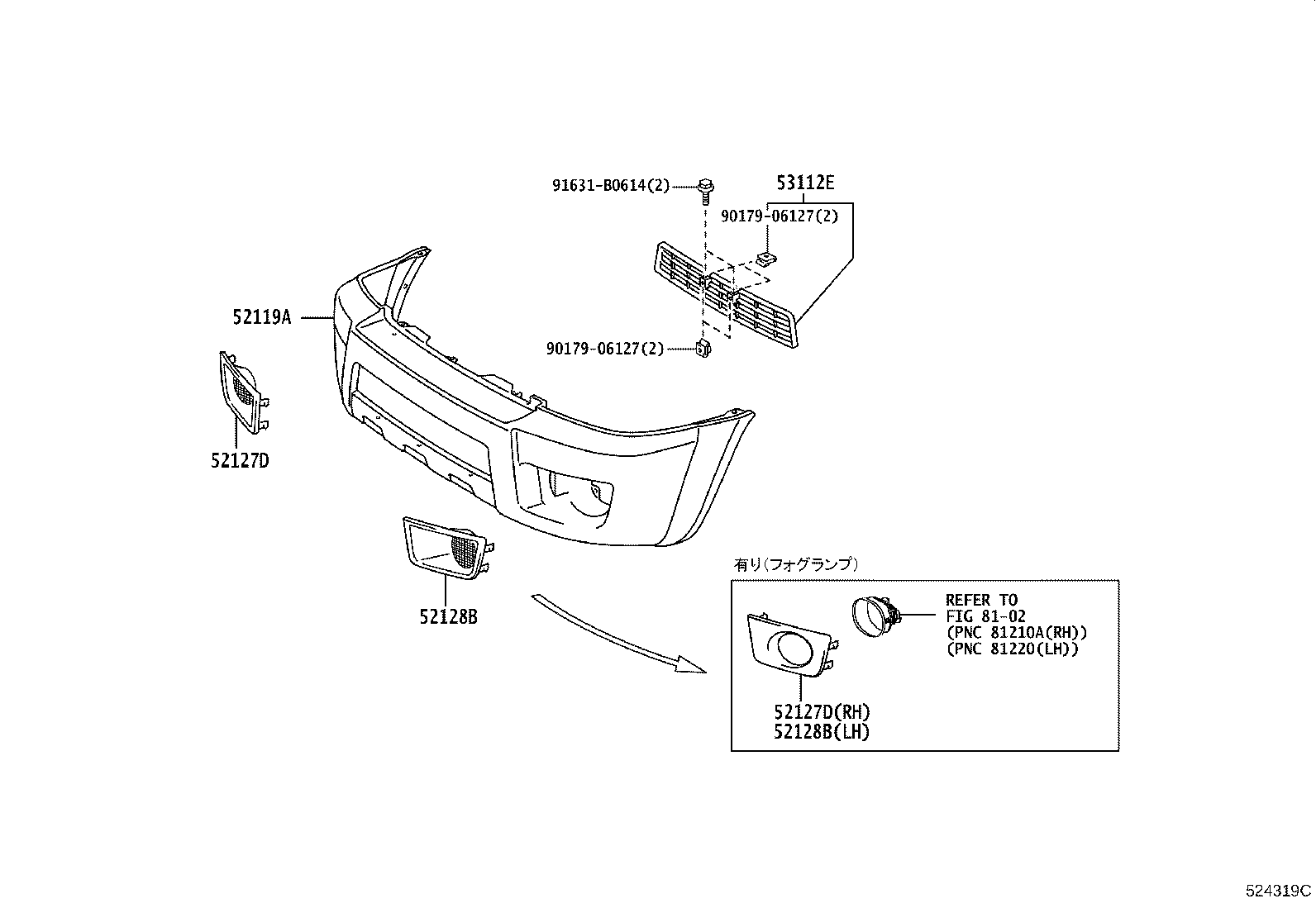

ILLUST NO. 2 OF 2(0508- )

Click highlighted areas on diagram

diagram 52119A 52127D 52127D 52128B 52128B 53112E 8102 9017906127 9017906127 91631B0614
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-35040J0

GRN215,TRN21#

LT.BLUE ME.,8R6

 1
52119-35040A1

GRN215,TRN21#

WHITE PEARL CS.,070

 1
52119-35040B0

GRN215,TRN21#

“LIMITED60thｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ”,SILVER ME.,070 ,202 ,3Q3,*(X)

 1
52119-35040B1

GRN215,TRN21#

DK.GRAY M.M.,1E9

 1
52119-35040B0

GRN215,TRN215..SSRG

SILVER ME.,1D4

 1
52119-35040J1

GRN215,TRN21#

DK.BLUE MC.,8S6

 1
52119-35040C0

GRN215,TRN21#

“LIMITED60thｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ”,BLACK,202,*(B)

 1
52119-35040E0

GRN215,TRN21#

BRONZE M.M.,4S2

 1
52119-35040B0

GRN215,TRN21#

“LIMITED60thｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ”,SILVER ME.,070 ,202 ,3Q3,*(X)

 1
52119-35040B0

GRN215,TRN21#

SILVER ME.,1D4

 1
52119-35040C0

GRN215,TRN21#

BLACK,202

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-35050

GRN215,TRN21#

 1
52127-35050

GRN215,TRN21#

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-35050

GRN215,TRN21#

 1
52127-35050

GRN215,TRN21#

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-35040

GRN215,TRN21#

 1
52128-35040

GRN215,TRN21#

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-35040

GRN215,TRN21#

 1
52128-35040

GRN215,TRN21#

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53102-35020

GRN215,TRN21#

塗装不要

 1
53102-35030

GRN215,TRN21#

塗装不要

 1
Common parts
90179-06127
91631-B0614
Linked diagrams
8102
