YN86-TRQDE3 (1994)

Toyota Hilux

Production Aug 1994 - Aug 1997
Engine 3YE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9408- )3YE

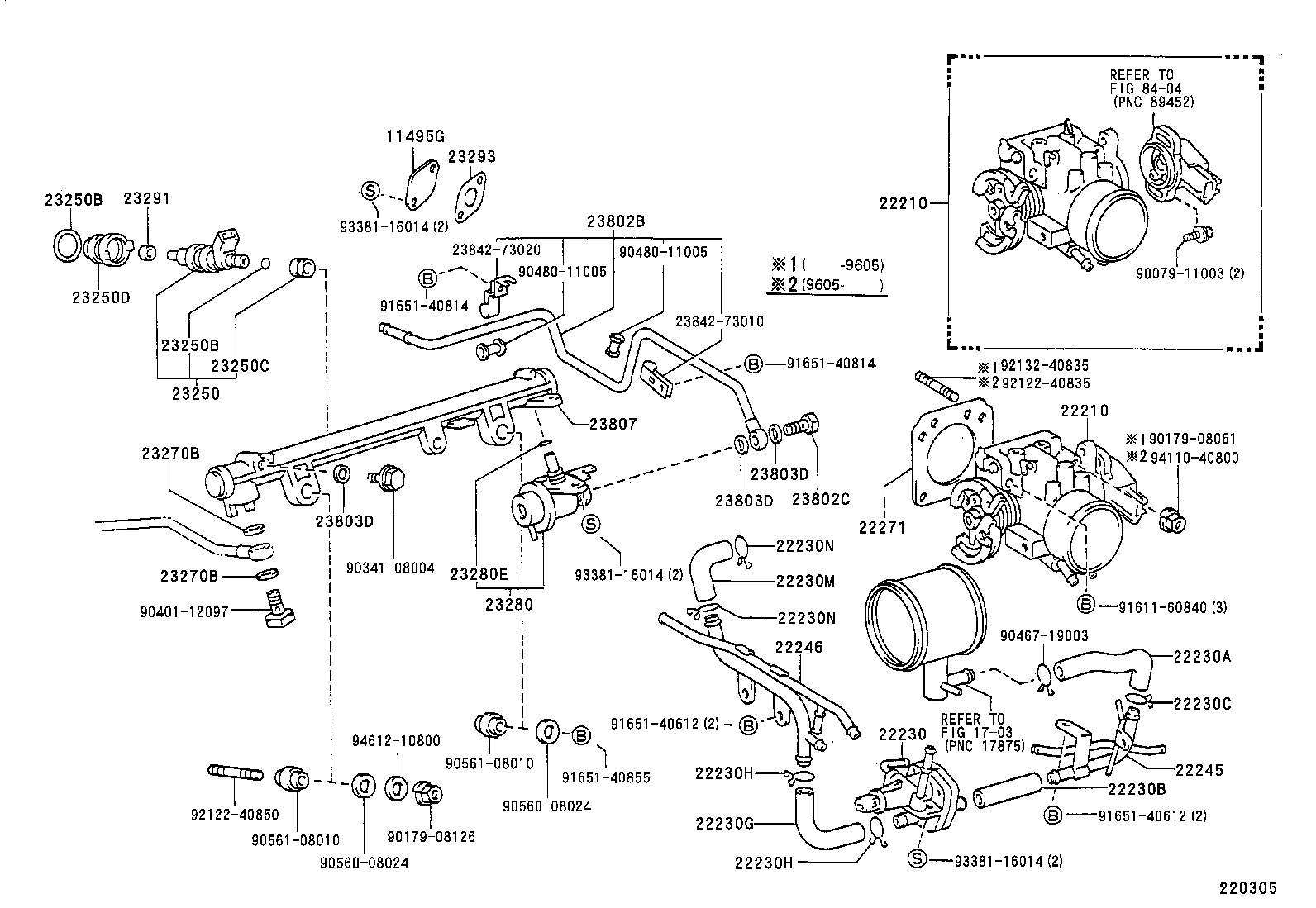

Click highlighted areas on diagram

diagram 11495G 1703 22210 22210 22230 22230A 22230B 22230C 22230G 22230H 22230H 22230M 22230N 22230N 22245 22246 22271 23250 23250B 23250B 23250C 23250D 23270B 23270B 23280 23280E 23291 23293 23802B 23802C 23803D 23803D 23803D 23807 2384273010 2384273020 8404 9007911003 9017908061 9017908126 9034108004 9040112097 9046719003 9048011005 9048011005 9056008024 9056008024 9056108010 9056108010 9161160840 9165140612 9165140612 9165140814 9165140814 9165140855 9212240835 9212240850 9213240835 9338116014 9338116014 9338116014 9411040800 9461210800
Part # Description Qty Price
11495G - PLUG, PLATE(FOR INTAKE AIR SURGE TANK)
11495-76020

3YE..YN107,8#

 1
22210 - BODY ASSY, THROTTLE
22210-73090

3YE..YN107,8#

 1
22210 - BODY ASSY, THROTTLE
22210-73090

3YE..YN107,8#

 1
22230A - HOSE, AUXILIARY AIR VALVE, NO.1
22233-73022

3YE..YN107,8#

 1
23250 - INJECTOR ASSY, FUEL
23209-70020

3YE..YN107,8#

 4
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-12026

3YE..YN107,8#

 2
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-12026

3YE..YN107,8#

 2
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-73040

3YE..YN107,8#

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-08003

3YE..YN107,8#

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08014

3YE..YN107,8#

 3
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08014

3YE..YN107,8#

 3
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08014

3YE..YN107,8#

 3
Common parts
23842-73010
23842-73020
90079-11003
90179-08061
90179-08126
90341-08004
90401-12097
90467-19003
90480-11005
90560-08024
90561-08010
91611-60840
91651-40612
91651-40814
91651-40855
92122-40835
92122-40850
92132-40835
93381-16014
94110-40800
94612-10800
Linked diagrams
1703
8404
