YN86-TRQDE (1994)

Toyota Hilux

Production Aug 1994 - Aug 1997
Engine 3YE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9408- )3YE

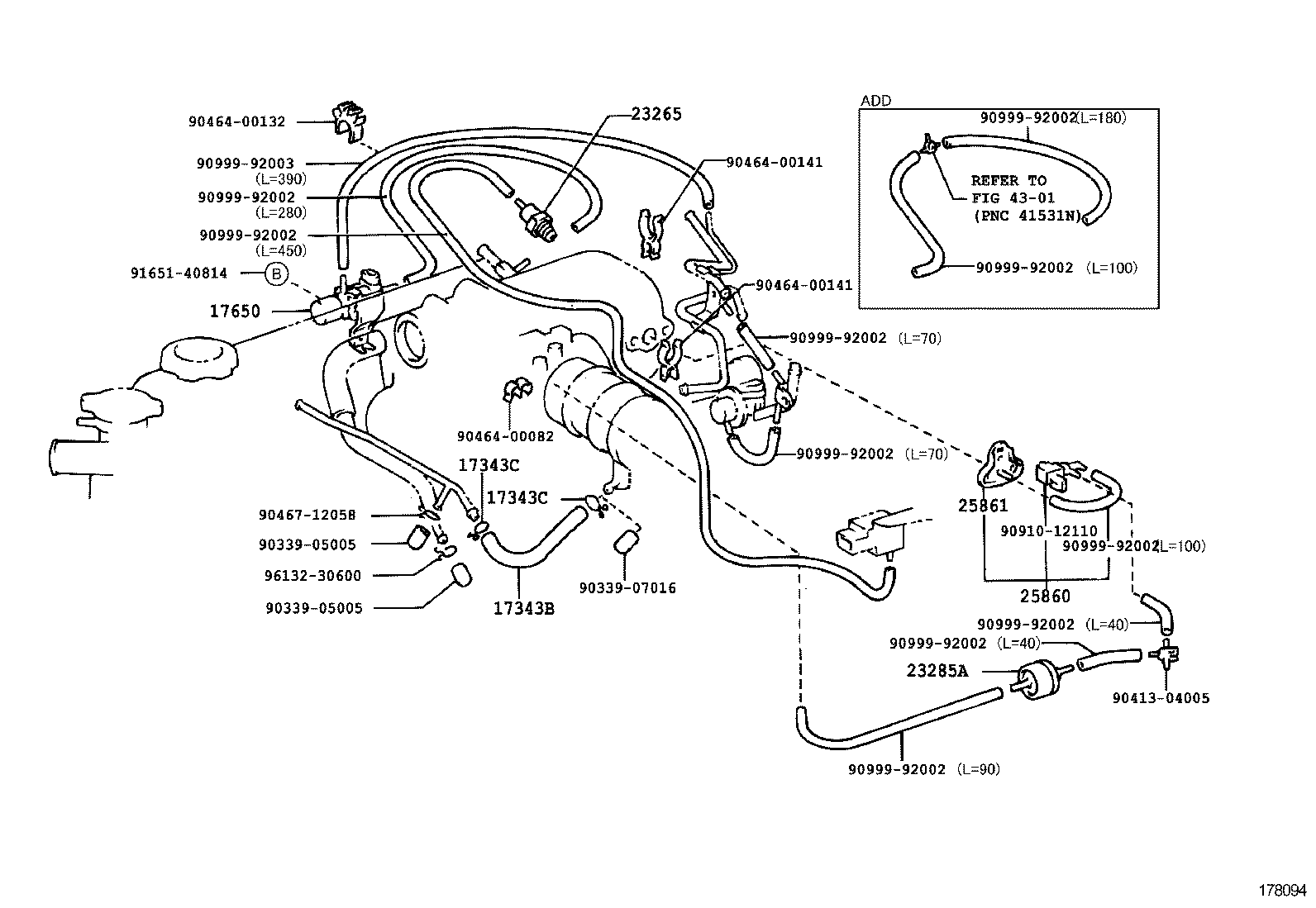

Click highlighted areas on diagram

diagram 17343B 17343C 17343C 17650 23265 23285A 25860 25861 4301 9033905005 9033905005 9033907016 9041304005 9046400082 9046400132 9046400141 9046400141 9046712058 9091012110 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9165140814 9613230600
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12038

3YE..YN107,8#

 1
23265 - FILTER, GAS, NO.1
90917-11024

2Y,3Y..YN10#,8#

 1
23285A - VALVE, CHECK, NO.1
90917-10049

2Y,3Y..YN10#,8#

 1
90917-10080

3YE..YN107,8#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-73071

3YE..YN107,8#

 1
25861 - BRACKET, VACUUM SWITCHING VALVE
25861-73031

3YE..YN107,8#

 1
Common parts
90339-05005
90339-07016
90413-04005
90464-00082
90464-00132
90464-00141
90467-12058
90910-12110
90999-92002
90999-92003
91651-40814
96132-30600
Linked diagrams
4301
