YN86-TRPSE (1994)
Toyota Hilux
(9408- )YN86..4FC
A44D

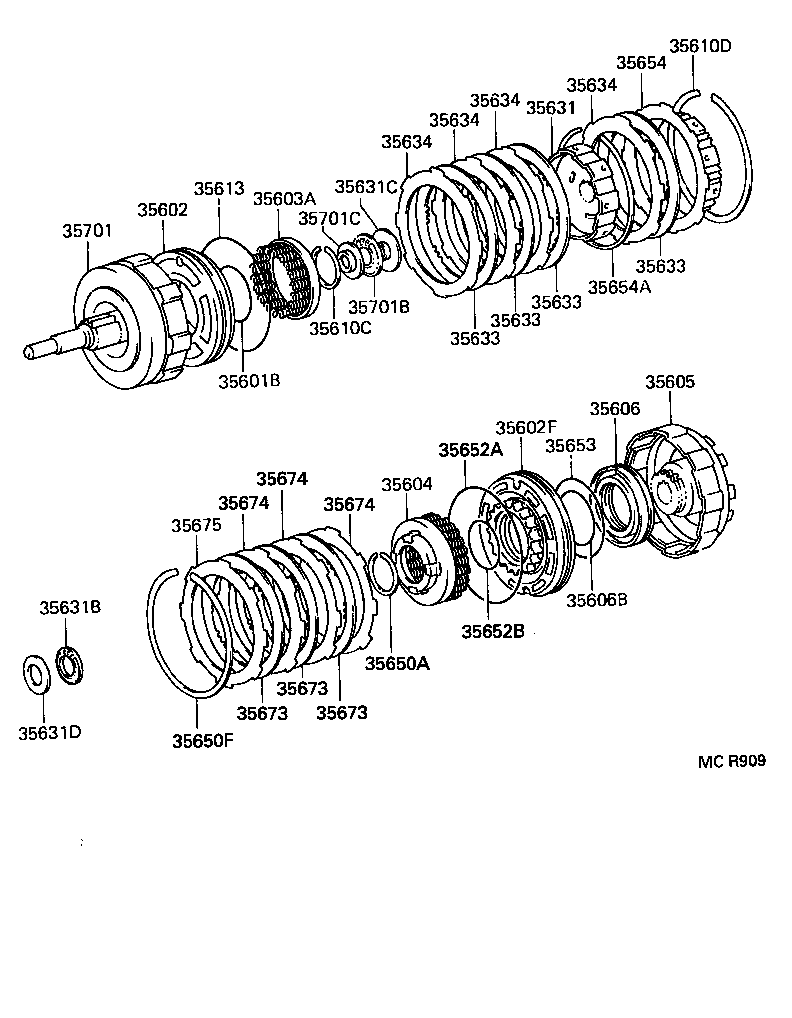

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35601B - RING, O (FOR FRONT CLUTCH DRUM) | ||||
| 90301-57188 |
LN85,YN86..4FC |
1 | ||
| 35602 - PISTON SUB-ASSY, FRONT CLUTCH | ||||
| 35602-30042 |
LN85,YN86..4FC |
1 | ||
| 35602F - PISTON SUB-ASSY, REAR CLUTCH, NO.2 | ||||
| 35602-30041 |
LN85,YN86..4FC |
1 | ||
| 35605 - DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR | ||||
| 35605-30021 |
YN86..4FC |
1 | ||
| 35606 - PISTON SUB-ASSY, REAR CLUTCH | ||||
| 35606-22010 |
LN85,YN86..4FC |
1 | ||
| 35606B - RING (FOR REAR CLUTCH PISTON INNER) | ||||
| 90301-57188 |
LN85,YN86..4FC |
1 | ||
| 35610C - RING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING | ||||
| 90520-39261 |
LN85,YN86..4FC |
1 | ||
| 35613 - RING, CLUTCH PISTON OIL SEAL, OUTER | ||||
| 90301-99016 |
LN85,YN86..4FC |
1 | ||
| 35631 - HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH) | ||||
| 35631-30050 |
LN85,YN86..4FC |
1 | ||
| 35631B - BEARING, THRUST(FOR FRONT CLUTCH HUB) | ||||
| 90374-28014 |
LN85,YN86..4FC |
1 | ||
| 35631C - RACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT) | ||||
| 35789-22050 |
LN85,YN86..4FC |
1 | ||
| 35631D - RACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR) | ||||
| 35789-22020 |
LN85,YN86..4FC |
1 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35677-30160 |
YN86..4FC |
4 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35677-30160 |
YN86..4FC |
4 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35677-30160 |
YN86..4FC |
4 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35677-30160 |
YN86..4FC |
4 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-22040 |
LN85,YN86..4FC 厚さ=1.8 |
3 | ||
| 35634-30070 |
LN85,YN86..4FC 厚さ=2.0 |
1 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-22040 |
LN85,YN86..4FC 厚さ=1.8 |
3 | ||
| 35634-30070 |
LN85,YN86..4FC 厚さ=2.0 |
1 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-22040 |
LN85,YN86..4FC 厚さ=1.8 |
3 | ||
| 35634-30070 |
LN85,YN86..4FC 厚さ=2.0 |
1 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-22040 |
LN85,YN86..4FC 厚さ=1.8 |
3 | ||
| 35634-30070 |
LN85,YN86..4FC 厚さ=2.0 |
1 | ||
| 35650A - RING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING) | ||||
| 90520-39261 |
LN85,YN86..4FC |
1 | ||
| 35650F - RING, SHAFT SNAP | ||||
| 90521-99139 |
LN85,YN86..4FC |
1 | ||
| 35652A - RING (FOR REAR CLUTCH OUTER) | ||||
| 90301-99016 |
LN85,YN86..4FC |
1 | ||
| 35652B - RING (FOR REAR CLUTCH PISTON INNER) | ||||
| 90301-57188 |
LN85,YN86..4FC |
1 | ||
| 35653 - RING, REAR CLUTCH OIL SEAL, OUTER | ||||
| 90301-84184 |
LN85,YN86..4FC |
1 | ||
| 35654 - HUB, REAR CLUTCH | ||||
| 35654-30010 |
LN85,YN86..4FC |
1 | ||
| 35654A - RING, HOLE SNAP (FOR REAR CLUTCH HUB) | ||||
| 90521-99146 |
LN85,YN86..4FC |
1 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35677-30160 |
YN86..4FC |
3 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35677-30160 |
YN86..4FC |
3 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35677-30160 |
YN86..4FC |
3 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35634-22040 |
LN85,YN86..4FC |
3 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35634-22040 |
LN85,YN86..4FC |
3 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35634-22040 |
LN85,YN86..4FC |
3 | ||
| 35675 - FLANGE, REAR CLUTCH | ||||
| 35675-22010 |
LN85,YN86..4FC 厚さ=4.0 |
1 | ||
| 35701B - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR) | ||||
| 90374-23012 |
LN85,YN86..4FC |
1 | ||
| 35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR) | ||||
| 35789-22010 |
LN85,YN86..4FC |
1 | ||
