YN86-TRPSE (1994)

Toyota Hilux

Production Aug 1994 - Aug 1997
Engine 3YE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9408- )YN86..4FC

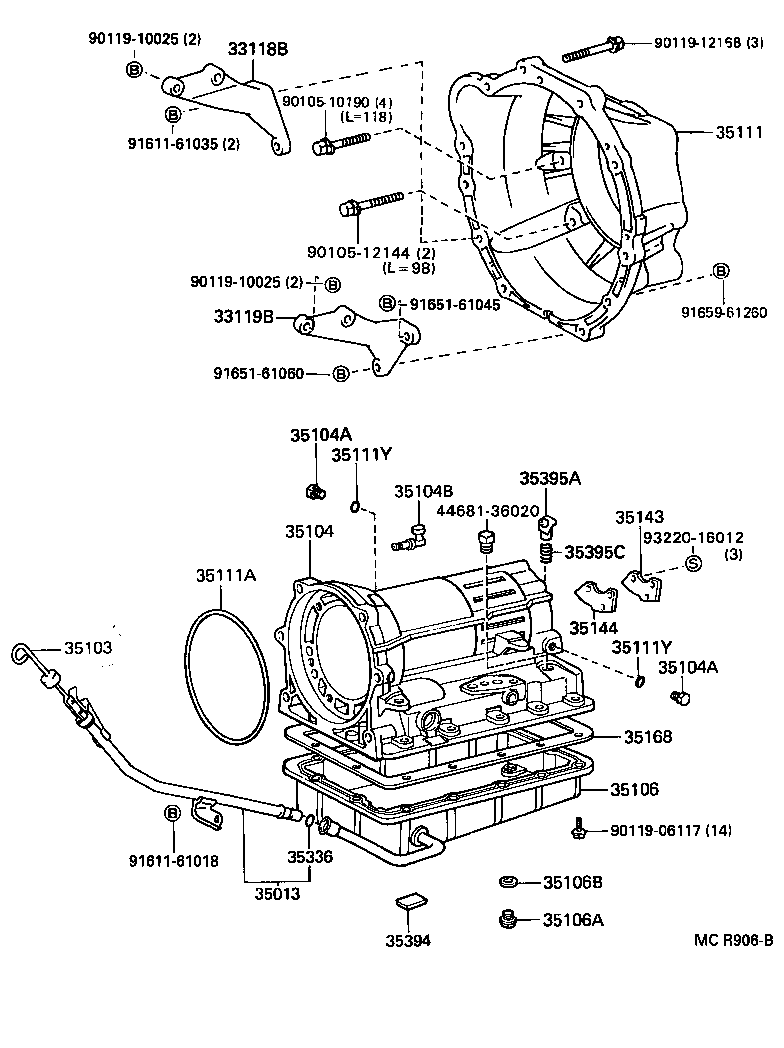

Click highlighted areas on diagram

A44D

diagram 33118B 33119B 35013 35103 35104 35104A 35104A 35104B 35106 35106A 35106B 35111 35111A 35111Y 35111Y 35143 35144 35168 35336 35394 35395A 35395C 4468136020 9010510190 9010512144 9011906117 9011910025 9011910025 9011912168 9161161018 9161161035 9165161045 9165161060 9165961260 9322016012
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-35260

YN86..4FC

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-35280

YN86..4FC

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-26021

LN85,YN86..4FC

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03108

LN85,YN86..4FC

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-22090

YN86..4FC

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10006

KZN130,LN108,112,130,85,VZN130,YN130,86..4FC

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

KZN130,LN108,112,130,85,VZN130,YN130,86..4FC

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-30120

YN86..4FC

 1
35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING)
90301-99054

LN85,YN86..4FC

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

KZN130,LN108,112,130,85,VZN130,YN130,86..4FC

 2
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

KZN130,LN108,112,130,85,VZN130,YN130,86..4FC

 2
35143 - COVER, TRANSMISSION CASE, REAR
35143-22010

LN85,YN86..4FC

 1
35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN
35168-22011

LN85,YN86..4FC

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

KZN130,LN108,112,130,85,YN130,86..4FC

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

YN86..4FC

 2
35395C - SPRING, COMPRESSION (FOR GOVERNOR STRAINGER)
90501-03005

YN86..4FC

 1
Common parts
44681-36020
90105-10190
90105-12144
90119-06117
90119-10025
90119-12168
91611-61018
91611-61035
91651-61045
91651-61060
91659-61260
93220-16012
