YN86-TLQDE3 (1994)

Toyota Hilux

Production Aug 1994 - Aug 1997
Engine 3YE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9408- )LN10#,112,8#

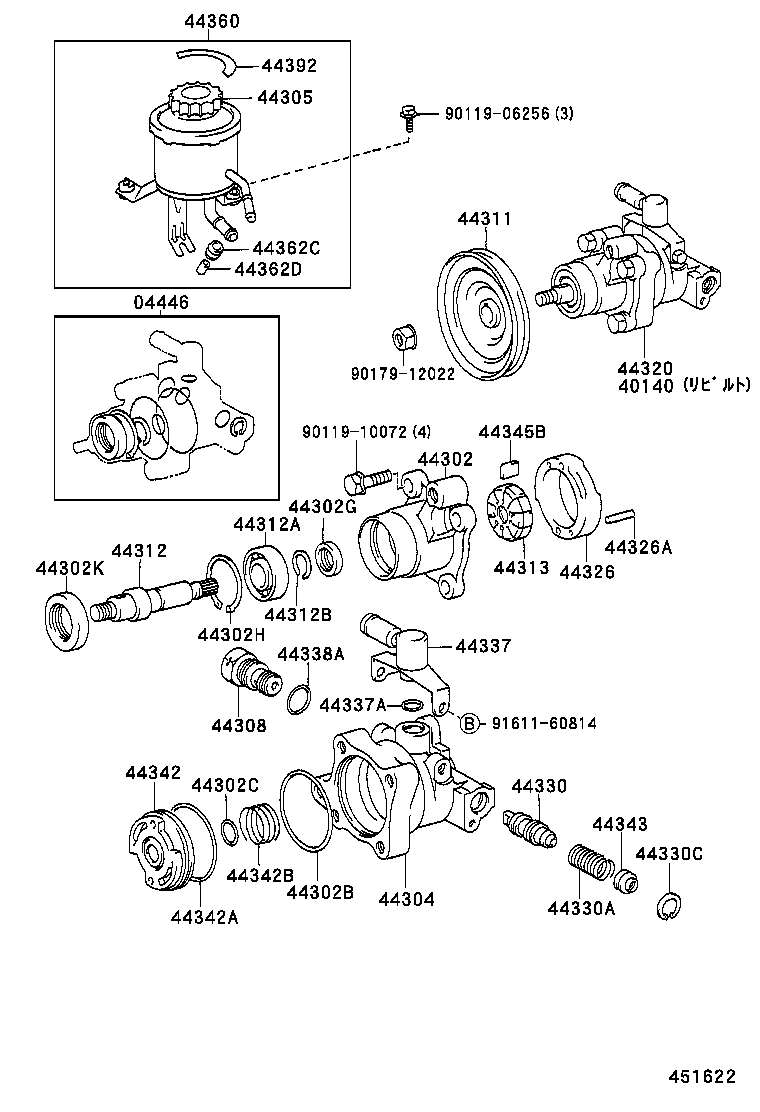

Click highlighted areas on diagram

diagram 04446 40140 44302 44302B 44302C 44302G 44302H 44302K 44304 44305 44308 44311 44312 44312A 44312B 44313 44320 44326 44326A 44330 44330A 44330C 44337 44337A 44338A 44342 44342A 44342B 44343 44345B 44360 44362C 44362D 44392 9011906256 9011910072 9017912022 9161160814
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-30030

YN107,8#

 1
04446-26030

LN10#,112,8#

 1
40140 - PUMP ASSY,VANE REBUILT
40140-35441

LN10#,112,8#

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-30110

LN10#,112,8#

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-17004

LN10#,112,8#

 1
90311-24001

YN107,8#

 1
44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
90521-51003

LN10#,112,8#

 1
90521-44002

YN107,8#

 1
44302K - SEAL, OIL, NO.3(FOR VANE PUMP HOUSING)
90313-23001

LN10#,112,8#

 1
44311 - PULLEY, VANE PUMP
44311-30150

LN10#,112,8#

 1
44312 - SHAFT, VANE PUMP
44312-28010

LN10#,112,8#

 1
44312-12010

YN107,8#

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-17011

LN10#,112,8#

 1
90363-17004

YN107,8#

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-15001

YN107,8#

 1
90520-15005

KZN130,LN10#,112,8#

 1
44313 - ROTOR, VANE PUMP
44313-22040

LN10#,112,8#,YN107,8#

ﾏｰｸ無し

 1
44320 - PUMP ASSY, VANE
44320-35441

LN10#,112,8#

 1
44345B - PLATE, VANE PUMP
44345-12010

LN10#,112,8#,YN107,8#

長さ=14.997

 10
Common parts
90119-06256
90119-10072
90179-12022
91611-60814
