YN86-TLQDE3 (1994)
Toyota Hilux
Production
Aug 1994
-
Aug 1997
Engine
3YE
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9408- )3YE

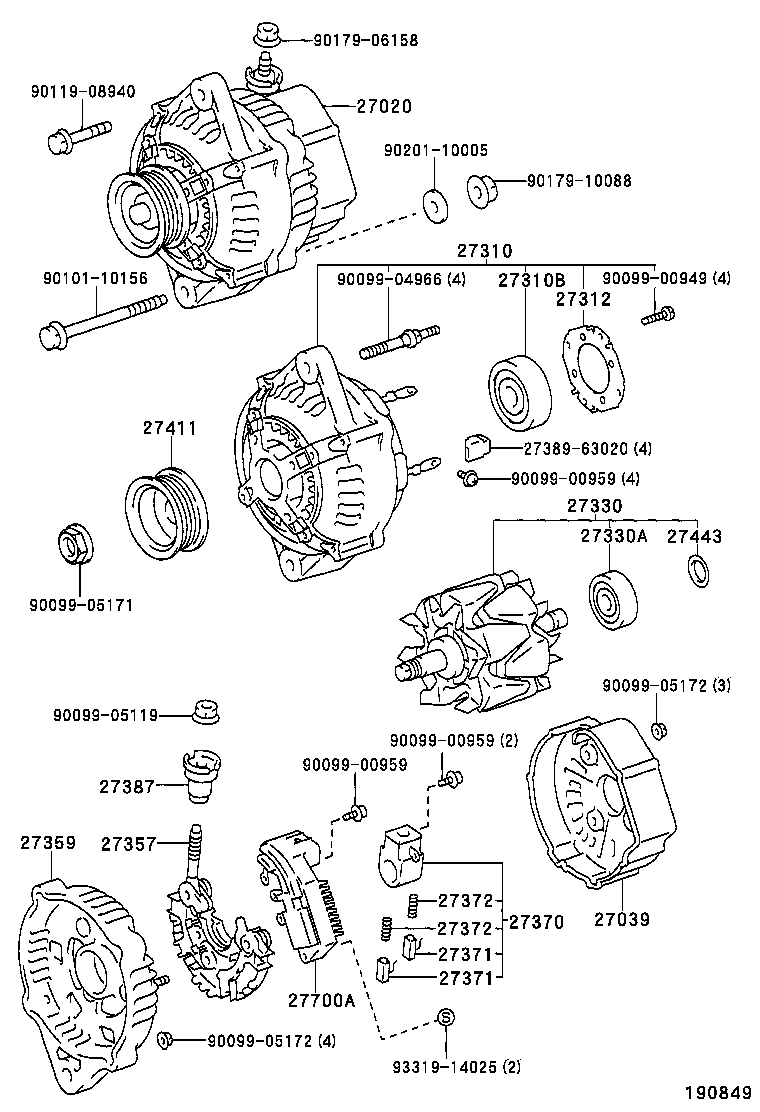

Click highlighted areas on diagram
12V 55A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-72200 |
2Y,3Y..YN10#,8# 12V 40A |
1 | ||
| 27060-75030 |
3YE..YN107,8# 12V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-16380 |
2LTE,3YE..LN108,112,YN107,8# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-43060 |
3YE..YN107,8# |
1 | ||
| 27310-75040 |
3YE..YN107,8# |
1 | ||
| 27310-72030 |
2Y,3Y..YN10#,8# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10142 |
2Y,3Y..YN10#,8# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-26050 |
2Y,3Y..YN10#,8# |
1 | ||
| 27330-11250 |
3YE..YN107,8# 12V 55A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
2Y,3Y..YN10#,8# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63060 |
3YE..YN107,8# |
1 | ||
| 27357-13360 |
3YE..YN107,8# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16182 |
2LTE,3YE..LN108,112,YN107,8# |
1 | ||
| 27359-72030 |
2Y,3Y..YN10#,8# |
1 | ||
| 27359-16181 |
2LTE,3YE..LN108,112,YN107,8# |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
2Y,3Y..YN10#,8# |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
2Y,3Y..YN10#,8# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
2Y,3Y..YN10#,8# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
2Y,3Y..YN10#,8# |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-45110 |
2Y,3Y..YN10#,8# NO.1 |
1 | ||
| 27387-70170 |
3YE..YN107,8# |
1 | ||
| 27387-45022 |
2Y,3Y..YN10#,8# |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-72040 |
2Y,3Y..YN10#,8# |
1 | ||
| 27411-16150 |
3YE..YN107,8# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-72030 |
2L,3L,2Y,3Y..LN10#,8#,YN10#,8# |
1 | ||
| 27700-35040 |
3YE..YN107,8# |
1 | ||
| 27700-35040 |
2LTE,3YE..LN108,112,YN107,8# |
1 | ||
| Common parts | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90101-10156 | ||||
| 90119-08940 | ||||
| 90179-06158 | ||||
| 90179-10088 | ||||
| 90201-10005 | ||||
| 93319-14025 | ||||
