YN85-TRQSS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )LN85,86,YN85,86

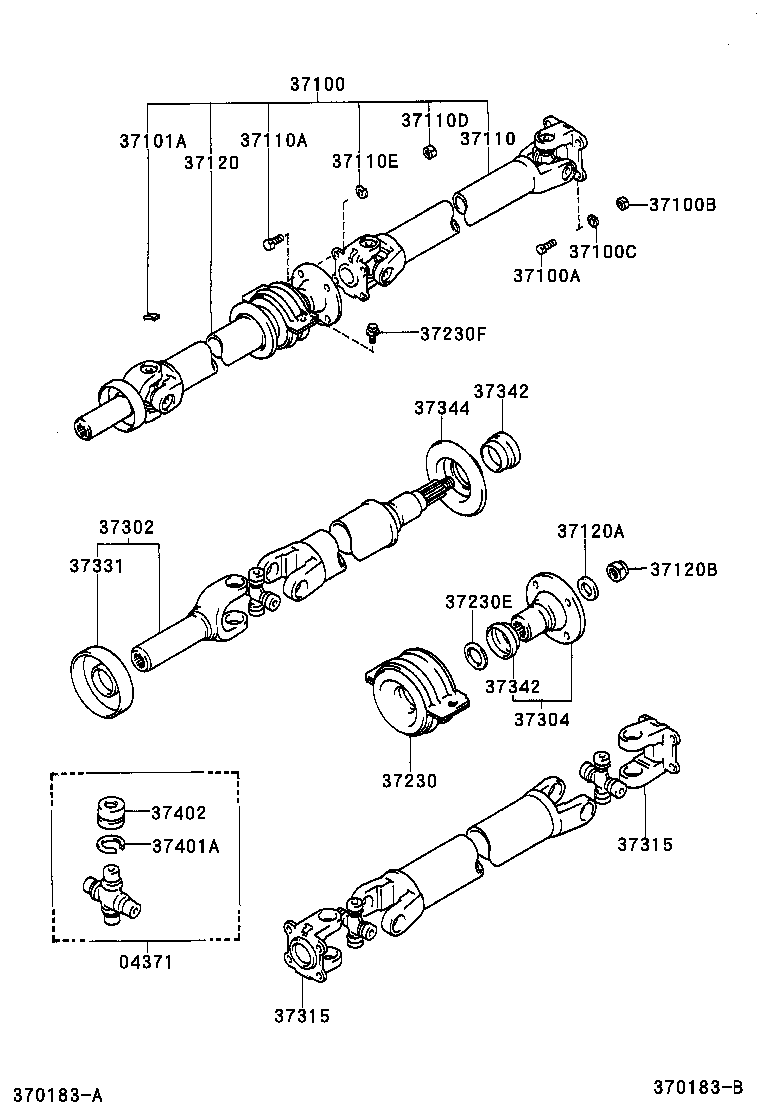

Click highlighted areas on diagram

diagram 04371 37100 37100A 37100B 37100C 37101A 37110 37110A 37110D 37110E 37120 37120A 37120B 37230 37230E 37230F 37302 37304 37315 37315 37331 37342 37342 37344 37401A 37402
Part # Description Qty Price
04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
04371-25010

LN85,YN85,86

 3
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-35270

LN85,YN85,86..5H

 1
37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90105-10085

VZN130,YN130..5F;KZN130,LN108,109,112,13#,8#,YN8#

 4
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90179-10059

LN8#,YN8#

 4
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90204-10002

LN8#,YN8#

 4
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01150

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

8G,長さ=16.6

 1
90937-01132

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

10G,長さ=20.7

 1
90937-01147

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

2G,厚さ=2.0

 1
90937-01151

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

12G,長さ=24.9

 1
90937-01148

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

4G,厚さ=2.0

 1
90937-01152

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

14G,長さ=29.0

 1
90937-01201

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

30G,厚さ=4.5,長さ=27.4

 1
90937-01149

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

6G,長さ=12.4

 1
37110 - SHAFT ASSY, PROPELLER
37110-35230

LN85,YN85,86

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90105-10085

LN106..T1;LN107,109,85,86,YN107,85,86

*10−1.00PX27−13

 4
37110D - NUT (FOR PROPELLER SHAFT)
90179-10059

LN106,107,109,85,86,YN107,85,86

 4
37110E - WASHER (FOR PROPELLER SHAFT)
90204-10002

LN106..T1;LN107,109,85,86,YN107,85,86

 4
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-35220

LN85,YN85,86..5H

 1
37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
90201-20005

LN85,YN85,86

外径=33.5,厚さ=4.0

 1
37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
90179-20006

LN85,YN85,86

 1
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-35070

LN85,86,YN85,86

 1
37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING)
90201-28005

LN85,YN85,86

 1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10049

LN85,86,YN85,86

 2
37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37302-35010

LN8#,YN8#

 1
37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT
37304-35051

LN85,YN85,86

 1
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-35050

LN85,YN85,86

 2
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-35050

LN85,YN85,86

 2
37331 - COVER, SLIDING SHAFT DUST
37331-30010

LN8#,YN8#

 1
37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37342-30010

LN85,YN85,86

 2
37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37342-30010

LN85,YN85,86

 2
37344 - DEFLECTOR, PROPELLER SHAFT DUST, NO.3
37344-35021

LN85,YN85,86

 1
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90521-29070

LN85,YN85,86

厚さ=2.375−2.425

 12
90521-29071

LN85,YN85,86

厚さ=2.425−2.475

 12
90521-29072

LN85,YN85,86

厚さ=2.475−2.525

 12
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-25020

LN85,YN85

 12
