YN85-TRQSS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )2Y,3Y

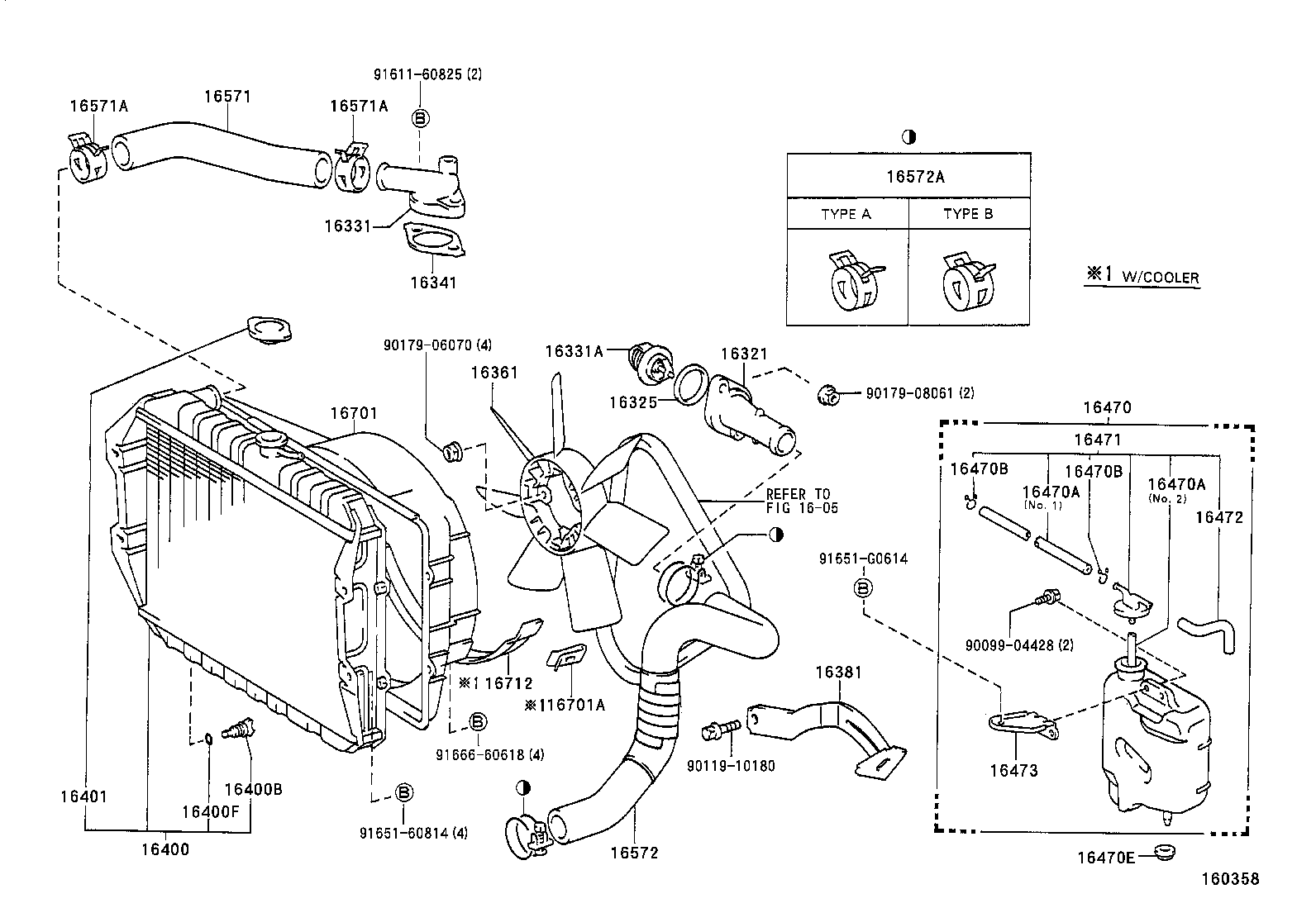

Click highlighted areas on diagram

diagram 1605 16321 16325 16331 16331A 16341 16361 16381 16400 16400B 16400F 16401 16470 16470A 16470A 16470B 16470B 16470E 16471 16472 16473 16571 16571A 16571A 16572 16572A 16701 16701A 16712 9009904428 9011910180 9017906070 9017908061 9161160825 9165160814 91651G0614 9166660618
Part # Description Qty Price
16321 - INLET, WATER
16321-71010

2Y,3Y#..YN10#,130,8#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

2Y,3Y#..YN10#,130,8#

 1
16325-63011

2Y,3Y#..YN10#,8#

 1
16331 - OUTLET, WATER
16331-71010

2Y,3Y..YN10#,8#

 1
16331A - THERMOSTAT
90916-03046

2Y,3Y#..YN10#,8#

*WAX 82−95

 1
90916-03069

2Y,3Y#..YN10#,130,8#

*WAX 82−95

 1
16341 - GASKET, WATER OUTLET
16341-71010

2Y,3Y#..YN10#,130,8#

 1
16361 - FAN
16361-38010

2Y,3Y#..YN10#,130,8#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-71010

2Y,3Y..YN10#,8#

 1
16400 - RADIATOR ASSY
16400-71071

2Y,3YE..YN8#..5H

 1
16400B - PLUG, RADIATOR DRAIN COCK
90910-09054

2Y,3Y#..YN10#,130,8#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

2Y,3Y#..YN10#,130,8#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

2Y,3Y#..YN10#,130,8#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-72030

2Y,3Y#..YN10#,130,8#

 1
16470-35100

2Y,3Y#..YN10#,8#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

2Y,3Y#..YN10#,130,8#

*H,L=350,NO.1,NO.2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

2Y,3Y#..YN10#,130,8#

*H,L=350,NO.1,NO.2

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2Y,3Y#..YN10#,130,8#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2Y,3Y#..YN10#,130,8#

 2
16470E - GROMMET, RADIATOR RESERVE TANK HOSE
90480-25025

2Y,3Y#..YN10#,130,8#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-71010

2Y,3Y#..YN10#,130,8#

 1
16472 - HOSE, BREATHER
85338-71030

2Y,3Y#..YN10#,130,8#

 1
16473 - SUPPORT(FOR RADIATOR RESERVE TANK)
16473-35100

2Y,3Y#..YN10#,8#

 1
16571 - HOSE, RADIATOR, INLET
16571-71030

2Y,3Y#..YN10#,130,8#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37003

2Y..YN85;2Y,3Y#..YN10#,130,80..SDX,SR,SSR,STD

 2
90467-37003

2Y,3Y#..YN10#,8#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37003

2Y..YN85;2Y,3Y#..YN10#,130,80..SDX,SR,SSR,STD

 2
90467-37003

2Y,3Y#..YN10#,8#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-71031

2Y,3Y#..YN10#,130,8#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

2Y..YN85;2Y,3Y#..YN10#,130,80..SDX,SR,SSR,STD

ﾀｲﾌﾟ B

 1
90467-37003

2Y..YN85;2Y,3Y#..YN10#,130,80..SDX,SR,SSR,STD

ﾀｲﾌﾟ A

 2
90467-37003

2Y,3Y#..YN10#,8#

ﾀｲﾌﾟ A

 2
16701 - SHROUD SUB-ASSY, FAN
16711-71030

2Y,3Y#..YN10#,130,8#

 1
16701A - CLIP(FOR FAN SHROUD)
90468-06013

2Y,3Y#..YN10#,130,8#

 2
16712 - SHROUD, FAN, NO.2
16712-54050

2Y,3Y#..YN10#,130,8#

 1
Common parts
90099-04428
90119-10180
90179-06070
90179-08061
91611-60825
91651-60814
91651-G0614
91666-60618
Linked diagrams
1605
