YN85-TRQDS3 (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

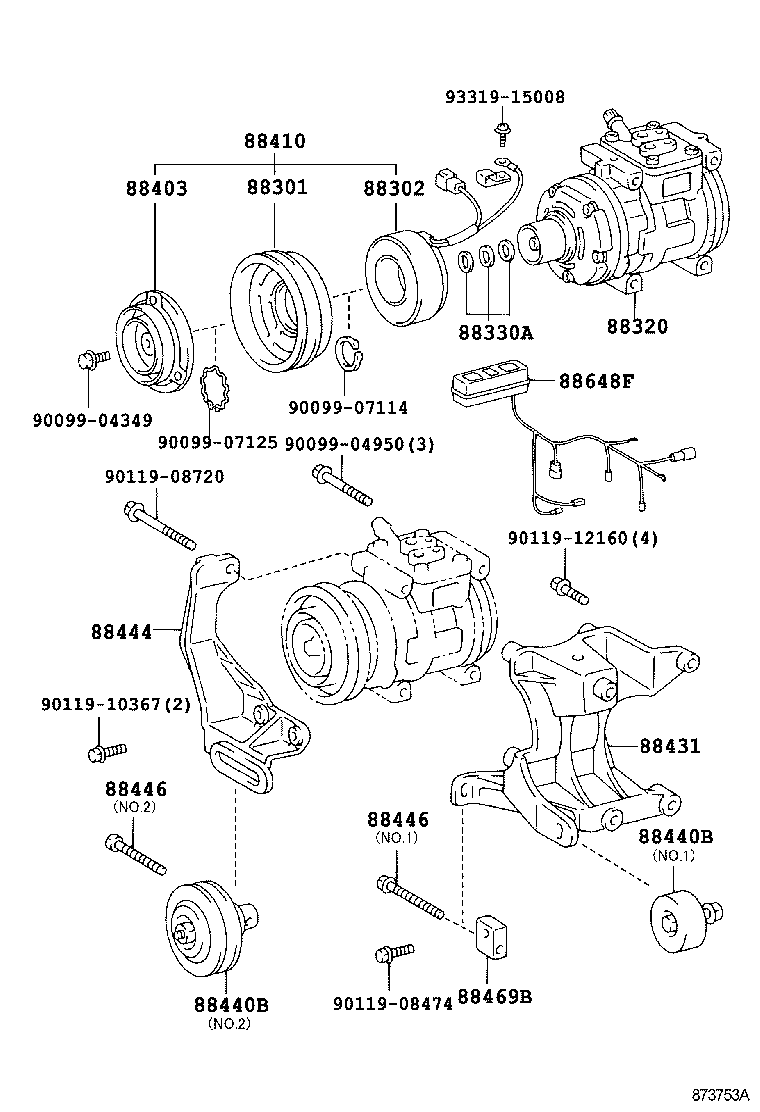

(8809- )LN10#,112,13#,8#

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 88431 88440B 88440B 88444 88446 88446 88469B 88648F 9009904349 9009904950 9009907114 9009907125 9011908474 9011908720 9011910367 9011912160 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-35030

YN10#,8#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-2B080

LN13#,YN10#,8#

 1
88411-2B080

LN13#,YN10#,8#..DLX,SDX,SR,SSRX,STD

 1
88411-2B080

YN107,8#;LN13#,85,YN100..(4FC,5F)..(DLX,SDX,SR,SSRX)

 1
88320 - COMPRESSOR ASSY, COOLER
88320-60620

YN10#,8#

 1
88320-35260

YN10#,8#

 1
88320-35490

LN10#,8#

 1
88320-35250

LN10#,8#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011

YN8#;LN85,YN10#..4FC,5F

 1
88403-16011

YN8#;LN85,VZN130,YN10#..4FC,5F

 1
88403-16011

VZN130,YN10#,8#

 1
88410 - CLUTCH ASSY, MAGNET
88410-35050

YN10#,8#

 1
88410-35040

LN10#,8#..MTM

 1
88410-35040

LN10#,8#

 1
88410-35120

YN10#,8#

 1
88410-90P80

LN10#,8#

 1
88410-35050

YN8#;LN85,YN10#..4FC,5F

 1
88410-60310

YN10#,8#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35160

YN10#,130,8#

 1
88431-35170

LN10#,13#,8#

 1
88440B - PULLEY ASSY, IDLE
88440-35030

LN10#,8#

NO.2

 1
88440-26070

LN10#,13#,8#

NO.1

 1
88440-35030

LN10#,13#,8#

NO.2

 1
88440-35030

LN10#,13#,8#

NO.2

 1
88440-35040

VZN130,YN10#,130,8#

 1
88440B - PULLEY ASSY, IDLE
88440-35030

LN10#,8#

NO.2

 1
88440-26070

LN10#,13#,8#

NO.1

 1
88440-35030

LN10#,13#,8#

NO.2

 1
88440-35030

LN10#,13#,8#

NO.2

 1
88440-35040

VZN130,YN10#,130,8#

 1
88444 - BRACKET, IDLE PULLEY
88444-35050

LN10#,13#,8#

 1
88446 - BOLT, IDLE PULLEY
90099-04321

LN10#,13#,8#

NO.1

 1
88446-35040

LN10#,13#,8#

NO.2

 1
88446-35040

LN10#,13#,8#

NO.2

 1
88446-35030

VZN130,YN10#,130,8#

 1
88446-35040

LN10#,8#

NO.2

 1
88446 - BOLT, IDLE PULLEY
90099-04321

LN10#,13#,8#

NO.1

 1
88446-35040

LN10#,13#,8#

NO.2

 1
88446-35040

LN10#,13#,8#

NO.2

 1
88446-35030

VZN130,YN10#,130,8#

 1
88446-35040

LN10#,8#

NO.2

 1
88469B - COLLAR
88469-30280

LN10#,13#,8#

 1
88648F - WIRE, MAGNET CLUTCH
88648-89128

LN10#,8#

 1
Common parts
90099-04349
90099-04950
90099-07114
90099-07125
90119-08474
90119-08720
90119-10367
90119-12160
93319-15008

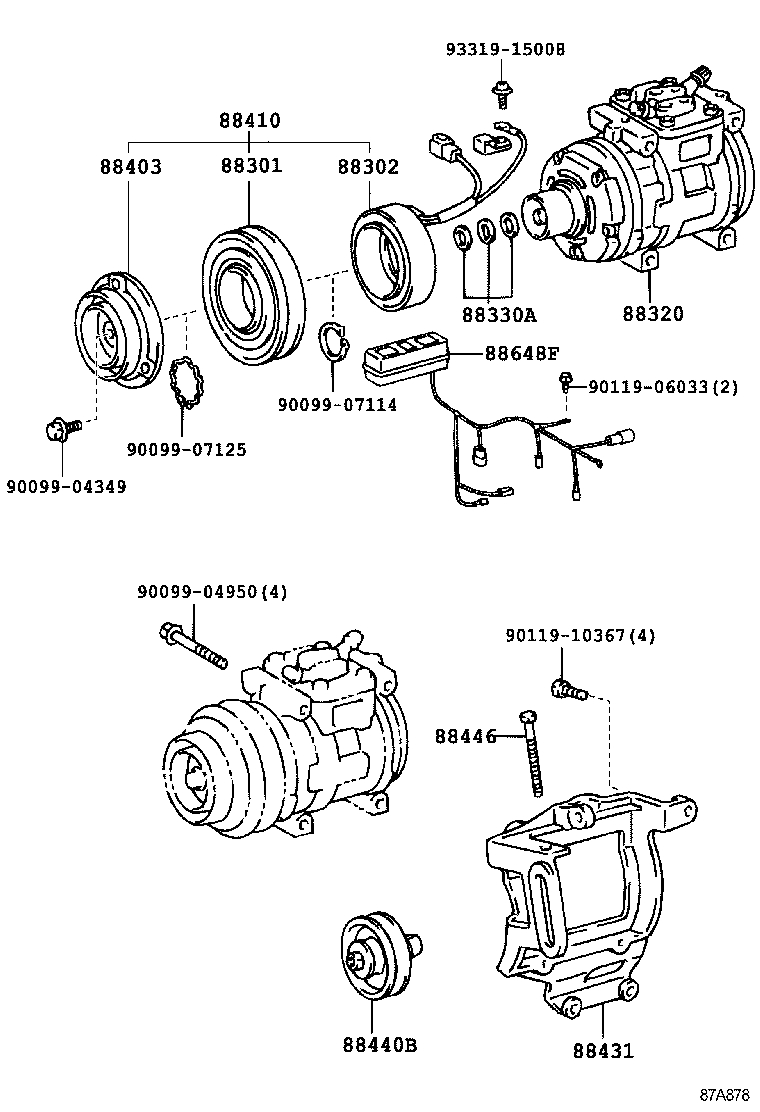

(8809- )YN10#,130,8#

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 88431 88440B 88446 88648F 9009904349 9009904950 9009907114 9009907125 9011906033 9011910367 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-35030

YN10#,8#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-2B080

LN13#,YN10#,8#

 1
88411-2B080

LN13#,YN10#,8#..DLX,SDX,SR,SSRX,STD

 1
88411-2B080

YN107,8#;LN13#,85,YN100..(4FC,5F)..(DLX,SDX,SR,SSRX)

 1
88320 - COMPRESSOR ASSY, COOLER
88320-60620

YN10#,8#

 1
88320-35260

YN10#,8#

 1
88320-35490

LN10#,8#

 1
88320-35250

LN10#,8#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011

YN8#;LN85,YN10#..4FC,5F

 1
88403-16011

YN8#;LN85,VZN130,YN10#..4FC,5F

 1
88403-16011

VZN130,YN10#,8#

 1
88410 - CLUTCH ASSY, MAGNET
88410-35050

YN10#,8#

 1
88410-35040

LN10#,8#..MTM

 1
88410-35040

LN10#,8#

 1
88410-35120

YN10#,8#

 1
88410-90P80

LN10#,8#

 1
88410-35050

YN8#;LN85,YN10#..4FC,5F

 1
88410-60310

YN10#,8#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35160

YN10#,130,8#

 1
88431-35170

LN10#,13#,8#

 1
88440B - PULLEY ASSY, IDLE
88440-35030

LN10#,8#

NO.2

 1
88440-26070

LN10#,13#,8#

NO.1

 1
88440-35030

LN10#,13#,8#

NO.2

 1
88440-35030

LN10#,13#,8#

NO.2

 1
88440-35040

VZN130,YN10#,130,8#

 1
88446 - BOLT, IDLE PULLEY
90099-04321

LN10#,13#,8#

NO.1

 1
88446-35040

LN10#,13#,8#

NO.2

 1
88446-35040

LN10#,13#,8#

NO.2

 1
88446-35030

VZN130,YN10#,130,8#

 1
88446-35040

LN10#,8#

NO.2

 1
88648F - WIRE, MAGNET CLUTCH
88648-89128

LN10#,8#

 1
Common parts
90099-04349
90099-04950
90099-07114
90099-07125
90119-06033
90119-10367
93319-15008
