YN85-TRQDS3 (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

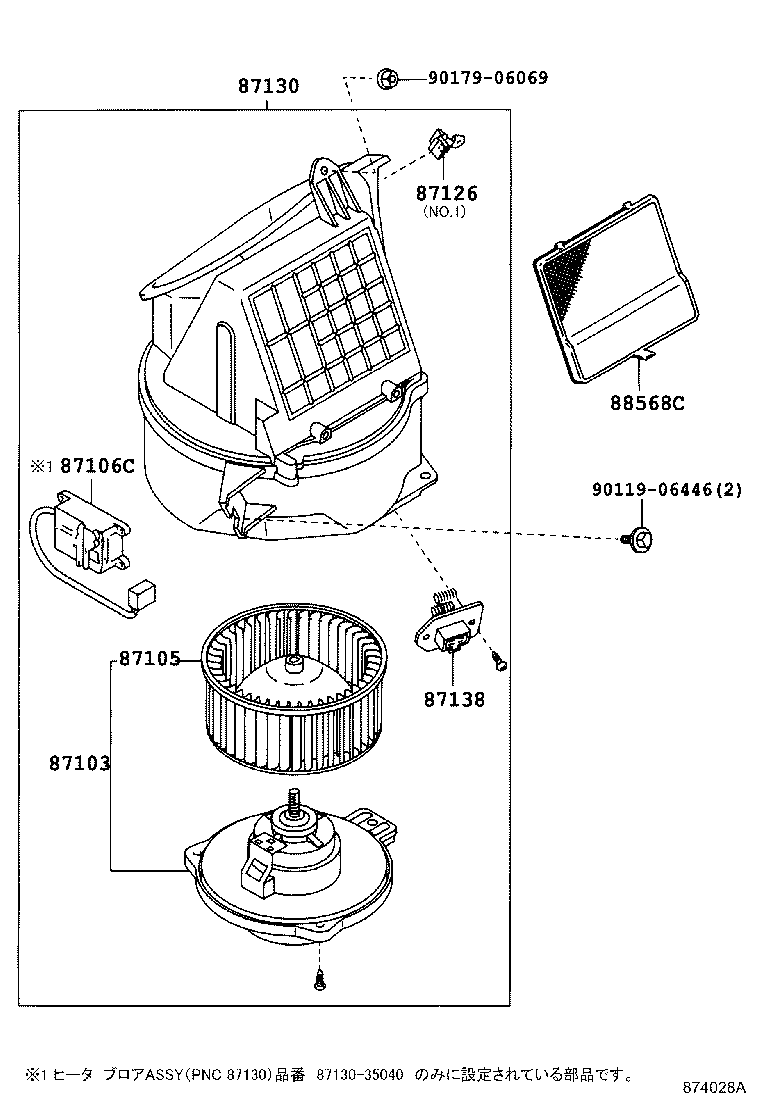

ILLUST NO. 1 OF 3(8809- )

Click highlighted areas on diagram

ﾌﾛﾝﾄﾋ-ﾀ ﾌﾞﾛﾜ

diagram 87103 87105 87106C 87126 87130 87138 88568C 9011906446 9017906069
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-89102

LN10#,13#,8#,YN10#,130,8#

 1
87103-89102

LN10#,8#,YN10#,8#

 1
87103-17010

LN10#,8#,YN10#,8#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-32010

LN10#,8#,YN10#,130,8#

 1
87126 - CLAMP, HEATER CONTROL
87126-12050

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

NO.1

 2
87126-89101

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

NO.2

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-89114

LN10#,8#,YN10#,8#

 1
87130-89114

LN10#,13#,8#,YN10#,130,8#

 1
87130-35010

LN10#,8#,YN10#,8#

 1
87130-35010

LN108,109,112;KZN130,LN100,106,107,13#,8#,YN10#,8#..DLX,SDX,SR,SSR,STD

 1
87138 - RESISTOR, HEATER BLOWER
87138-35020

KZN130,LN10#,112,13#,8#,VZN130,YN10#,8#

 1
87138-89106

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
88568C - FILTER, AIR
88568-89101

KZN130,LN10#,112,13#,8#,VZN130,YN10#,8#

 1
Common parts
90119-06446
90179-06069

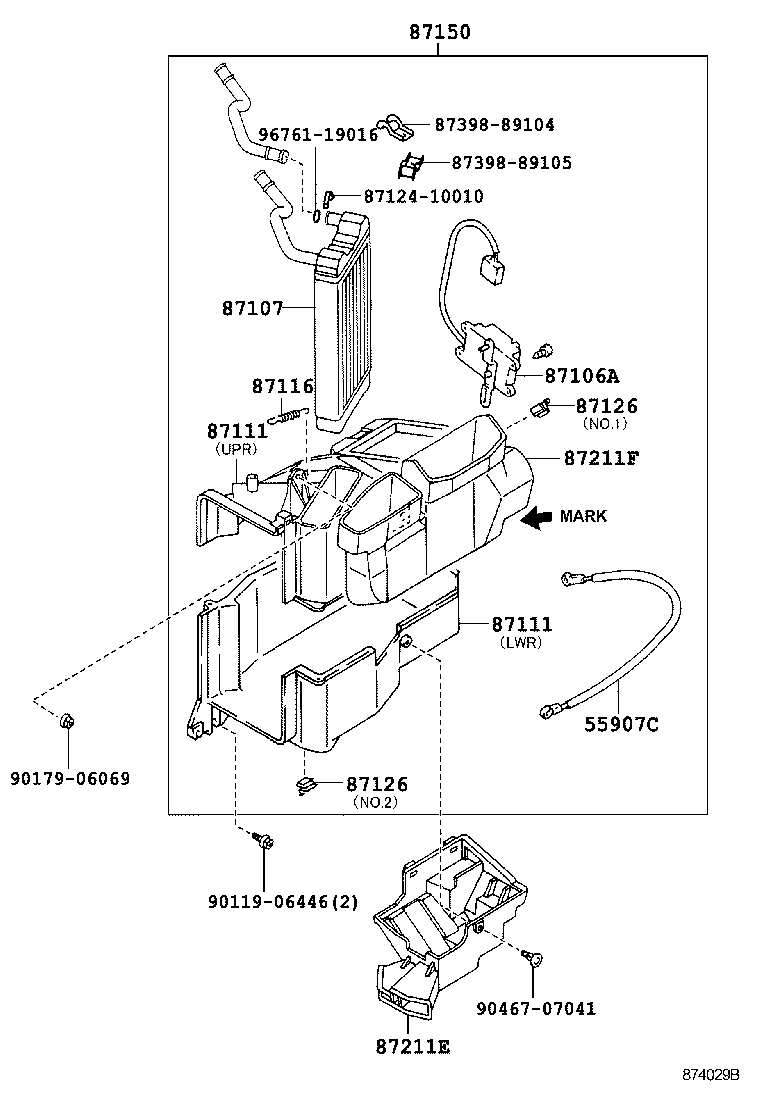

ILLUST NO. 2 OF 3(8809- )

Click highlighted areas on diagram

ﾌﾛﾝﾄﾋ-ﾀ ﾗｼﾞｴ-ﾀ

diagram 55907C 87106A 87107 87111 87111 87116 8712410010 87126 87126 87150 87211E 87211F 8739889104 8739889105 9011906446 9017906069 9046707041 9676119016
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-89119

YN107..SSR;LN10#,112,13#,8#,VZN130,YN8#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ;MARK 4 OR 10 (PNC 87150) : ｲﾗｽﾄｻﾝｼｮｳ

 1
87107-89119

LN10#,13#,8#,VZN130,YN10#,130,8#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ;MARK 4 OR 10 (PNC 87150) : ｲﾗｽﾄｻﾝｼｮｳ

 1
87107-89117

LN10#,112,13#,8#,VZN130,YN10#,130,8#

MARK 2 OR 9 (PNC 87150) : ｲﾗｽﾄｻﾝｼｮｳ

 1
87111 - CASE, HEATER
87111-35050

LN10#,13#,8#,VZN130,YN10#,130,8#

下側

 1
87111-35110

KZN130,LN10#,112,13#,8#,VZN130,YN10#,8#

下側

 1
87111-35040

LN10#,112,13#,8#,VZN130,YN10#,130,8#

上側

 1
87111 - CASE, HEATER
87111-35050

LN10#,13#,8#,VZN130,YN10#,130,8#

下側

 1
87111-35110

KZN130,LN10#,112,13#,8#,VZN130,YN10#,8#

下側

 1
87111-35040

LN10#,112,13#,8#,VZN130,YN10#,130,8#

上側

 1
87116 - SPRING, HEATER CASE FASTENING
87116-89102

KZN130,LN10#,112,13#,8#,VZN130,YN10#,8#

 1
87126 - CLAMP, HEATER CONTROL
87126-12050

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

NO.1

 2
87126-89101

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

NO.2

 1
87126 - CLAMP, HEATER CONTROL
87126-12050

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

NO.1

 2
87126-89101

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

NO.2

 1
87150 - RADIATOR ASSY, HEATER
87150-89117

LN10#,8#,YN10#,8#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87150-89115

LN10#,8#,YN10#,8#

 1
87150-89123

LN10#,13#,8#,VZN130,YN10#,130,8#

ｼｷﾍﾞﾂ ﾗﾍﾞﾙ = 4;ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87211E - DUCT, AIR
87211-89115

LN10#,8#,YN10#,130,8#

 1
87211-89115

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
87211F - DUCT, AIR
87211-35060

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
87211-35070

KZN130,LN10#,112,13#,8#,VZN130,YN10#,8#

 1
Common parts
87124-10010
87398-89104
87398-89105
90119-06446
90179-06069
90467-07041
96761-19016
