YN85-TRQDS3 (1988)
Toyota Hilux
ILLUST NO. 4 OF 6(8809- )

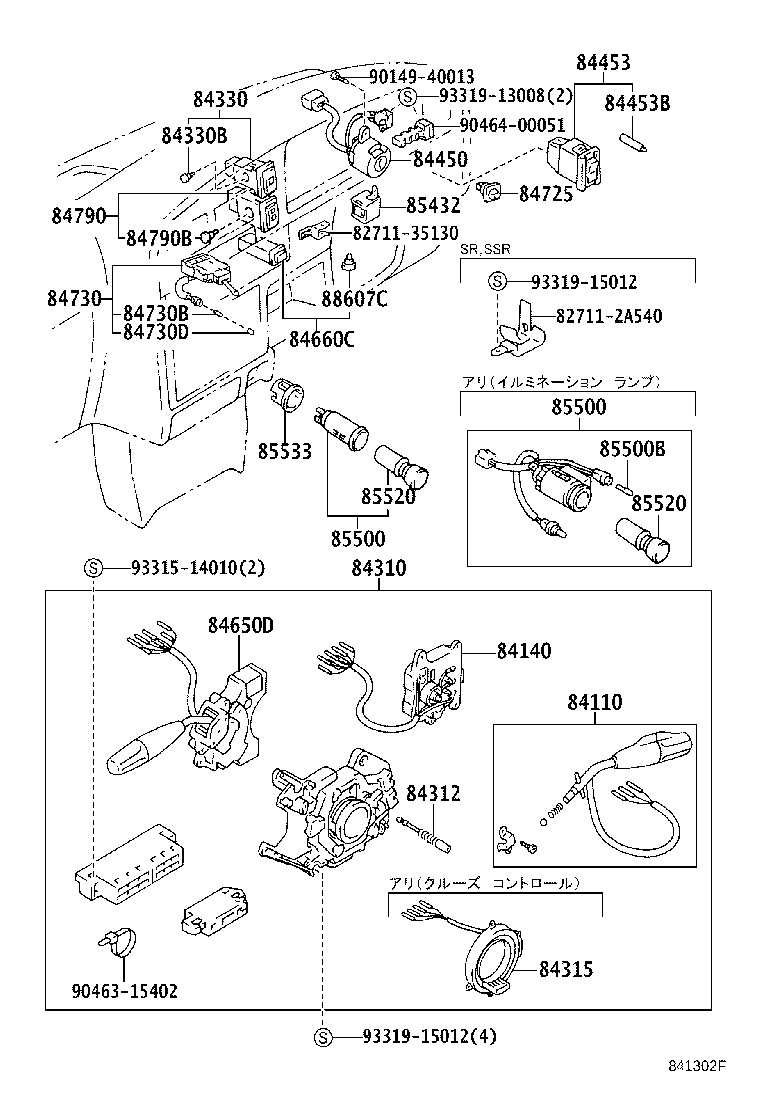

ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39615 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-35090 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-35270 |
LN10#,131,8#,YN10#,8#..DLX,SDX,SR |
1 | ||
| 84310-35540 |
LN8#,YN8#..DLX,SDX |
1 | ||
| 84310-35410 |
LN10#,8#,YN10#,8#..DLX,SDX,SR |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
KZN130,LN10#,112,8#,VZN130,YN10#,8# |
1 | ||
| 84312-12040 |
VZN130..5F;LN10#,13#,8#,YN10#,130,8# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-89115 |
LN10#,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
LN10#,13#,8#,YN10#,130,8# 14V 0.84W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-35090 |
LN10#,8#,YN10#,8# |
1 | ||
| 84450-35090 |
LN85;LN10#,13#,80,VZN130,YN10#,130,8#..MTM |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-35310 |
LN10#,8#,YN10#,8#..DLX,SDX,SR |
1 | ||
| 84652-35170 |
LN10#,131,8#,YN10#,8#..DLX,SDX,SR |
1 | ||
| 84652-35310 |
LN8#,YN8#..DLX,SDX |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-89105 |
LN10#,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 84660-89105 |
KZN130,LN10#,13#,8#,YN10#,8#..DLX,SDX,SR,SSR,STD |
1 | ||
| 84660-89105 |
LN10#,131,8#,YN10#,8# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-89115 |
LN108,109,112;KZN130,LN100,106,107,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
LN108,109,112;KZN130,LN100,106,107,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD 14V 1.4W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
LN108,109,112;KZN130,LN100,106,107,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-89106 |
LN106,8#,YN8#..DLX,STD |
1 | ||
| 85500-12250 |
LN106,8#,YN8#..DLX,STD |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-89106 |
LN106,8#,YN8#..DLX,STD |
1 | ||
| 85500-12250 |
LN106,8#,YN8#..DLX,STD |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-20080 |
LN10#,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-20080 |
LN10#,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
LN106,8#,YN8#..DLX,STD |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-16010 |
LN10#,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| Common parts | ||||
| 82711-2A540 | ||||
| 82711-35130 | ||||
| 90149-40013 | ||||
| 90463-15402 | ||||
| 90464-00051 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
ILLUST NO. 2 OF 6(8809- )LN10#,112,13#,8#

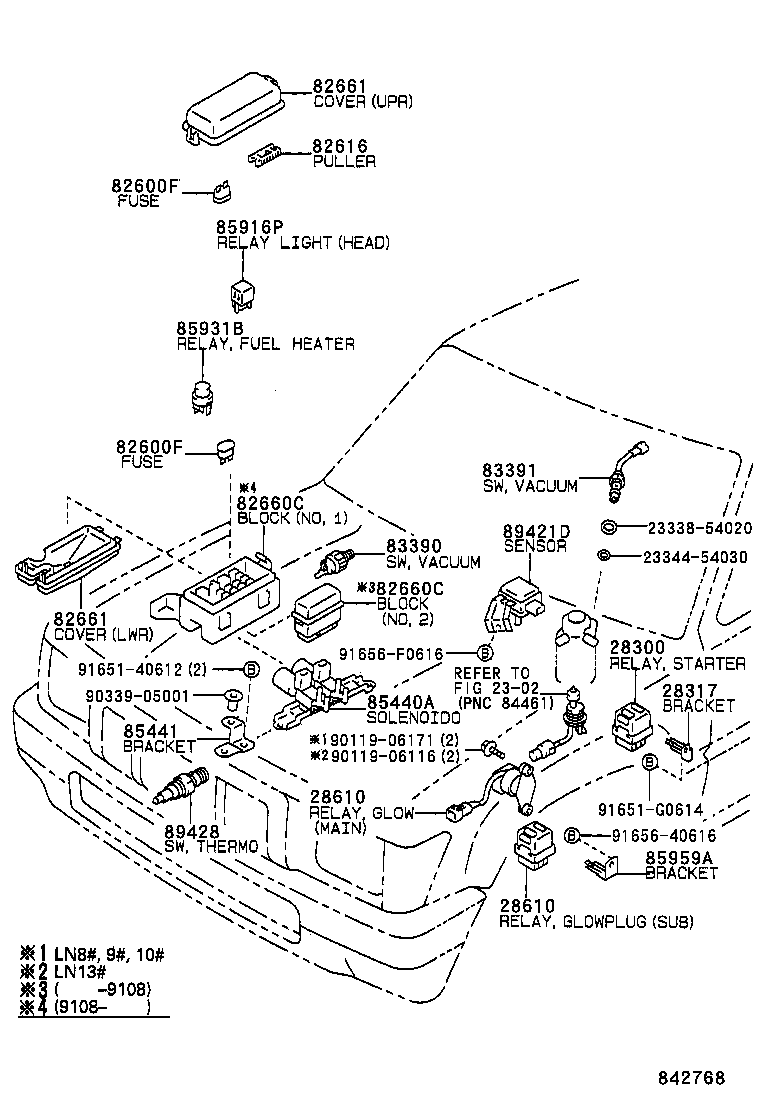

ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02009 |
3VZE,2Y,3Y..VZN130,YN10#,8# |
1 | ||
| 28300-10020 |
3VZE,2Y,3Y..VZN130,YN10#,8# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
LN85,VZN130,YN130;LN10#,13#,80,YN10#,8#..MTM 10A |
1 | ||
| 90982-09005 |
LN85,VZN130,YN130;LN10#,13#,80,YN10#,8#..MTM 7.5A |
1 | ||
| 90982-09003 |
LN85,VZN130,YN130;LN10#,13#,80,YN10#,8#..MTM 15A |
1 | ||
| 90982-09004 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# 20A,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
LN85,VZN130,YN130;LN10#,13#,80,YN10#,8#..MTM 10A |
1 | ||
| 90982-09005 |
LN85,VZN130,YN130;LN10#,13#,80,YN10#,8#..MTM 7.5A |
1 | ||
| 90982-09003 |
LN85,VZN130,YN130;LN10#,13#,80,YN10#,8#..MTM 15A |
1 | ||
| 90982-09004 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# 20A,黄 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-89102 |
KZN130,LN13#,VZN130,YN10#,8# |
1 | ||
| 82616-89102 |
LN10#,13#,8#,VZN130,YN10#,130,8# |
1 | ||

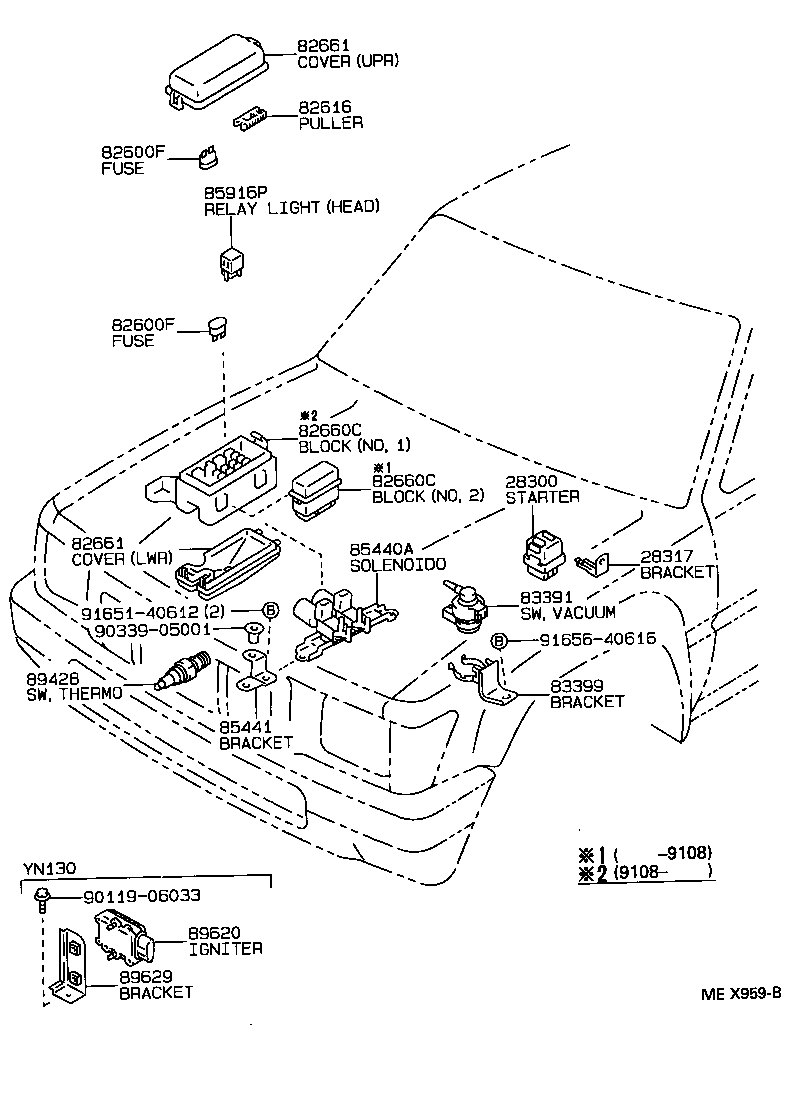

| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-35030 |
LN10#,13#,8#,VZN130,YN10#,8# |
1 | ||
| 82660-35100 |
YN10#,8# NO.1 |
1 | ||
| 82660-35030 |
LN85,VZN130..4FC,5H;LN10#,13#,80,YN10#,8#..MTM |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-35030 |
LN10#,13#,8#,VZN130,YN10#,8# |
1 | ||
| 82660-35100 |
YN10#,8# NO.1 |
1 | ||
| 82660-35030 |
LN85,VZN130..4FC,5H;LN10#,13#,80,YN10#,8#..MTM |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-89101 |
LN10#,13#,8#,VZN130,YN10#,130,8# 下側 |
1 | ||
| 82662-35020 |
LN10#,8#,YN10#,8# 上側 |
1 | ||
| 82662-89102 |
LN10#,8#,YN10#,8# 上側 |
1 | ||
| 82662-35180 |
LN10#,8#,YN10#,8# 上側 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-89101 |
LN10#,13#,8#,VZN130,YN10#,130,8# 下側 |
1 | ||
| 82662-35020 |
LN10#,8#,YN10#,8# 上側 |
1 | ||
| 82662-89102 |
LN10#,8#,YN10#,8# 上側 |
1 | ||
| 82662-35180 |
LN10#,8#,YN10#,8# 上側 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
LN10#,13#,8# |
1 | ||
| 83390-30100 |
KZN130,LN10#,112,13#,8# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-20050 |
YN10#,8# |
1 | ||
| 83391-32020 |
KZN130,LN10#,112,13#,8# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02004 |
LN10#,13#,8# |
1 | ||
| 90987-02009 |
KZN130,LN10#,112,13#,8# |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-35020 |
KZN130,LN10#,112,13#,8# |
1 | ||
| Common parts | ||||
| 23338-54020 | ||||
| 23344-54030 | ||||
| 90119-06116 | ||||
| 90119-06171 | ||||
| 90339-05001 | ||||
| 91651-40612 | ||||
| 91651-G0614 | ||||
| 91656-40616 | ||||
| 91656-F0616 | ||||
| Linked diagrams | ||||
| 2302 | ||||
ILLUST NO. 1 OF 6(8809- )LN10#,112,13#,8#
ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ,ﾄﾗﾝｽﾌｱ&ﾃﾞｨﾌｧﾚﾝｼｬﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

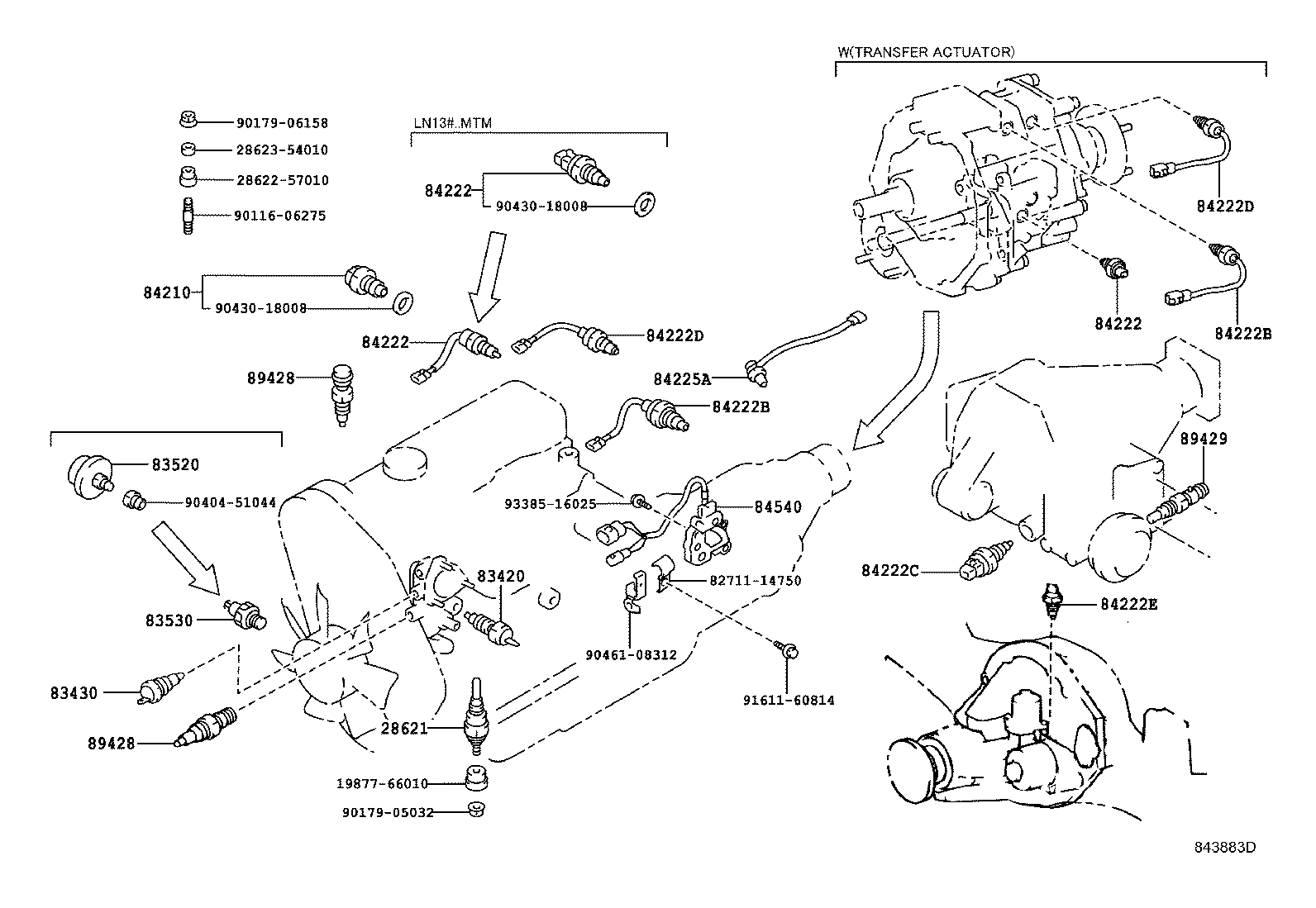

| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
VZN130..SSR;LN10#,13#,8#,YN10#,130,8# |
1 | ||
| 83420-16040 |
LN10#,13#,8#,YN10#,8# |
1 | ||
| 83420-16040 |
KZN130,LN10#,112,8#,YN10#,8# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
YN8# |
1 | ||
| 83530-30060 |
LN106,8#..DLX,SDX |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
KZN130,LN100,106,107,109,13#,8#,VZN130,YN10#,130,8#..MTM |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 82711-14750 | ||||
| 90116-06275 | ||||
| 90179-05032 | ||||
| 90179-06158 | ||||
| 90404-51044 | ||||
| 90430-18008 | ||||
| 90461-08312 | ||||
| 91611-60814 | ||||
| 93385-16025 | ||||

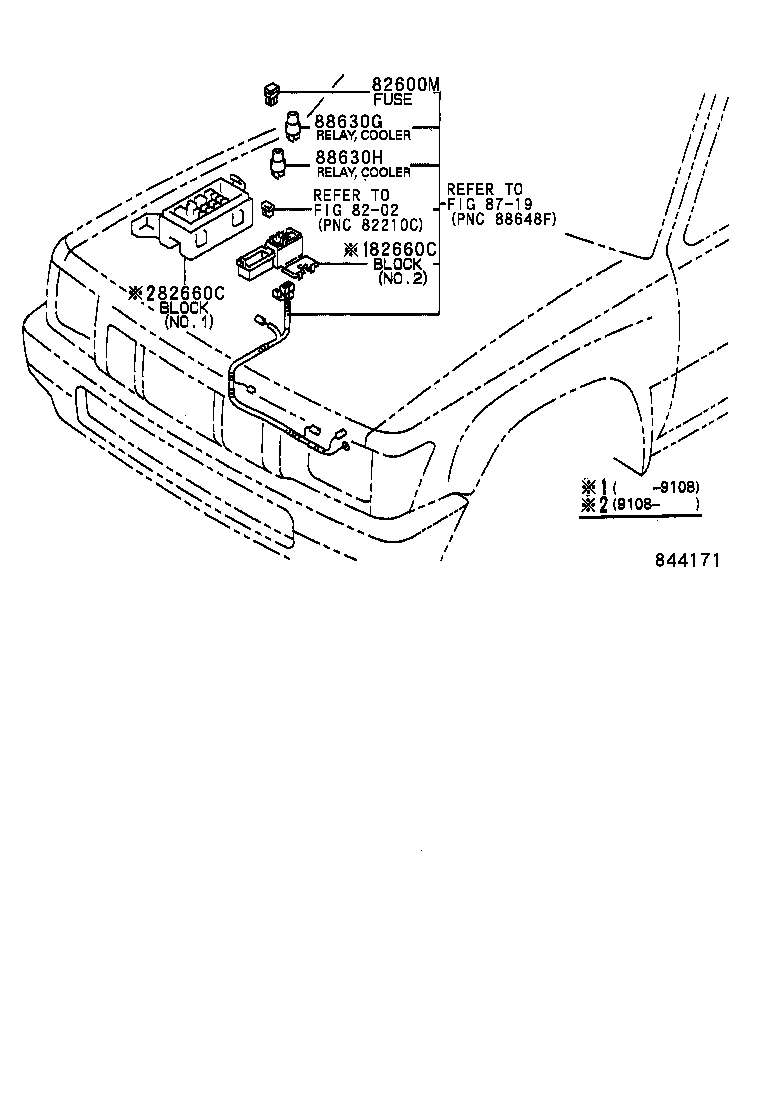

ILLUST NO. 3 OF 6(8809- )
ﾘﾚ-ﾌﾞﾛﾂｸ & ｴｱｺﾝ ﾖｳ ﾘﾚ-ﾌﾞﾛﾂｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-35030 |
LN10#,13#,8#,VZN130,YN10#,8# |
1 | ||
| 82660-35100 |
YN10#,8# NO.1 |
1 | ||
| 82660-35030 |
LN85,VZN130..4FC,5H;LN10#,13#,80,YN10#,8#..MTM |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-35030 |
LN10#,13#,8#,VZN130,YN10#,8# |
1 | ||
| 82660-35100 |
YN10#,8# NO.1 |
1 | ||
| 82660-35030 |
LN85,VZN130..4FC,5H;LN10#,13#,80,YN10#,8#..MTM |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||
| 8719 | ||||
ILLUST NO. 6 OF 6(8809- )LN10#,112,8#,YN10#,8#
ﾄﾞｱ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

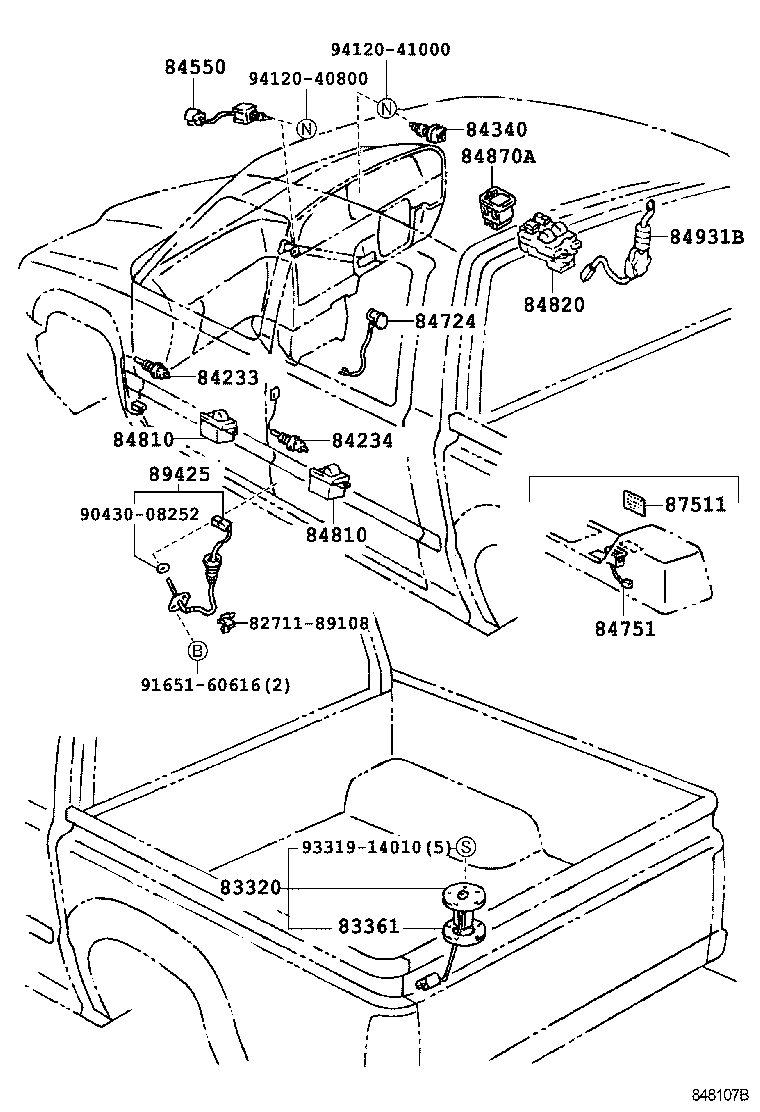

| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80118 |
LN85,86,YN85 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12120 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
VZN130..5F;LN10#,13#,8#,YN10#,130,8# |
1 | ||
| 84340-32050 |
KZN130,LN10#,112,8#,VZN130,YN10#,8# |
1 | ||
| 84340-30030 |
LN10#,13#,8#,YN10#,130,8# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-35010 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-39245 |
YN8# |
1 | ||
| 89425-39325 |
YN8# |
1 | ||
| Common parts | ||||
| 82711-89108 | ||||
| 90430-08252 | ||||
| 91651-60616 | ||||
| 93319-14010 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
ILLUST NO. 1 OF 6(8809- )YN10#,130,8#

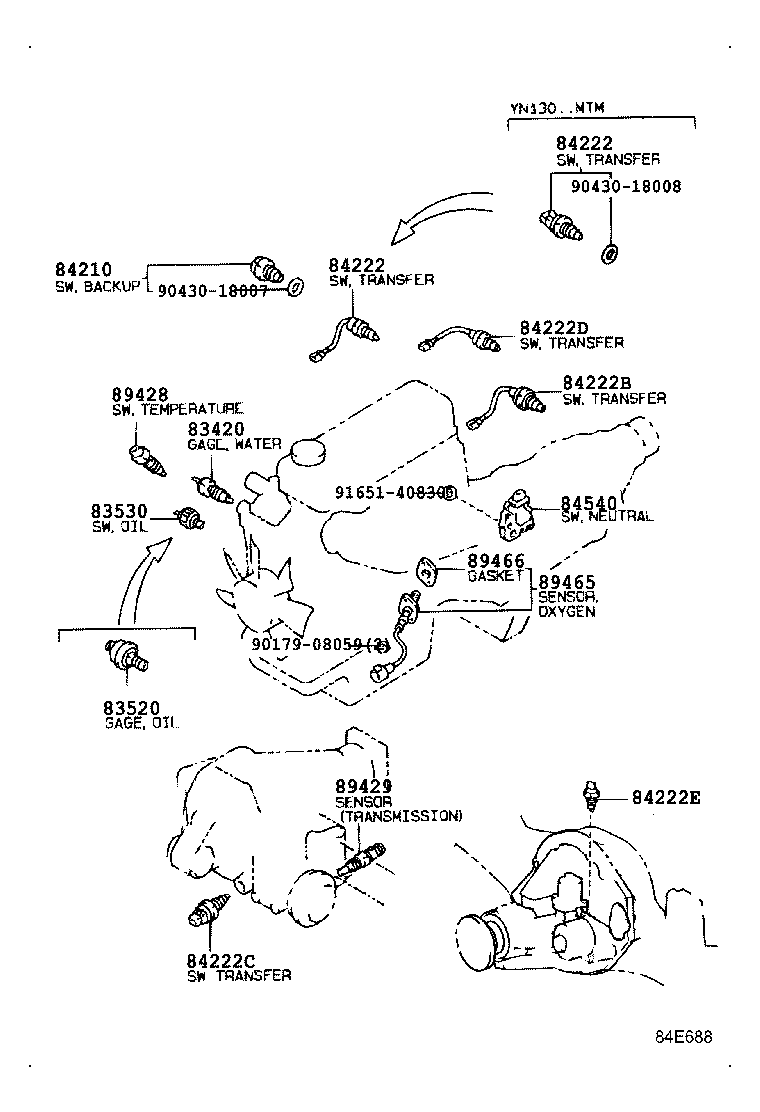

ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ,ﾄﾗﾝｽﾌｱ&ﾃﾞｨﾌｧﾚﾝｼｬﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
VZN130..SSR;LN10#,13#,8#,YN10#,130,8# |
1 | ||
| 83420-16040 |
LN10#,13#,8#,YN10#,8# |
1 | ||
| 83420-16040 |
KZN130,LN10#,112,8#,YN10#,8# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
YN8# |
1 | ||
| 83530-30060 |
LN106,8#..DLX,SDX |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
KZN130,LN100,106,107,109,13#,8#,VZN130,YN10#,130,8#..MTM |
1 | ||
| Common parts | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90430-18008 | ||||
| 91651-40830 | ||||
ILLUST NO. 5 OF 6(8809- )
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ,ｶｳﾙ ﾘﾚ- & ｺﾝﾋﾟﾕ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
LN85,VZN130,YN130;LN10#,13#,80,YN10#,8#..MTM 10A |
1 | ||
| 90982-09005 |
LN85,VZN130,YN130;LN10#,13#,80,YN10#,8#..MTM 7.5A |
1 | ||
| 90982-09003 |
LN85,VZN130,YN130;LN10#,13#,80,YN10#,8#..MTM 15A |
1 | ||
| 90982-09004 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# 20A,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
LN85,VZN130,YN130;LN10#,13#,80,YN10#,8#..MTM 10A |
1 | ||
| 90982-09005 |
LN85,VZN130,YN130;LN10#,13#,80,YN10#,8#..MTM 7.5A |
1 | ||
| 90982-09003 |
LN85,VZN130,YN130;LN10#,13#,80,YN10#,8#..MTM 15A |
1 | ||
| 90982-09004 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# 20A,黄 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-89115 |
LN10#,8#,YN10#,8# |
1 | ||
| 82683-89104 |
LN10#,8#,YN10#,8# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-35070 |
LN106,8#,YN8#..DLX,STD |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
LN10#,13#,8#,VZN130,YN10#,130,8# 30A |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-89110 |
LN10#,13#,8#,YN10#,130,8# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-01003 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 85924A - BRACKET,COOLING FAN | ||||
| 85924-35010 |
LN10#,112,13#,8# |
1 | ||
| 89390 - RELAY, BRAKE WARNING | ||||
| 89390-35010 |
LN10#,112,13#,8# |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-35480 |
YN8# |
1 | ||
| 89550-35340 |
YN8# |
1 | ||
| Common parts | ||||
| 90159-50098 | ||||
| 91656-40616 | ||||
| 93319-15010 | ||||
| 93560-55014 | ||||
ILLUST NO. 2 OF 6(8809- )YN10#,130,8#
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02009 |
3VZE,2Y,3Y..VZN130,YN10#,8# |
1 | ||
| 28300-10020 |
3VZE,2Y,3Y..VZN130,YN10#,8# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
LN85,VZN130,YN130;LN10#,13#,80,YN10#,8#..MTM 10A |
1 | ||
| 90982-09005 |
LN85,VZN130,YN130;LN10#,13#,80,YN10#,8#..MTM 7.5A |
1 | ||
| 90982-09003 |
LN85,VZN130,YN130;LN10#,13#,80,YN10#,8#..MTM 15A |
1 | ||
| 90982-09004 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# 20A,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
LN85,VZN130,YN130;LN10#,13#,80,YN10#,8#..MTM 10A |
1 | ||
| 90982-09005 |
LN85,VZN130,YN130;LN10#,13#,80,YN10#,8#..MTM 7.5A |
1 | ||
| 90982-09003 |
LN85,VZN130,YN130;LN10#,13#,80,YN10#,8#..MTM 15A |
1 | ||
| 90982-09004 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# 20A,黄 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-89102 |
KZN130,LN13#,VZN130,YN10#,8# |
1 | ||
| 82616-89102 |
LN10#,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-35030 |
LN10#,13#,8#,VZN130,YN10#,8# |
1 | ||
| 82660-35100 |
YN10#,8# NO.1 |
1 | ||
| 82660-35030 |
LN85,VZN130..4FC,5H;LN10#,13#,80,YN10#,8#..MTM |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-35030 |
LN10#,13#,8#,VZN130,YN10#,8# |
1 | ||
| 82660-35100 |
YN10#,8# NO.1 |
1 | ||
| 82660-35030 |
LN85,VZN130..4FC,5H;LN10#,13#,80,YN10#,8#..MTM |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-89101 |
LN10#,13#,8#,VZN130,YN10#,130,8# 下側 |
1 | ||
| 82662-35020 |
LN10#,8#,YN10#,8# 上側 |
1 | ||
| 82662-89102 |
LN10#,8#,YN10#,8# 上側 |
1 | ||
| 82662-35180 |
LN10#,8#,YN10#,8# 上側 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-89101 |
LN10#,13#,8#,VZN130,YN10#,130,8# 下側 |
1 | ||
| 82662-35020 |
LN10#,8#,YN10#,8# 上側 |
1 | ||
| 82662-89102 |
LN10#,8#,YN10#,8# 上側 |
1 | ||
| 82662-35180 |
LN10#,8#,YN10#,8# 上側 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-20050 |
YN10#,8# |
1 | ||
| 83391-32020 |
KZN130,LN10#,112,13#,8# |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-35020 |
YN10#,8# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| Common parts | ||||
| 90119-06033 | ||||
| 90339-05001 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
