YN85-TRQDS3 (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )LN8#,YN8#

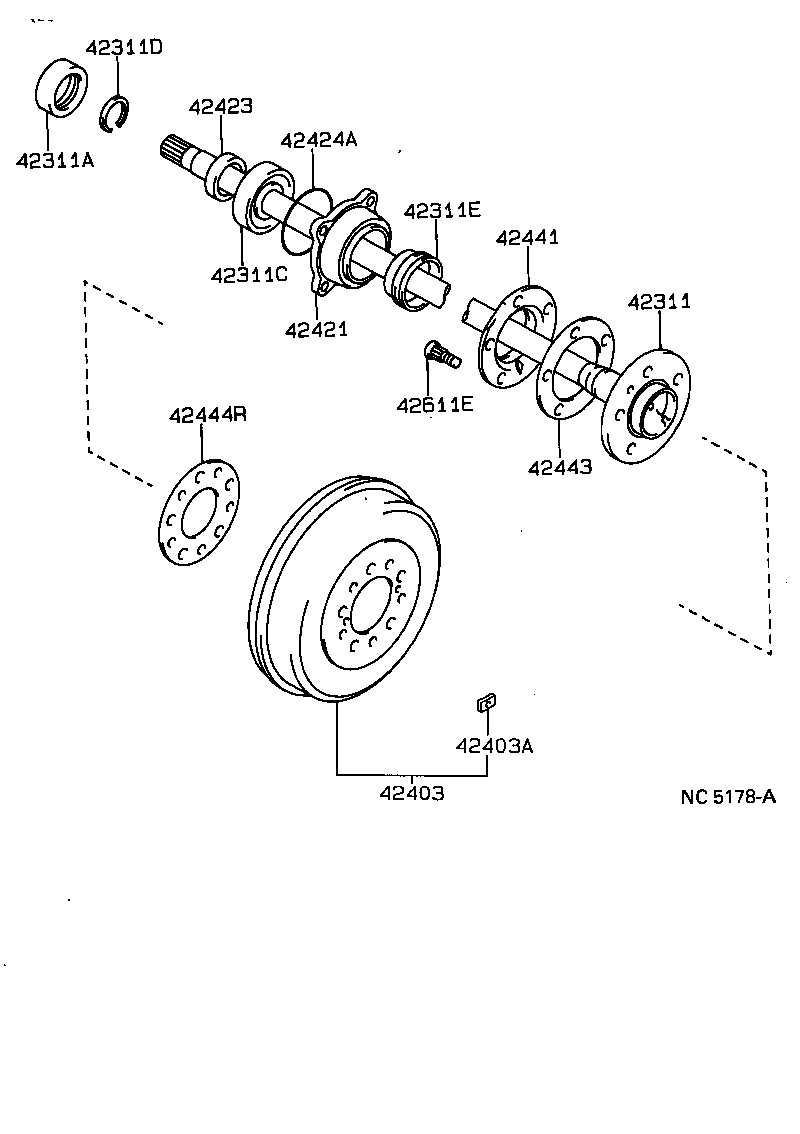

Click highlighted areas on diagram

diagram 42311 42311A 42311C 42311D 42311E 42403 42403A 42421 42423 42424A 42441 42443 42444R 42611E
Part # Description Qty Price
42311 - SHAFT, REAR AXLE
42311-35170

LN8#,YN8#..T1,T3,TW1

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90310-50001

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
90363-40020

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
42311D - RING, SNAP (FOR REAR AXLE SHAFT)
90520-36045

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
90313-48001

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-35190

LN8#,YN8#..T1,T3,TW1

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01117

KZN130,LN10#,112,13#,8#,VZN130,YN10#,8#..2D,4D,T1,T3,TW1

10G

 1
90937-01100

LN8#,YN8#..T1,T3,TW1

40.5G

 1
90937-01119

KZN130,LN10#,112,13#,8#,VZN130,YN10#,8#..2D,4D,T1,T3,TW1

30G

 1
90937-01118

KZN130,LN10#,112,13#,8#,VZN130,YN10#,8#..2D,4D,T1,T3,TW1

20G

 1
42421 - CASE, REAR AXLE BEARING
42421-35030

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
42423 - RETAINER, REAR AXLE BEARING, INNER
42423-20010

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
42424A - RING, O (FOR BEARING RETAINER SET)
90301-88077

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
42441 - DEFLECTOR, BRAKE DRUM OIL
42441-26010

LN8#,YN8#

 2
42443 - GASKET, BRAKE DRUM OIL DEFLECTOR
42443-30010

LN8#,YN8#

 2
42444R - GASKET, BRAKE DRUM (FOR REAR AXLE)
42444-35070

LN8#,YN8#

 2
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02049

LN8#,YN8#..T1,T3,TW1

 10
