YN85-TRQDS (1988)
Toyota Hilux

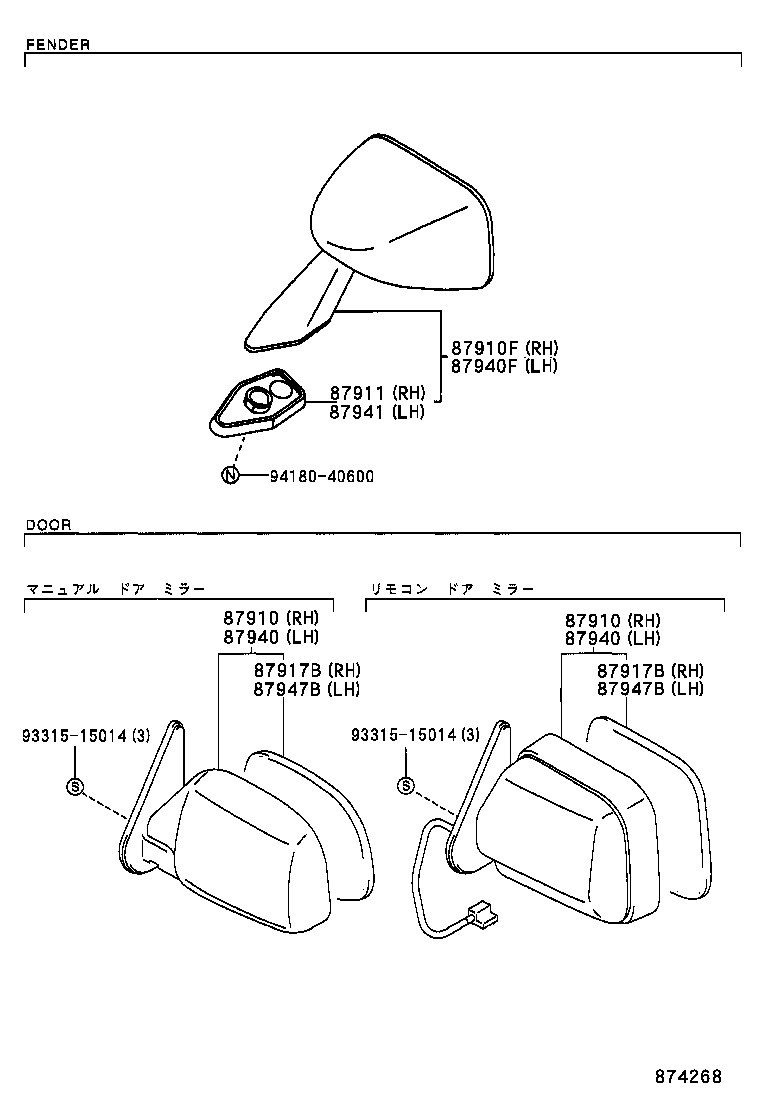

ILLUST NO. 2 OF 3(8809- )
ｱｳﾀﾐﾗ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-89147 |
LN8#,YN8# 塗装不要 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-89147 |
LN8#,YN8# 塗装不要 |
1 | ||
| 87910F - MIRROR ASSY, FENDER, RH | ||||
| 87910-89151 |
LN10#,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 87910-89151 |
LN100,106,107,108,8#,YN10#,8# |
1 | ||
| 87911 - GASKET, OUTER REAR VIEW MIRROR, RH | ||||
| 87911-89116 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-89145 |
LN8#,YN8# 塗装不要 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-89145 |
LN8#,YN8# 塗装不要 |
1 | ||
| 87940F - MIRROR ASSY, FENDER, LH | ||||
| 87940-89148 |
LN10#,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 87940-89148 |
LN100,106,107,108,8#,YN10#,8# |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87941-89113 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| Common parts | ||||
| 93315-15014 | ||||
| 94180-40600 | ||||

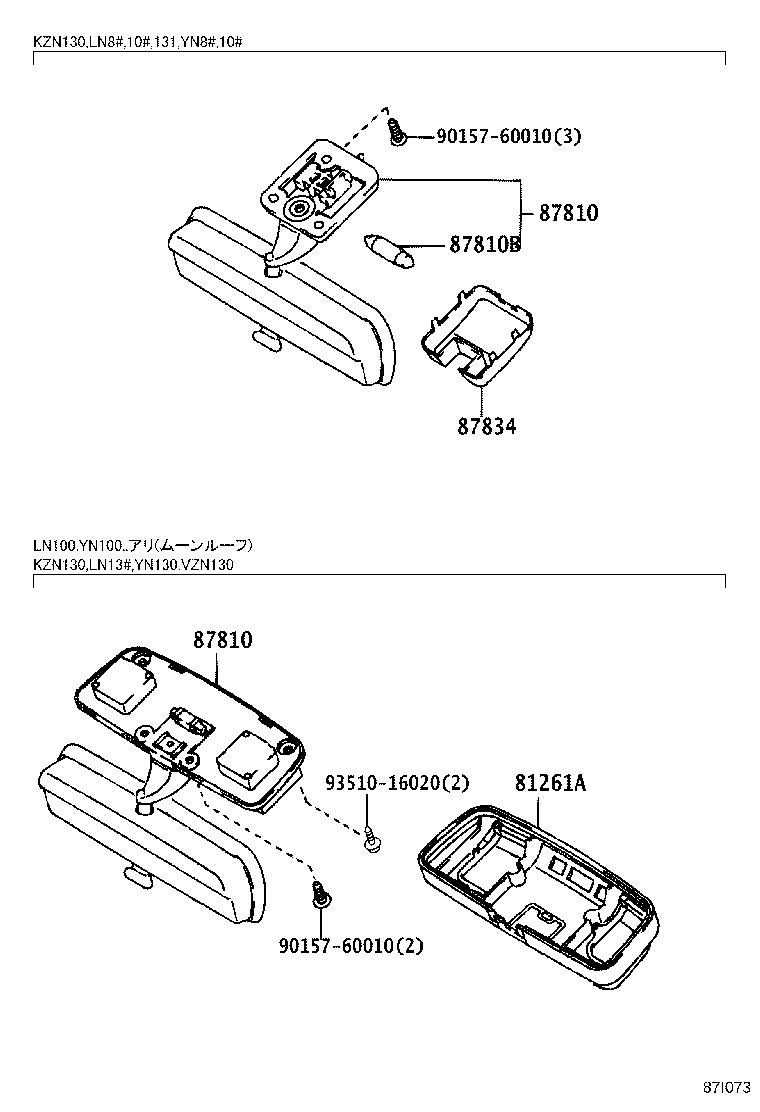

ILLUST NO. 1 OF 3(8809- )
ｲﾝﾅﾐﾗ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-8913504 |
YN8#..RCB..(DLX,STD) BLUE,TRIM8# |
1 | ||
| 87810-8913506 |
YN8#..RCB..(DLX,STD) BROWN,TRIM4# |
1 | ||
| 87810-8913604 |
LN106,8#..RCB..DLX BLUE,TRIM8# |
1 | ||
| 87810-8913503 |
YN8#..RCB..(DLX,STD) GRAY,TRIM1# |
1 | ||
| 87810-89135B0 |
YN8#..RCB..(DLX,STD) SLATE GRAY,TRIM1# |
1 | ||
| 87810-8913603 |
LN106,8#..RCB..DLX GRAY,TRIM1# |
1 | ||
| 87810-89136J1 |
LN106,8#..RCB..DLX BLUE,TRIM8# |
1 | ||
| 87810-89135J1 |
YN8#..RCB..DLX LIGHT BLUE,TRIM8# |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-8913504 |
YN8#..RCB..(DLX,STD) BLUE,TRIM8# |
1 | ||
| 87810-8913506 |
YN8#..RCB..(DLX,STD) BROWN,TRIM4# |
1 | ||
| 87810-8913604 |
LN106,8#..RCB..DLX BLUE,TRIM8# |
1 | ||
| 87810-8913503 |
YN8#..RCB..(DLX,STD) GRAY,TRIM1# |
1 | ||
| 87810-89135B0 |
YN8#..RCB..(DLX,STD) SLATE GRAY,TRIM1# |
1 | ||
| 87810-8913603 |
LN106,8#..RCB..DLX GRAY,TRIM1# |
1 | ||
| 87810-89136J1 |
LN106,8#..RCB..DLX BLUE,TRIM8# |
1 | ||
| 87810-89135J1 |
YN8#..RCB..DLX LIGHT BLUE,TRIM8# |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 99132-13050 |
LN100,106,8#,YN100,8#..RCB 12V 5W |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-89104 |
LN100,106,8#,YN100,8#..RCB |
1 | ||
| Common parts | ||||
| 90157-60010 | ||||
| 93510-16020 | ||||

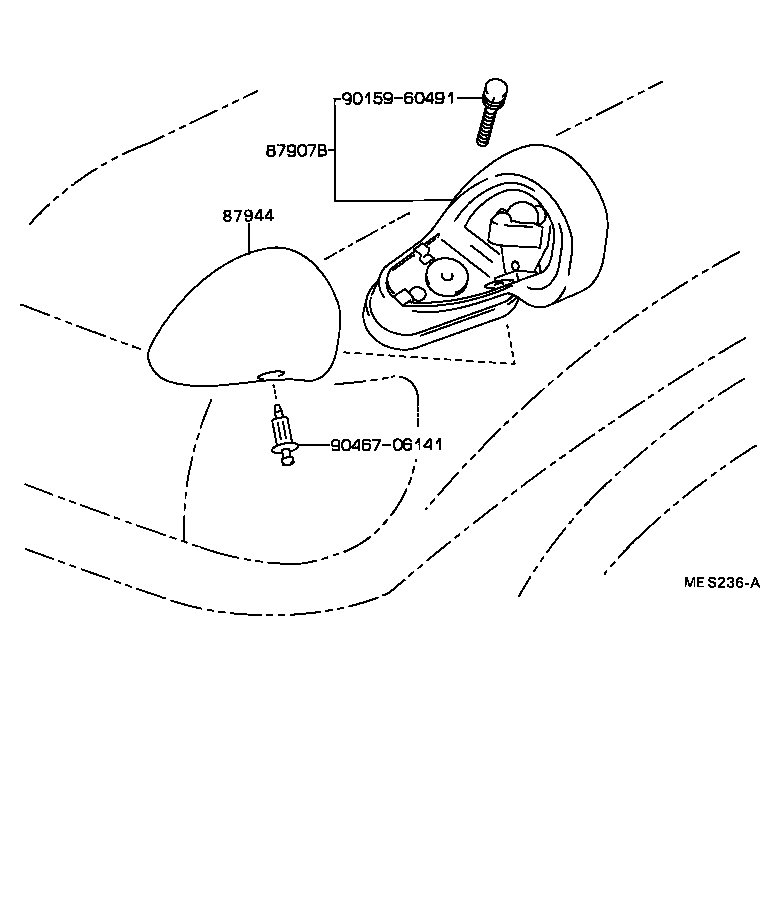

ILLUST NO. 3 OF 3(9108- )
ﾌﾛﾝﾄﾌｴﾝﾀﾞ ｻｲﾄﾞﾋﾞﾕ-ﾃﾞｲﾊﾞｲｽ(ﾎｼﾞﾖﾐﾗ-)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60491 | ||||
| 90467-06141 | ||||
