YN85-TRQDS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

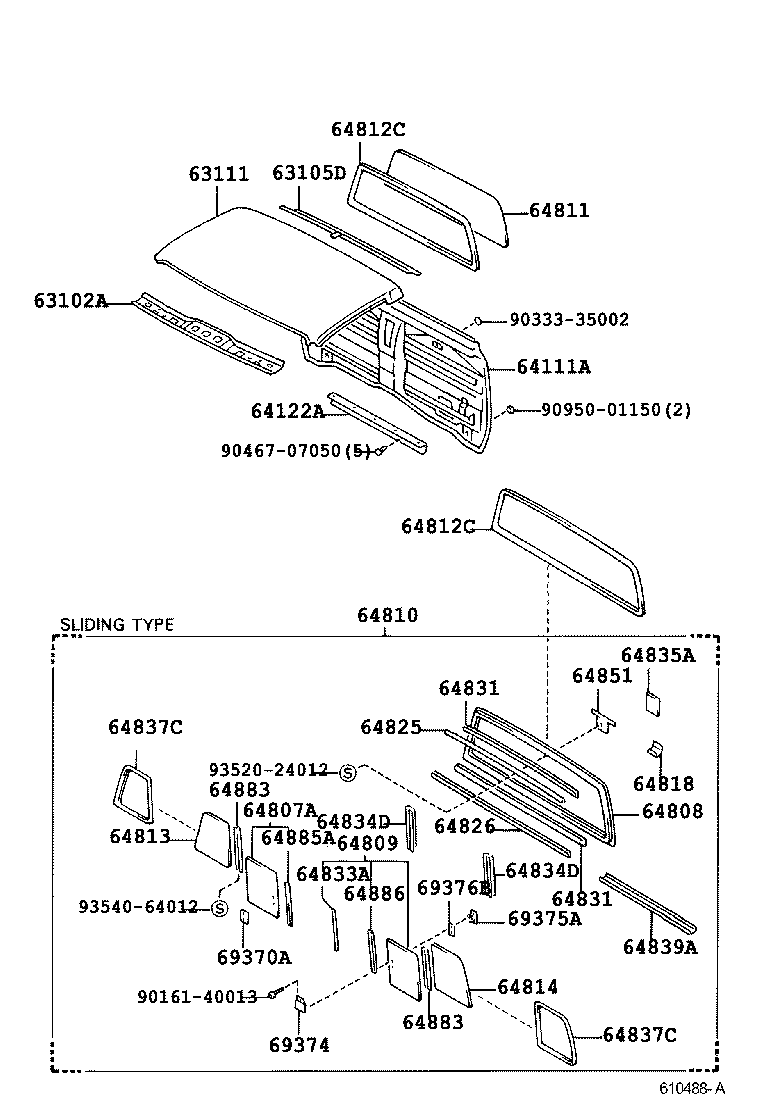

ILLUST NO. 1 OF 2(8809- )RCB

Click highlighted areas on diagram

diagram 63102A 63105D 63111 64111A 64122A 64807A 64808 64809 64810 64811 64812C 64812C 64813 64814 64818 64825 64826 64831 64831 64833A 64834D 64834D 64835A 64837C 64837C 64839A 64851 64883 64883 64885A 64886 69370A 69374 69375A 69376B 9016140013 9033335002 9046707050 9095001150 9352024012 9354064012
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-89107

LN100,106,8#,YN100,8#..RCB

 1
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-35020

LN100,106,8#,YN100,8#..RCB

 1
63105-89106

LN100,106,8#,YN100,8#..RCB

 1
63111 - PANEL, ROOF
63111-89118

LN100,106,8#,YN100,8#..RCB

 1
64111A - PANEL, BACK
64101-89152

LN106,8#,YN8#..RCB..(DLX,STD)

 1
64101-89144

LN106,8#,YN8#..RCB..(DLX,STD)

 1
64811 - GLASS, BACK WINDOW
64811-89120

LN86,YN86..DLX;LN106,80,81,85,YN80,81,85..DLX,SDX

*TT,厚さ=3.5

 1
64812C - WEATHERSTRIP, BACK WINDOW GLASS
64812-89108

LN86,YN86..DLX;LN106,80,81,85,YN80,81,85..DLX,SDX,STD

 1
64812C - WEATHERSTRIP, BACK WINDOW GLASS
64812-89108

LN86,YN86..DLX;LN106,80,81,85,YN80,81,85..DLX,SDX,STD

 1
Common parts
90161-40013
90333-35002
90467-07050
90950-01150
93520-24012
93540-64012
