YN85-TRQDS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )2Y,3Y#

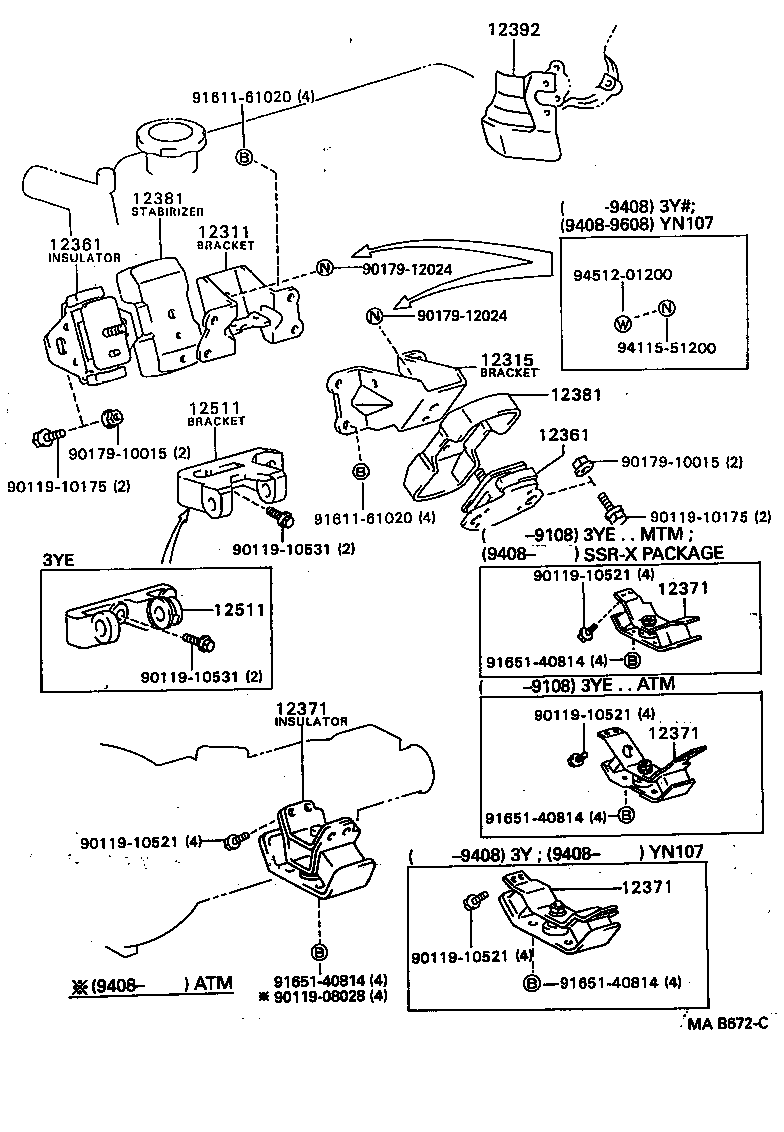

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 12371 12371 12381 12381 12392 12511 12511 9011908028 9011910175 9011910175 9011910521 9011910521 9011910521 9011910521 9011910531 9011910531 9017910015 9017910015 9017912024 9017912024 9161161020 9161161020 9165140814 9165140814 9165140814 9165140814 9411551200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-71010

2Y,3YE..YN8#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-71010

2Y,3YE..YN8#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-35050

2Y,3Y..YN10#,8#

 2
12361-35050

2Y,3YE..YN8#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-35050

2Y,3Y..YN10#,8#

 2
12361-35050

2Y,3YE..YN8#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34030

2Y..YN8#

 1
12371-35070

2Y,3YE..YN8#..5H

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34030

2Y..YN8#

 1
12371-35070

2Y,3YE..YN8#..5H

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34030

2Y..YN8#

 1
12371-35070

2Y,3YE..YN8#..5H

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34030

2Y..YN8#

 1
12371-35070

2Y,3YE..YN8#..5H

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-73010

2Y,3Y#..YN10#,130,8#

 2
12381-73010

2Y,3YE..YN8#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-73010

2Y,3Y#..YN10#,130,8#

 2
12381-73010

2Y,3YE..YN8#

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-71010

2Y,3Y..YN10#,8#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-71010

2Y,3Y..YN10#,8#

 1
Common parts
90119-08028
90119-10175
90119-10521
90119-10531
90179-10015
90179-12024
91611-61020
91651-40814
94115-51200
94512-01200
