YN85-TLQDS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )LN10#,112,13#,8#,YN10#,130,8#

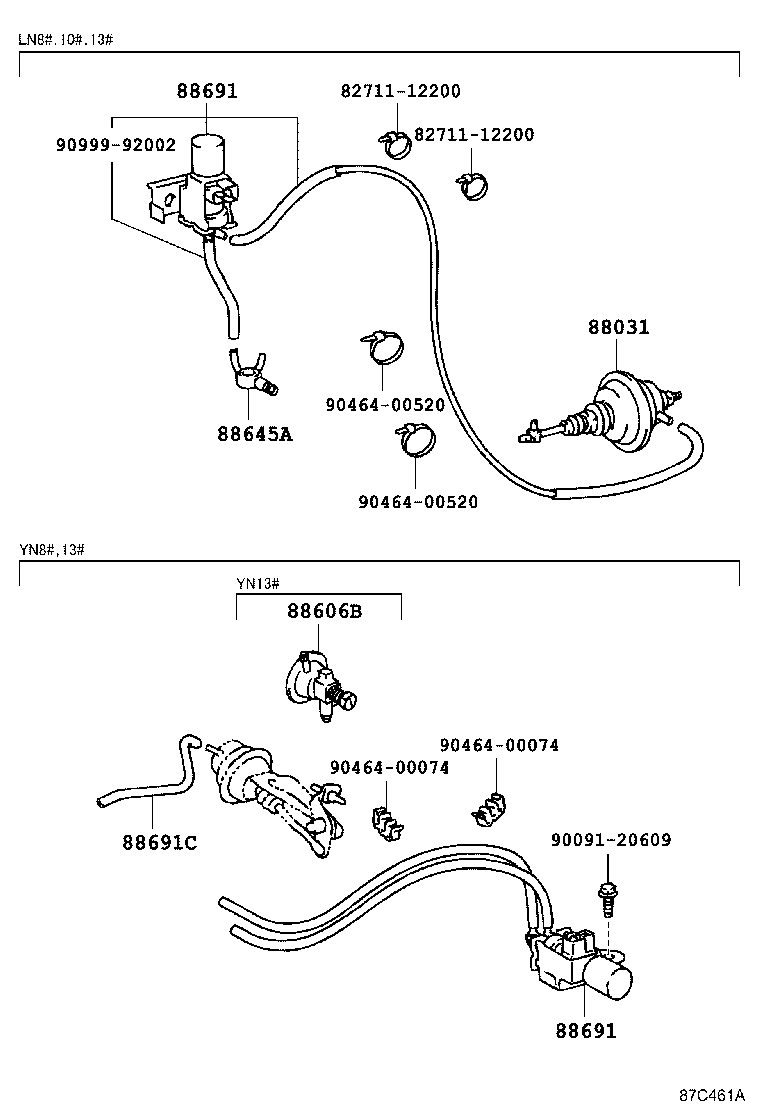

Click highlighted areas on diagram

diagram 8271112200 8271112200 88031 88606B 88645A 88691 88691 88691C 9009120609 9046400074 9046400074 9046400520 9046400520 9099992002
Part # Description Qty Price
88645A - UNION (FOR IDLE UP DEVICE)
90405-09149

LN10#,8#

 1
90404-51093

YN8#

 1
90405-09127

LN10#,8#

 1
90405-09127

LN10#,8#..MTM

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-89129

LN10#,8#

 1
88690-89133

YN8#

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-89129

LN10#,8#

 1
88690-89133

YN8#

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

LN10#,131,8#

*H,L=170,ﾏｰｸ=#0

 1
90999-92003

YN8#

*H,L=360,ﾏｰｸ=#0

 1
90999-92002

LN10#,8#

*H,L=170,ﾏｰｸ=#0

 2
90999-92002

YN8#

*H,L=110,ﾏｰｸ=#10

 1
Common parts
82711-12200
90091-20609
90464-00074
90464-00520
90999-92002
