YN85-TLQDS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )

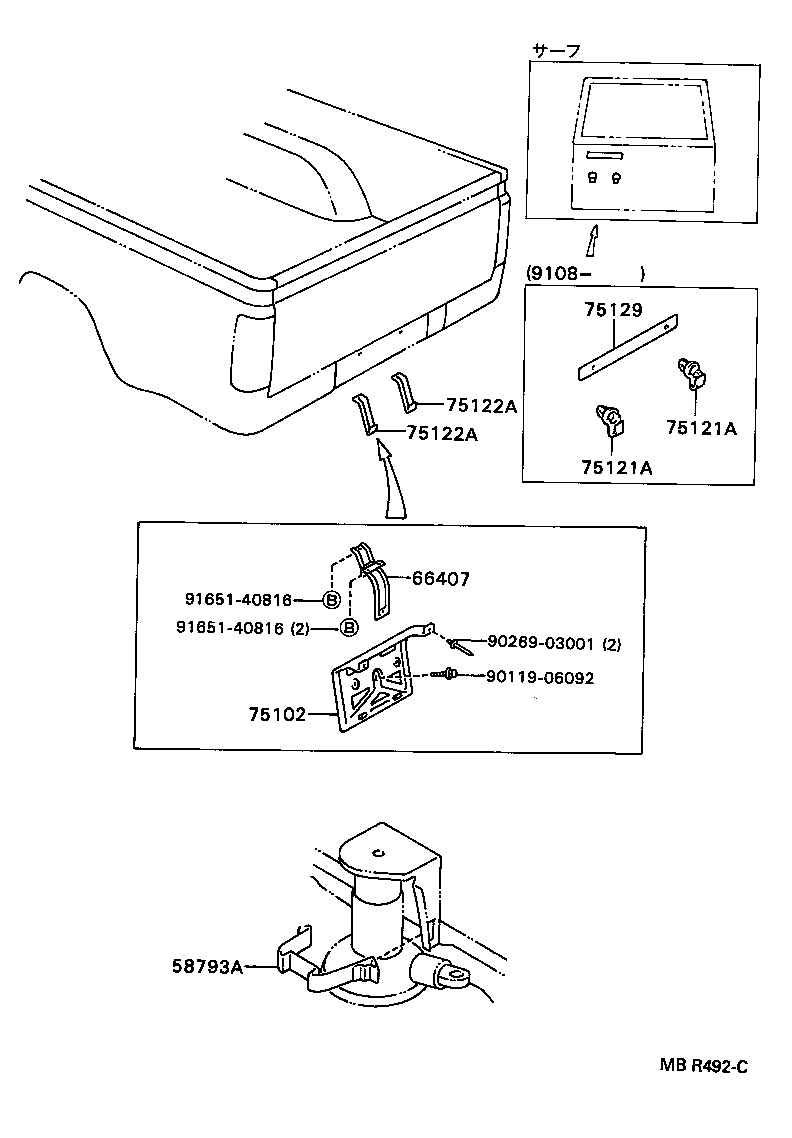

Click highlighted areas on diagram

diagram 58793A 66407 75102 75121A 75121A 75122A 75122A 75129 9011906092 9026903001 9165140816 9165140816
Part # Description Qty Price
58793A - BRACKET, JACK CARRIER
58792-89105

LN10#,112,8#,YN10#,8#

 1
66407 - STAY SUB-ASSY, LICENSE PLATE BRACKET
66495-89102

LN85,86,YN85,86..T2..CBU

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-89117

LN85,86,YN85,86..T2..CBU

 1
Common parts
90119-06092
90269-03001
91651-40816
