YN85-TLQDS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )LN10#,112,8#,YN10#,8#

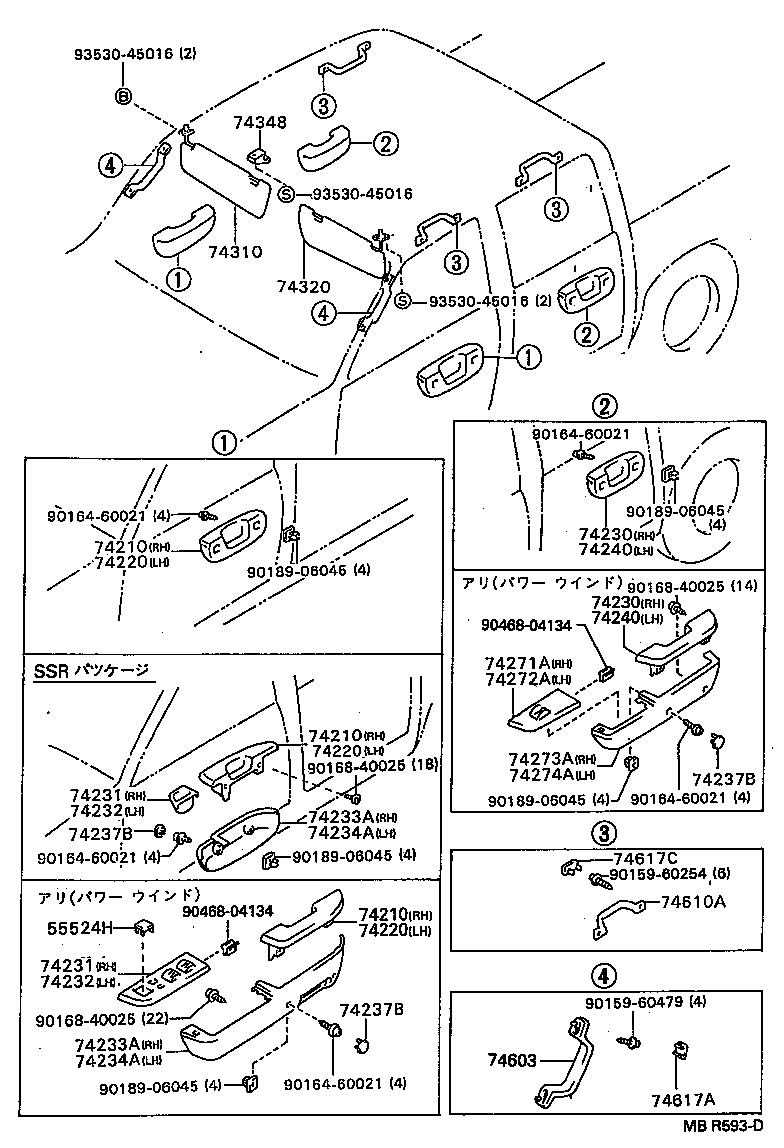

Click highlighted areas on diagram

diagram 55524H 74210 74210 74210 74220 74220 74220 74230 74230 74231 74231 74232 74232 74233A 74233A 74234A 74234A 74237B 74237B 74237B 74240 74240 74271A 74272A 74273A 74274A 74310 74320 74348 74603 74610A 74617A 74617C 9015960254 9015960479 9016460021 9016460021 9016460021 9016460021 9016460021 9016840025 9016840025 9016840025 9018906045 9018906045 9018906045 9018906045 9018906045 9046804134 9046804134 9353045016 9353045016 9353045016
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-8910906

LN8#,YN8#..DLX,SDX

BROWN,TRIM4#

 1
74210-8910904

LN8#,YN8#..DLX,SDX

BLUE,TRIM8#

 1
74210-8910903

LN8#,YN8#

GRAY,TRIM1#

 1
74210 - ARMREST ASSY, FRONT, RH
74210-8910906

LN8#,YN8#..DLX,SDX

BROWN,TRIM4#

 1
74210-8910904

LN8#,YN8#..DLX,SDX

BLUE,TRIM8#

 1
74210-8910903

LN8#,YN8#

GRAY,TRIM1#

 1
74210 - ARMREST ASSY, FRONT, RH
74210-8910906

LN8#,YN8#..DLX,SDX

BROWN,TRIM4#

 1
74210-8910904

LN8#,YN8#..DLX,SDX

BLUE,TRIM8#

 1
74210-8910903

LN8#,YN8#

GRAY,TRIM1#

 1
74220 - ARMREST ASSY, FRONT, LH
74210-8910906

LN8#,YN8#..DLX,SDX

BROWN,TRIM4#

 1
74210-8910904

LN8#,YN8#..DLX,SDX

BLUE,TRIM8#

 1
74210-8910903

LN8#,YN8#

GRAY,TRIM1#

 1
74220 - ARMREST ASSY, FRONT, LH
74210-8910906

LN8#,YN8#..DLX,SDX

BROWN,TRIM4#

 1
74210-8910904

LN8#,YN8#..DLX,SDX

BLUE,TRIM8#

 1
74210-8910903

LN8#,YN8#

GRAY,TRIM1#

 1
74220 - ARMREST ASSY, FRONT, LH
74210-8910906

LN8#,YN8#..DLX,SDX

BROWN,TRIM4#

 1
74210-8910904

LN8#,YN8#..DLX,SDX

BLUE,TRIM8#

 1
74210-8910903

LN8#,YN8#

GRAY,TRIM1#

 1
74310 - VISOR ASSY, RH
74310-8913304

LN8#,YN8#..DLX

BLUE,TRIM8#

 1
74310-8913306

LN8#,YN8#..DLX

BROWN,TRIM4#

 1
74310-8913304

LN8#,YN8#..DLX,STD

BLUE,TRIM8#

 1
74310-8913303

LN8#,YN8#..DLX,STD

GRAY,TRIM1#

 1
74310-89133J1

LN8#,YN8#..DLX

LIGHT BLUE,TRIM8#

 1
74320 - VISOR ASSY, LH
74320-8912406

LN8#,YN8#..DLX,SDX

BROWN,TRIM4#

 1
74320-8912403

LN10#,131,8#,YN10#,8#..DLX,SDX,SR

GRAY,TRIM1#

 1
74320-8912404

LN10#,8#,YN10#,8#..DLX,SDX,SR

BLUE,TRIM8#

 1
74320-89124J1

YN107;LN10#,131,8#,YN100,8#..DLX,SDX,SR

LIGHT BLUE,TRIM8#

 1
74348 - HOLDER, VISOR
74348-1401043

LN10#,8#,YN10#,8#..DLX,SDX,SR

GRAY,TRIM1#

 2
74348-14010B0

LN10#,8#,YN10#,8#..DLX,SDX,SR

SLATE GRAY,TRIM1#

 2
74348-1401024

LN10#,8#,YN10#,8#..DLX,SDX,SR

BLUE,TRIM8#

 2
74348-35010J0

LN10#,8#,YN10#,8#..DLX,SDX,SR,SSR

BLUE,TRIM8#

 2
74348-14010E0

LN8#,YN8#..DLX,SDX

LIGHT BROWN,TRIM4#

 2
74348-14010J0

LN10#,8#,YN10#,8#..DLX,SDX,SR

LIGHT BLUE,TRIM8#

 2
74348-1401006

LN8#,YN8#..DLX,SDX

BROWN,TRIM4#

 2
74348-35010B0

LN10#,8#,YN10#,8#..DLX,SDX,SR,SSR

GRAY,TRIM1#

 2
74348-35010J0

LN107,8#,YN8#..DLX,SSR

BLUE,TRIM8#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-1601014

LN10#,8#,YN100,8#..RCB

BLUE,TRIM8#

 1
74610-1601013

LN10#,8#,YN100,8#..RCB

GRAY,TRIM1#

 1
74610-1601014

LN10#,8#,YN100,8#..RCB..(DLX,SDX,SR)

BLUE,TRIM8#

 1
74610-16010J3

LN100,106,8#,YN100,8#..RCB..(DLX,SDX,SR)

MEDIUM BLUE,TRIM8#

 1
74610-1601006

LN8#,YN8#..RCB..(DLX,SDX)

BROWN,TRIM4#

 1
74617C - PLUG, ASSIST GRIP
74617-1601050

LN8#,YN8#..RCB..(DLX,SDX)

BROWN,TRIM4#

 2
74617-16010J1

LN10#,8#,YN100,8#..RCB

LIGHT BLUE,TRIM8#

 2
74617-16010B1

LN10#,8#,YN100,8#..RCB

SLATE GRAY,TRIM1#

 2
74617-1601057

LN10#,8#,YN100,8#..RCB

GRAY,TRIM1#

 2
74617-16010E1

LN8#,YN8#..RCB..(DLX,SDX)

LIGHT BROWN,TRIM4#

 2
74617-1601059

LN10#,8#,YN100,8#..RCB

BLUE,TRIM8#

 2
74617-16010J1

LN10#,8#,YN100,8#..RCB..(DLX,SDX,SR)

LIGHT BLUE,TRIM8#

 2
74617-16010J3

LN100,106,8#,YN100,8#..RCB..(DLX,SDX,SR)

BLUE,TRIM8#

 2
Common parts
90159-60254
90159-60479
90164-60021
90168-40025
90189-06045
90468-04134
93530-45016
