YN85-TLQDS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8809- )

Click highlighted areas on diagram

diagram 71071S 71072S 71073S 71074S 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71610S 71620S 71630S 71640S 71739 71739 71910A 71910A 71931 71931 71931 71931 9046818071 9046818071 9046818071 9046818071 9356015025 9356015025
Part # Description Qty Price
71739 - CUSHION, SEAT SUPPORT
71739-89112

LN106,8#,YN8#..RCB..(DLX,SDX,STD)

PLANT NO.P11

 2
71739-89115

LN106,8#,YN8#..RCB..(DLX,SDX,STD)

PLANT NO.A51-A54

 2
71739 - CUSHION, SEAT SUPPORT
71739-89112

LN106,8#,YN8#..RCB..(DLX,SDX,STD)

PLANT NO.P11

 2
71739-89115

LN106,8#,YN8#..RCB..(DLX,SDX,STD)

PLANT NO.A51-A54

 2
Common parts
90468-18071
93560-15025

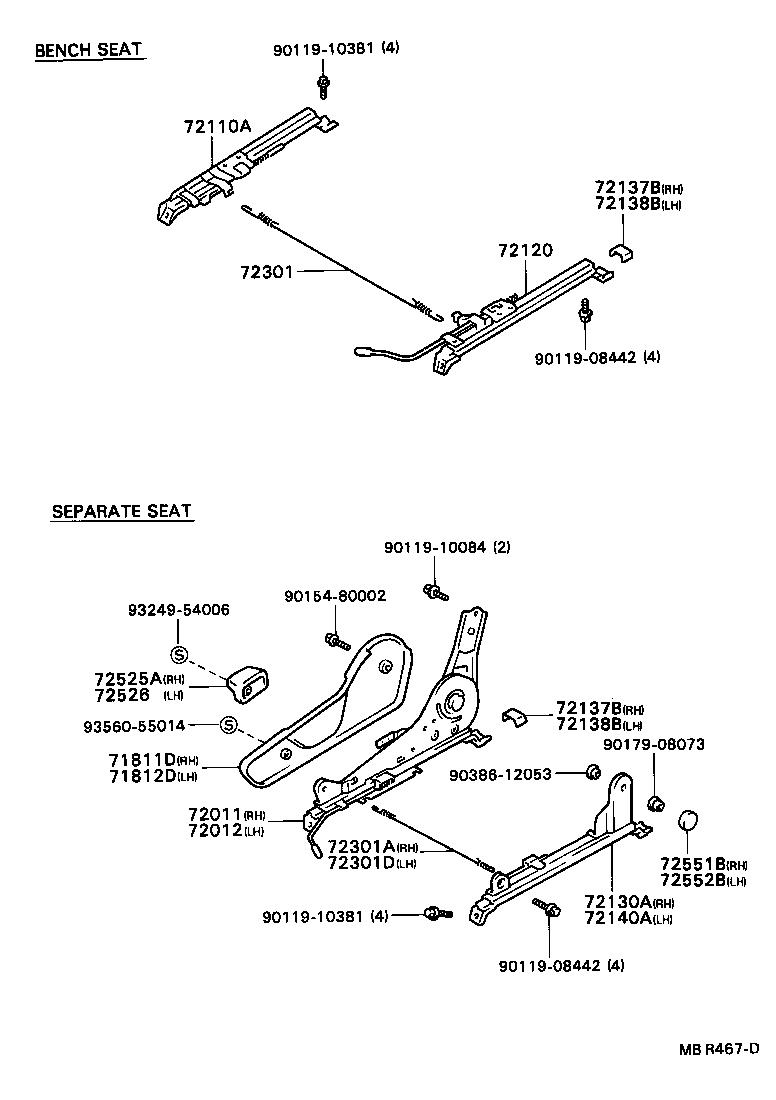

ILLUST NO. 2 OF 3(8809- )LN100,106,8#,YN100,105,8#

Click highlighted areas on diagram

diagram 71811D 71812D 72011 72012 72110A 72120 72130A 72137B 72137B 72138B 72138B 72140A 72301 72301A 72301D 72525A 72526 72551B 72552B 9011908442 9011908442 9011910084 9011910381 9011910381 9015480002 9017908073 9038612053 9324954006 9356055014
Part # Description Qty Price
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-89148

LN106,8#,YN8#..DLX,SDX,STD

 1
72110-89148

LN106,8#,YN8#..RCB..(DLX,SDX,STD)

 1
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-89148

LN106,8#,YN8#..DLX,SDX,STD

 1
72120-89148

LN106,8#,YN8#..RCB..(DLX,SDX,STD)

 1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-89110

LN106,8#,YN8#..DLX,SDX,STD

 1
Common parts
90119-08442
90119-10084
90119-10381
90154-80002
90179-08073
90386-12053
93249-54006
93560-55014

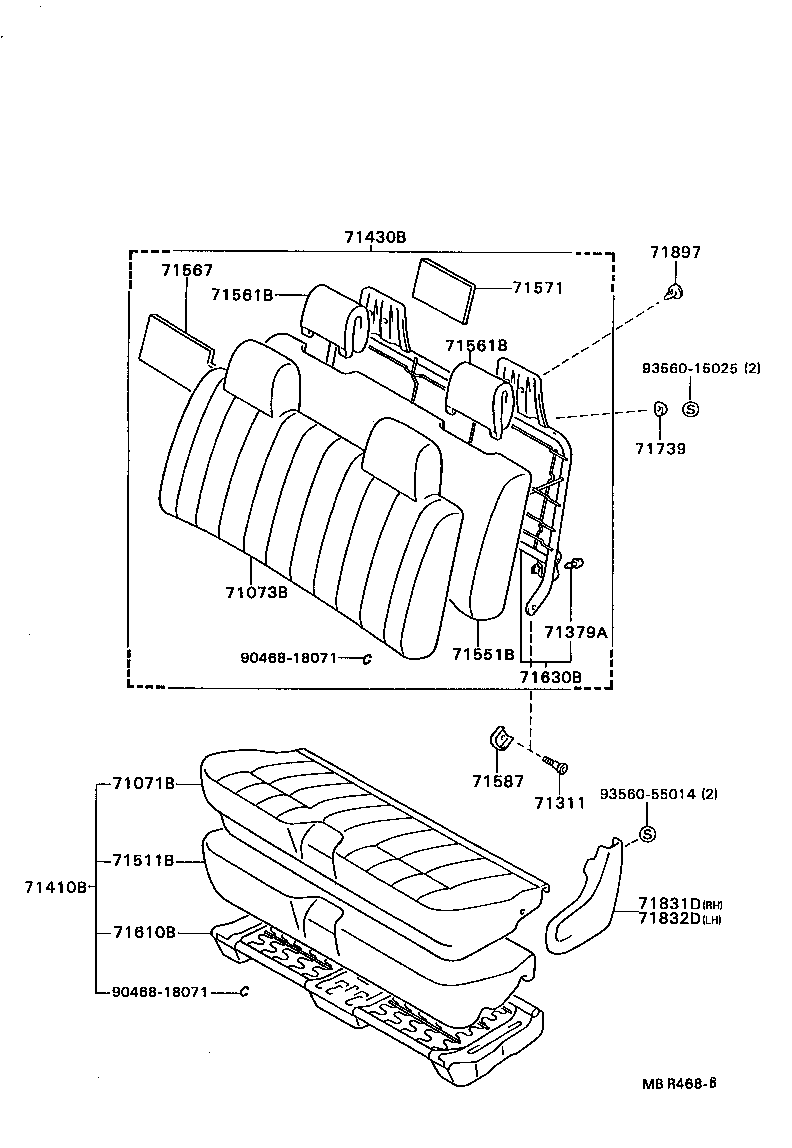

ILLUST NO. 1 OF 3(8809- )

Click highlighted areas on diagram

diagram 71071B 71073B 71311 71379A 71410B 71430B 71511B 71551B 71561B 71561B 71567 71571 71587 71610B 71630B 71739 71831D 71832D 71897 9046818071 9046818071 9356015025 9356055014
Part # Description Qty Price
71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE)
71071-8941904

LN8#,YN8#..RCB..5H..DLX

BLUE,TRIM8#

 1
71071-8936203

LN8#,YN8#..RCB..5H..(DLX,STD)

GRAY,TRIM1#

 1
71071-8936206

LN8#,YN8#..RCB..5H..DLX

BROWN,TRIM4#

 1
71071-8936204

LN8#,YN8#..RCB..5H..(DLX,STD)

BLUE,TRIM8#

 1
71071-8941906

LN8#,YN8#..RCB..5H..DLX

BROWN,TRIM4#

 1
71071-8941903

LN8#,YN8#..RCB..5H..(DLX,STD)

GRAY,TRIM1#

 1
71071-35040J0

LN8#,YN8#..RCB..5H..DLX

BLUE,TRIM8#

 1
71071-35040B0

LN8#,YN8#..RCB..5H..(DLX,STD)

GRAY,TRIM1#

 1
71073B - COVER, FRONT SEAT BACK(FOR BENCH TYPE)
71073-8937903

LN8#,YN8#..RCB..(DLX,STD)

GRAY,TRIM1#

 1
71073-8937904

LN8#,YN8#..RCB..(DLX,STD)

BLUE,TRIM8#

 1
71073-8937906

LN8#,YN8#..RCB..DLX

BROWN,TRIM4#

 1
71073-8943503

LN8#,YN8#..RCB..(DLX,STD)

GRAY,TRIM1#

 1
71073-8943506

LN8#,YN8#..RCB..DLX

BROWN,TRIM4#

 1
71073-8943504

LN8#,YN8#..RCB..DLX

BLUE,TRIM8#

 1
71073-35040J0

LN8#,YN8#..RCB..DLX

BLUE,TRIM8#

 1
71073-35040B0

LN8#,YN8#..RCB..(DLX,STD)

GRAY,TRIM1#

 1
71311 - PIN, FRONT SEAT HINGE
71311-89105

LN106,8#,YN8#..DLX,SDX,STD

 2
71379A - STOPPER, FRONT SEAT VERTICAL HANDLE
71379-89101

LN106,8#,YN8#..RCB..(DLX,SDX,STD)

 2
71410B - CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE)
71410-8942804

LN8#,YN8#..RCB..5H..DLX

***,BLUE,TRIM8#

 1
71410-8942806

LN8#,YN8#..RCB..5H..DLX

***,BROWN,TRIM4#

 1
71410-8942803

LN8#,YN8#..RCB..5H..(DLX,STD)

***,GRAY,TRIM1#

 1
71410-35370B0

LN8#,YN8#..RCB..5H..(DLX,STD)

***,GRAY,TRIM1#

 1
71410-35370J0

LN8#,YN8#..RCB..5H..DLX

***,BLUE,TRIM8#

 1
71430B - BACK ASSY, FRONT SEAT(FOR BENCH TYPE)
71430-8936403

LN8#,YN8#..RCB..(DLX,STD)

***,GRAY,TRIM1#

 1
71430-8936406

LN8#,YN8#..RCB..DLX

***,BROWN,TRIM4#

 1
71430-8936404

LN8#,YN8#..RCB..(DLX,STD)

***,BLUE,TRIM8#

 1
71430-35270B0

LN8#,YN8#..RCB..(DLX,STD)

***,GRAY,TRIM1#

 1
71430-35270J0

LN8#,YN8#..RCB..DLX

***,BLUE,TRIM8#

 1
71511B - PAD, FRONT SEAT CUSHION(FOR BENCH TYPE)
71511-89145

LN8#,YN8#..5H

 1
71511-89155

LN8#,YN8#..5H

 1
71551B - PAD, FRONT SEAT BACK(FOR BENCH TYPE)
71551-89129

LN106,8#,YN8#..DLX,SDX,STD

 1
71551-89129

LN85..4FC..SDX;LN106,8#,YN8#..MTM..(DLX,SDX,STD)

 1
71561B - PAD, FRONT SEAT BACK, UPPER
71561-89114

LN106,8#,YN8#..RCB..(DLX,SDX,STD)

 2
71561-89114

LN85..4FC..SDX;LN106,8#,YN8#..RCB..MTM..(DLX,SDX,STD)

 2
71561B - PAD, FRONT SEAT BACK, UPPER
71561-89114

LN106,8#,YN8#..RCB..(DLX,SDX,STD)

 2
71561-89114

LN85..4FC..SDX;LN106,8#,YN8#..RCB..MTM..(DLX,SDX,STD)

 2
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-89103

LN106,8#,YN8#..DLX,SDX,STD

 2
71610B - SPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE)
71610-89149

LN8#,YN8#..RCB..5H

 1
71630B - SPRING ASSY, FRONT SEAT BACK(FOR BENCH TYPE)
71630-89145

LN106,8#,YN8#..RCB..(DLX,SDX,STD)

 1
71630-89145

LN85..4FC..SDX;LN106,8#,YN8#..RCB..MTM..(DLX,SDX,STD)

 1
71739 - CUSHION, SEAT SUPPORT
71739-89112

LN106,8#,YN8#..RCB..(DLX,SDX,STD)

PLANT NO.P11

 2
71739-89115

LN106,8#,YN8#..RCB..(DLX,SDX,STD)

PLANT NO.A51-A54

 2
71831D - COVER, FRONT SEAT HINGE, RH
71831-8910106

LN8#,YN8#..RCB..(DLX,SDX)

BROWN,TRIM4#

 1
71831-8910104

LN106,8#,YN8#..RCB..(DLX,SDX)

BLUE,TRIM8#

 1
71831-8910103

LN106,8#,YN8#..RCB..(DLX,SDX,STD)

GRAY,TRIM1#

 1
71832D - COVER, FRONT SEAT HINGE, LH
71832-8910103

LN106,8#,YN8#..RCB..(DLX,SDX,STD)

GRAY,TRIM1#

 1
71832-8910104

LN106,8#,YN8#..RCB..(DLX,SDX)

BLUE,TRIM8#

 1
71832-8910106

LN8#,YN8#..RCB..(DLX,SDX)

BROWN,TRIM4#

 1
71897 - HOOK, SEAT COVER SIDE
71897-8910223

LN106,8#,YN8#..RCB..(DLX,SDX,STD)

GRAY,TRIM1#

 4
71897-89102J1

LN106,8#,YN8#..RCB..(DLX,SDX,STD)

BLUE,TRIM8#

 4
71897-89102E0

LN8#,YN8#..RCB..(DLX,SDX)

LIGHT BROWN,TRIM4#

 4
71897-8910224

LN106,8#,YN8#..RCB..(DLX,SDX,STD)

BLUE,TRIM8#

 4
71897-89102J1

LN106,8#,YN8#..RCB..(DLX,SDX)

BLUE,TRIM8#

 4
71897-8910226

LN8#,YN8#..RCB..(DLX,SDX)

BROWN,TRIM4#

 4
Common parts
90468-18071
93560-15025
93560-55014
