Toyota Hilux YN85 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Manufacturers Home
Toyota
JP
HILUX
YN85-TLQDS (1988)
3302 - CLUTCH HOUSING & TRANSMISSION CASE (MTM)

YN85-TLQDS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994

Engine 2Y

Transmission 5H MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8809- )LN100,106,107,109,131,8#..MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-30180	YN10#,130,8#..MTM	09/1988 - 08/1997	1
33101J - PLUG, BREATHER
90930-03085	LN8#,YN8#..5H	09/1988 - 12/2999	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18021	LN8#,YN8#..5H	09/1988 - 03/1995	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	KZN130,LN100,106,107,109,13#,8#,VZN130,YN10#,130,8#..MTM	09/1988 - 08/1997	1
33111 - CASE, MANUAL TRANSMISSION
33101-35060	LN8#,YN8#..5H	09/1988 - 08/1997	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006	KZN130,LN109,13#,8#,VZN130,YN130,8#..MTM	09/1988 - 08/1997	1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004	KZN130,LN10#,13#,8#,VZN130,YN10#,130,8#..MTM 外径=14	09/1988 - 05/1994	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	LN100,106,107,109,131,8#,YN10#,130,8#..MTM 長さ=16,外径=12	09/1988 - 08/1997	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	LN100,106,107,109,131,8#,YN10#,130,8#..MTM 長さ=16,外径=12	09/1988 - 08/1997	4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001	LN100,106,107,109,131,8#,YN10#,130,8#..MTM 長さ=14,外径=15	09/1988 - 08/1997	2
90253-11001	LN131,8#,YN130,8#..MTM 長さ=11,外径=11	09/1988 - 08/1991	2
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008	LN131;KZN130,LN107,109,130,8#,VZN130,YN130,8#..MTM..(DLX,SDX,SSR,SSRX,STD)	09/1988 - 12/2999	1
33118 - PLATE, STIFFENER, RH(MTM)
33118-28010	YN10#,130,8#..MTM	09/1988 - 12/2999	1
33119 - PLATE, STIFFENER, LH(MTM)
33119-28010	YN10#,130,8#..MTM	09/1988 - 12/2999	1
33119-25020	LN100,106,107,109,13#,8#..MTM	09/1988 - 12/2999	1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-26020	LN100,106,107,109,131,8#,YN10#,130,8#..MTM	09/1988 - 08/1997	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30010	LN10#,131,8#,YN10#,130,8#..MTM	09/1988 - 07/1990	1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-28010	LN100,106,107,109,131,8#,YN10#,130,8#..MTM	09/1988 - 08/1997	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35030	LN100,106,107,109,131,8#,YN10#,130,8#..MTM	09/1988 - 08/1997	1
Common parts
90119-08332
90119-10025
90119-10263
90119-12168
90149-80002
91611-61045
91619-61250
91651-61032
91651-61045

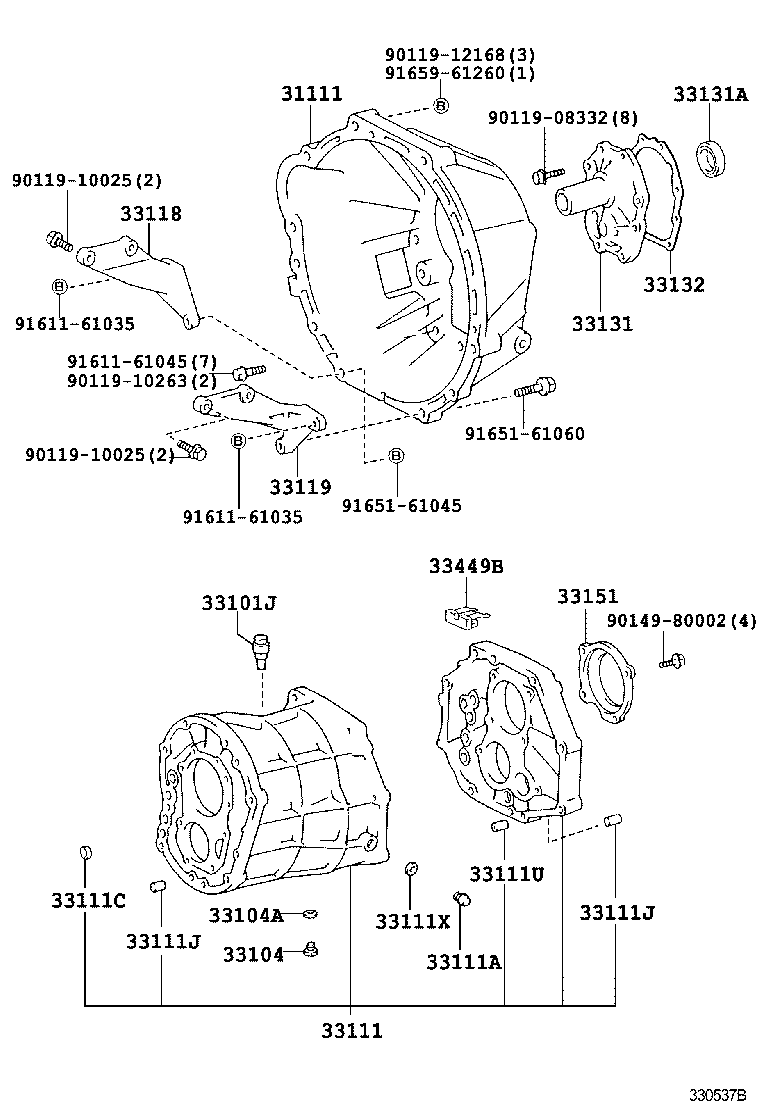

(8809- )YN10#,130,8#..MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-30180	YN10#,130,8#..MTM	09/1988 - 08/1997	1
33101J - PLUG, BREATHER
90930-03085	LN8#,YN8#..5H	09/1988 - 12/2999	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18021	LN8#,YN8#..5H	09/1988 - 03/1995	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	KZN130,LN100,106,107,109,13#,8#,VZN130,YN10#,130,8#..MTM	09/1988 - 08/1997	1
33111 - CASE, MANUAL TRANSMISSION
33101-35060	LN8#,YN8#..5H	09/1988 - 08/1997	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006	KZN130,LN109,13#,8#,VZN130,YN130,8#..MTM	09/1988 - 08/1997	1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004	KZN130,LN10#,13#,8#,VZN130,YN10#,130,8#..MTM 外径=14	09/1988 - 05/1994	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	LN100,106,107,109,131,8#,YN10#,130,8#..MTM 長さ=16,外径=12	09/1988 - 08/1997	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	LN100,106,107,109,131,8#,YN10#,130,8#..MTM 長さ=16,外径=12	09/1988 - 08/1997	4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001	LN100,106,107,109,131,8#,YN10#,130,8#..MTM 長さ=14,外径=15	09/1988 - 08/1997	2
90253-11001	LN131,8#,YN130,8#..MTM 長さ=11,外径=11	09/1988 - 08/1991	2
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008	LN131;KZN130,LN107,109,130,8#,VZN130,YN130,8#..MTM..(DLX,SDX,SSR,SSRX,STD)	09/1988 - 12/2999	1
33118 - PLATE, STIFFENER, RH(MTM)
33118-28010	YN10#,130,8#..MTM	09/1988 - 12/2999	1
33119 - PLATE, STIFFENER, LH(MTM)
33119-28010	YN10#,130,8#..MTM	09/1988 - 12/2999	1
33119-25020	LN100,106,107,109,13#,8#..MTM	09/1988 - 12/2999	1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-26020	LN100,106,107,109,131,8#,YN10#,130,8#..MTM	09/1988 - 08/1997	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30010	LN10#,131,8#,YN10#,130,8#..MTM	09/1988 - 07/1990	1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-28010	LN100,106,107,109,131,8#,YN10#,130,8#..MTM	09/1988 - 08/1997	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35030	LN100,106,107,109,131,8#,YN10#,130,8#..MTM	09/1988 - 08/1997	1
Common parts
90119-08332
90119-10025
90119-10263
90119-12168
90149-80002
91611-61035
91611-61045
91651-61045
91651-61060
91659-61260

YN85-TLQDS (1988)

(8809- )LN100,106,107,109,131,8#..MTM

(8809- )YN10#,130,8#..MTM
