YN85-TLQDS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809-9408)2Y,3Y

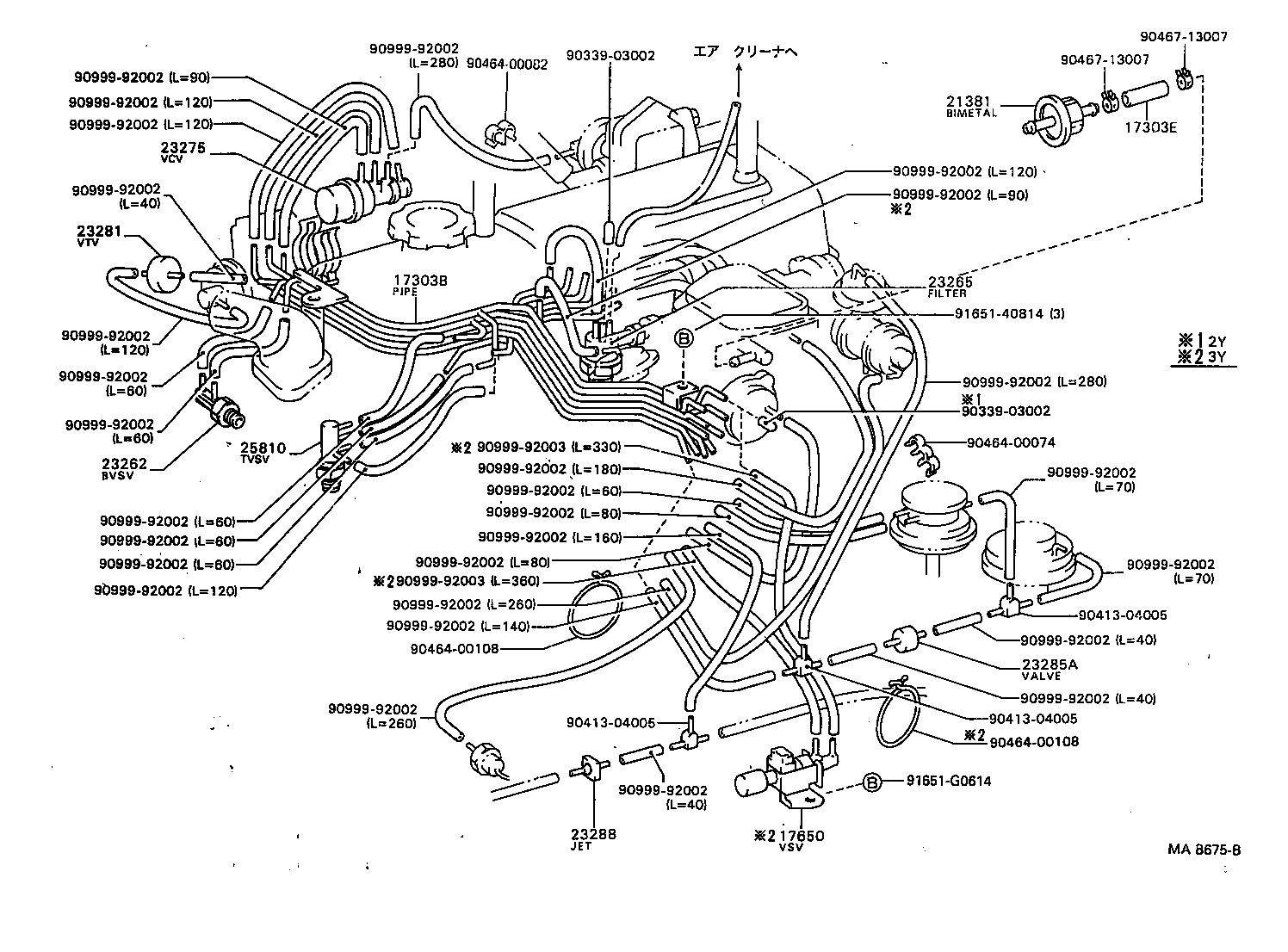

Click highlighted areas on diagram

diagram 17303B 17303E 17650 21381 23262 23265 23275 23281 23285A 23288 25810 9033903002 9033903002 9041304005 9041304005 9041304005 9046400074 9046400082 9046400108 9046400108 9046713007 9046713007 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9165140814 91651G0614
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-72021

2Y,3Y..YN10#,8#

 1
17303E - HOSE, NO.1(FOR AIR PIPE)
90445-14079

2Y,3Y..YN10#,8#

 1
21381 - BIMETAL, THERMOSTATIC
21381-71050

2Y,3Y..YN10#,8#

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05044

2Y,3Y..YN10#,8#

 1
23265 - FILTER, GAS, NO.1
90917-11027

2Y,3Y..YN10#,8#

 1
90917-11024

2Y,3Y..YN10#,8#

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03166

2Y,3Y..YN10#,8#

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01041

2Y,3Y..YN10#,8#

 1
23285A - VALVE, CHECK, NO.1
90917-10049

2Y,3Y..YN10#,8#

 1
23288 - JET, NO.1
90925-04026

2Y,3Y..YN10#,8#

 1
25810 - VALVE ASSY, BIMETAL
90925-02077

2Y,3Y..YN10#,8#

 1
Common parts
90339-03002
90413-04005
90464-00074
90464-00082
90464-00108
90467-13007
90999-92002
90999-92003
91651-40814
91651-G0614
