YN85-TBQDS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(8809- )

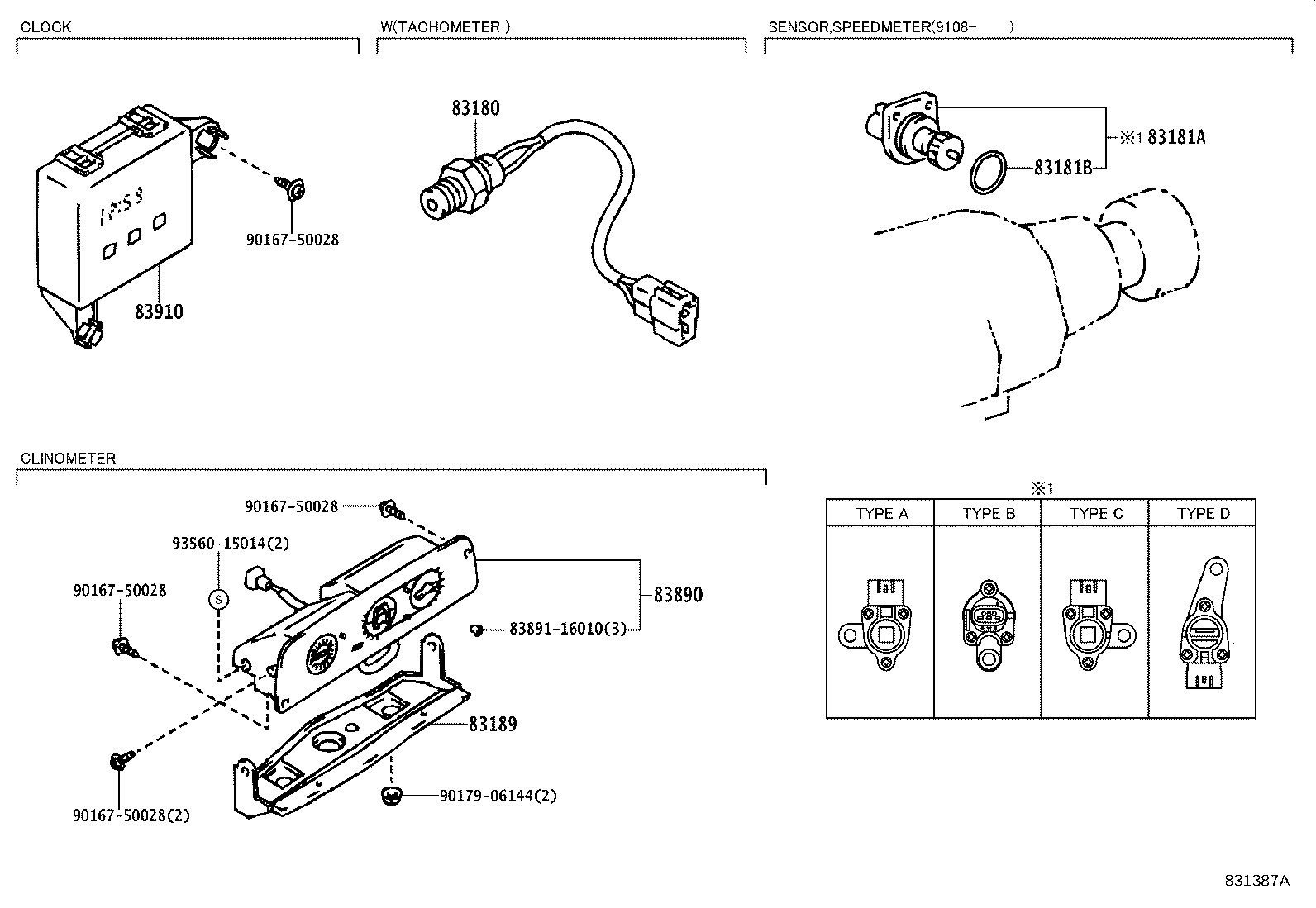

Click highlighted areas on diagram

ｸﾛﾂｸ,ﾃﾞｲﾃｸﾀ,ｽﾋﾟ-ﾄﾞﾒ-ﾀ ｾﾝｻ & ｸﾗｲﾉﾒ-ﾀ

diagram 83180 83181A 83181B 83189 83890 8389116010 83910 9016750028 9016750028 9016750028 9016750028 9017906144 9356015014
Part # Description Qty Price
83181A - SENSOR, SPEEDOMETER
83181-35040

LN8#,YN8#..5H

TYPE C:ｲﾗｽﾄ参照

 1
83181B - RING, O (FOR SPEEDOMETER SENSOR)
90301-18018

VZN130..4FC;LN10#,8#,YN10#,8#..MTM

 1
83910 - CLOCK ASSY
83910-89108

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
Common parts
83891-16010
90167-50028
90179-06144
93560-15014

ILLUST NO. 1 OF 3(8809- )

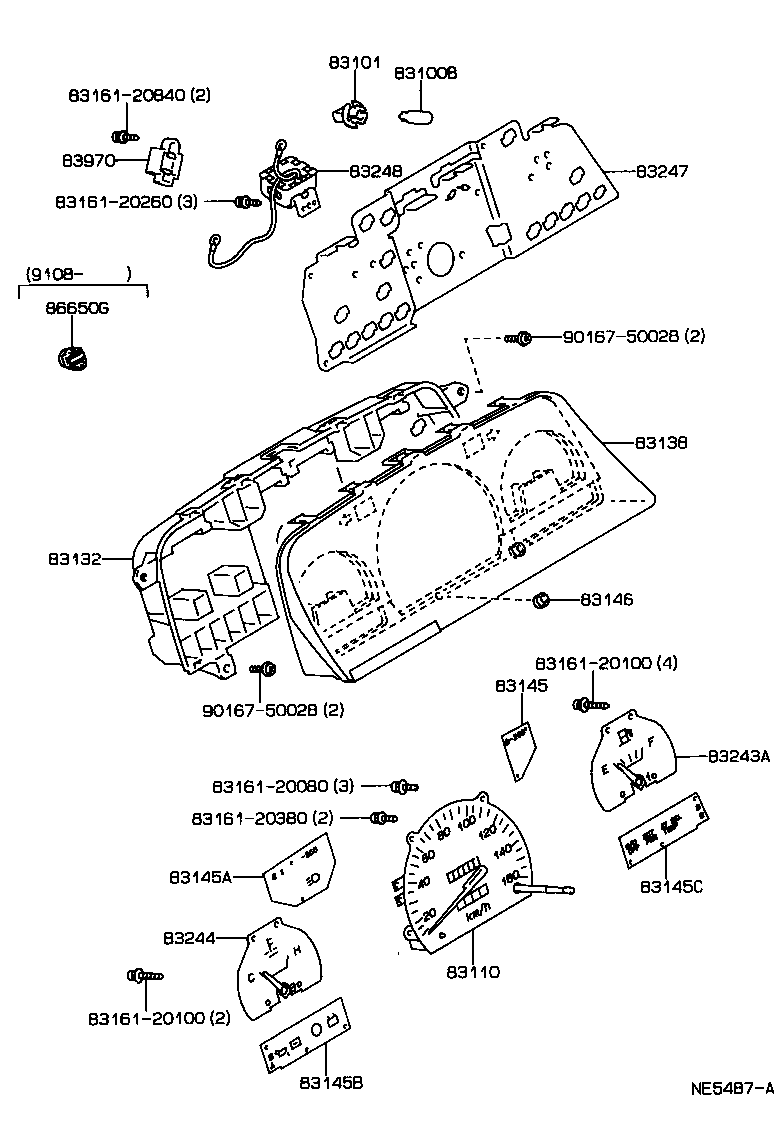

Click highlighted areas on diagram

ｺﾝﾋﾞﾈ-ｼﾖﾝ ﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ)

diagram 83100B 83101 83110 83132 83138 83145 83145A 83145B 83145C 83146 8316120080 8316120100 8316120100 8316120260 8316120380 8316120840 83243A 83244 83247 83248 83970 86650G 9016750028 9016750028
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

LN106,8#..DLX,SDX

12V 3.4W

 13
99132-12034

YN8#

12V 3.4W

 9
99132-12034

YN8#

12V 3.4W

 10
99132-12034

YN8#

12V 3.4W

 9
99132-12034

LN106,8#..DLX,SDX

12V 3.4W

 14
83109-37020

LN106,8#,YN8#..DLX,SDX,STD

12V 1.7W

 1
99132-12034

LN106,8#..DLX,SDX

12V 3.4W

 13
90981-11018

LN106,8#..DLX,SDX

12V 1.2W ｿｹｯﾄ無し

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040

LN106,8#..DLX,SDX

BULB:12V 3.4W

 13
83101-20040

YN8#

BULB:12V 3.4W

 9
83101-14040

LN106,8#..DLX,SDX

BULB:12V 1.4W

 1
83101-20040

YN8#

BULB;12V 3.4W

 10
83101-20040

LN106,8#..DLX,SDX

BULB:12V 3.4W

 14
83101-20040

YN8#

BULB:12V 3.4W

 10
83110 - SPEEDOMETER ASSY
83110-89304

LN106,8#..DLX,SDX

 1
83110-89327

YN8#

 1
83110-89327

YN8#..DLX,SDX

 1
83110-35700

YN8#

 1
83110-35250

LN106,8#..DLX,SDX

 1
83110-35110

LN106,8#..DLX,SDX

 1
83110-35120

YN8#

 1
83110-35820

LN106,8#..DLX,SDX

 1
83132 - CASE, COMBINATION METER
83132-89504

LN106,8#,YN8#..DLX,SDX,STD

 1
83132-35020

LN106,8#,YN8#..DLX,SDX,STD

 1
83138 - GLASS, SPEEDOMETER
83138-89524

YN8#..DLX,SDX

 1
83138-89524

YN8#

 1
83138-89526

LN106,8#..DLX,SDX

 1
83145 - LENS, METER, NO.1
83145-89504

LN106,8#,YN8#..DLX,SDX,STD

 1
83145A - LENS, METER, NO.2
83145-89502

LN106,8#,YN80,85..DLX,SDX,STD

 1
83145B - LENS, METER, NO.3
83145-89402

YN8#

 1
83145-35140

YN8#

 1
83145-89516

LN106,8#..DLX,SDX

 1
83145C - LENS, METER, NO.4
83145-89606

LN106,8#..DLX,SDX

 1
83145-89512

LN106,8#..DLX,SDX

 1
83146 - GROMMET, METER GLASS
83145-89318

KZN130,LN10#,112,13#,8#

 1
83243A - GAUGE SUB-ASSY, FUEL RECEIVER
83243-35040

LN106,8#,YN80,85..DLX,SDX,STD

 1
83243-89506

LN106,8#,YN8#..DLX,SDX,STD

 1
83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83244-35040

YN8#

 1
83244-35100

LN106,8#..DLX,SDX

 1
83244-89506

YN8#

 1
83244-89510

LN106,8#..DLX,SDX

 1
83247 - PLATE, METER CIRCUIT
83247-89542

LN106,8#..DLX,SDX

 1
83247-89404

YN8#

 1
83247-89610

LN106,8#..DLX,SDX

 1
83247-35140

YN8#

 1
83247-35300

LN106,8#..DLX,SDX

 1
83248 - CHIME, SPEED WARNING
86640-89103

LN106,8#,YN8#..DLX,SDX,STD

 1
83970 - BUZZER ASSY, REVERSE WARNING
83970-22010

LN106..DLX;KZN130,LN130,8#,VZN130,YN130..4FC,5H

 1
86650G - BUZZER ASSY
86650-12030

KZN130,LN10#,13#,8#,VZN130,YN10#,8#

 1
Common parts
83161-20080
83161-20100
83161-20260
83161-20380
83161-20840
90167-50028

ILLUST NO. 1 OF 3(8809- )

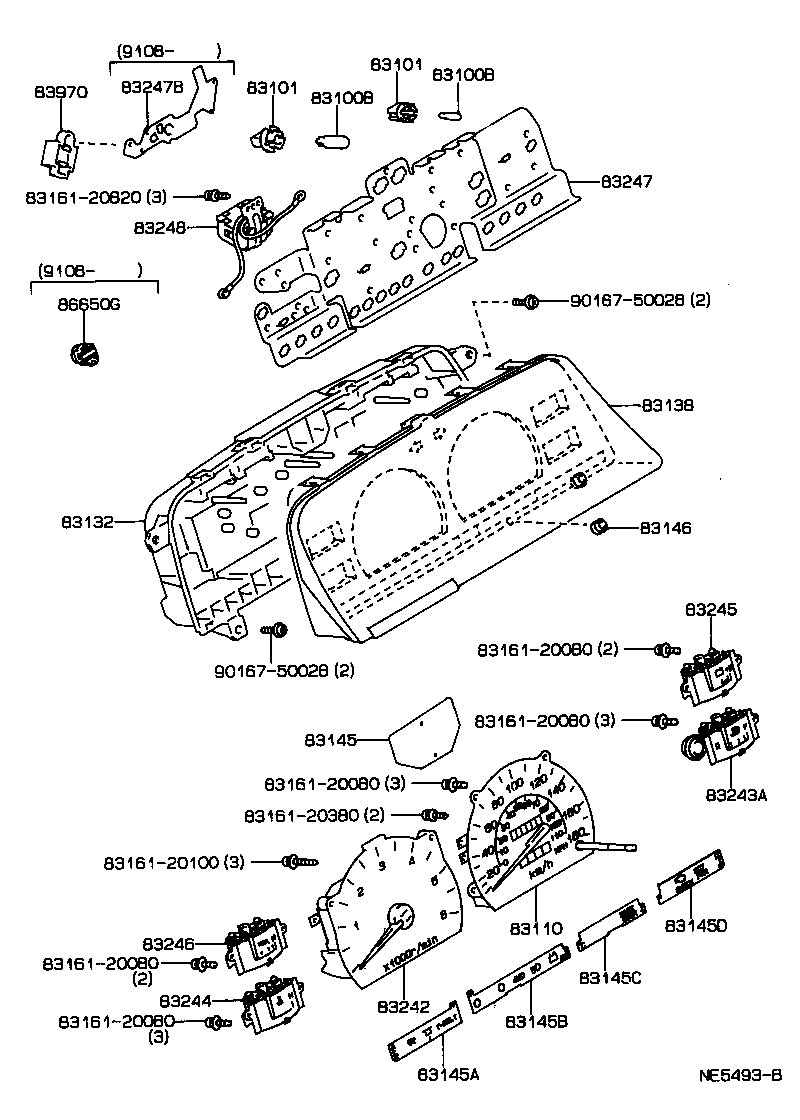

Click highlighted areas on diagram

ｺﾝﾋﾞﾈ-ｼﾖﾝ ﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ)

diagram 83100B 83100B 83101 83101 83110 83132 83138 83145 83145A 83145B 83145C 83145D 83146 8316120080 8316120080 8316120080 8316120080 8316120080 8316120100 8316120380 8316120820 83242 83243A 83244 83245 83246 83247 83247B 83248 83970 86650G 9016750028 9016750028
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

LN106,8#..DLX,SDX

12V 3.4W

 13
99132-12034

YN8#

12V 3.4W

 9
99132-12034

YN8#

12V 3.4W

 10
99132-12034

YN8#

12V 3.4W

 9
99132-12034

LN106,8#..DLX,SDX

12V 3.4W

 14
83109-37020

LN106,8#,YN8#..DLX,SDX,STD

12V 1.7W

 1
99132-12034

LN106,8#..DLX,SDX

12V 3.4W

 13
90981-11018

LN106,8#..DLX,SDX

12V 1.2W ｿｹｯﾄ無し

 1
83100B - BULB, COMBINATION METER, NO.1
99132-12034

LN106,8#..DLX,SDX

12V 3.4W

 13
99132-12034

YN8#

12V 3.4W

 9
99132-12034

YN8#

12V 3.4W

 10
99132-12034

YN8#

12V 3.4W

 9
99132-12034

LN106,8#..DLX,SDX

12V 3.4W

 14
83109-37020

LN106,8#,YN8#..DLX,SDX,STD

12V 1.7W

 1
99132-12034

LN106,8#..DLX,SDX

12V 3.4W

 13
90981-11018

LN106,8#..DLX,SDX

12V 1.2W ｿｹｯﾄ無し

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040

LN106,8#..DLX,SDX

BULB:12V 3.4W

 13
83101-20040

YN8#

BULB:12V 3.4W

 9
83101-14040

LN106,8#..DLX,SDX

BULB:12V 1.4W

 1
83101-20040

YN8#

BULB;12V 3.4W

 10
83101-20040

LN106,8#..DLX,SDX

BULB:12V 3.4W

 14
83101-20040

YN8#

BULB:12V 3.4W

 10
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040

LN106,8#..DLX,SDX

BULB:12V 3.4W

 13
83101-20040

YN8#

BULB:12V 3.4W

 9
83101-14040

LN106,8#..DLX,SDX

BULB:12V 1.4W

 1
83101-20040

YN8#

BULB;12V 3.4W

 10
83101-20040

LN106,8#..DLX,SDX

BULB:12V 3.4W

 14
83101-20040

YN8#

BULB:12V 3.4W

 10
83110 - SPEEDOMETER ASSY
83110-89304

LN106,8#..DLX,SDX

 1
83110-89327

YN8#

 1
83110-89327

YN8#..DLX,SDX

 1
83110-35700

YN8#

 1
83110-35250

LN106,8#..DLX,SDX

 1
83110-35110

LN106,8#..DLX,SDX

 1
83110-35120

YN8#

 1
83110-35820

LN106,8#..DLX,SDX

 1
83132 - CASE, COMBINATION METER
83132-89504

LN106,8#,YN8#..DLX,SDX,STD

 1
83132-35020

LN106,8#,YN8#..DLX,SDX,STD

 1
83138 - GLASS, SPEEDOMETER
83138-89524

YN8#..DLX,SDX

 1
83138-89524

YN8#

 1
83138-89526

LN106,8#..DLX,SDX

 1
83145 - LENS, METER, NO.1
83145-89504

LN106,8#,YN8#..DLX,SDX,STD

 1
83145A - LENS, METER, NO.2
83145-89502

LN106,8#,YN80,85..DLX,SDX,STD

 1
83145B - LENS, METER, NO.3
83145-89402

YN8#

 1
83145-35140

YN8#

 1
83145-89516

LN106,8#..DLX,SDX

 1
83145C - LENS, METER, NO.4
83145-89606

LN106,8#..DLX,SDX

 1
83145-89512

LN106,8#..DLX,SDX

 1
83145D - LENS, METER, NO.5
83145-35160

LN106,8#..DLX,SDX

 1
83146 - GROMMET, METER GLASS
83145-89318

KZN130,LN10#,112,13#,8#

 1
83243A - GAUGE SUB-ASSY, FUEL RECEIVER
83243-35040

LN106,8#,YN80,85..DLX,SDX,STD

 1
83243-89506

LN106,8#,YN8#..DLX,SDX,STD

 1
83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83244-35040

YN8#

 1
83244-35100

LN106,8#..DLX,SDX

 1
83244-89506

YN8#

 1
83244-89510

LN106,8#..DLX,SDX

 1
83247 - PLATE, METER CIRCUIT
83247-89542

LN106,8#..DLX,SDX

 1
83247-89404

YN8#

 1
83247-89610

LN106,8#..DLX,SDX

 1
83247-35140

YN8#

 1
83247-35300

LN106,8#..DLX,SDX

 1
83248 - CHIME, SPEED WARNING
86640-89103

LN106,8#,YN8#..DLX,SDX,STD

 1
83970 - BUZZER ASSY, REVERSE WARNING
83970-22010

LN106..DLX;KZN130,LN130,8#,VZN130,YN130..4FC,5H

 1
86650G - BUZZER ASSY
86650-12030

KZN130,LN10#,13#,8#,VZN130,YN10#,8#

 1
Common parts
83161-20080
83161-20100
83161-20380
83161-20820
90167-50028

ILLUST NO. 2 OF 3(8809-9108) ; (9408- )

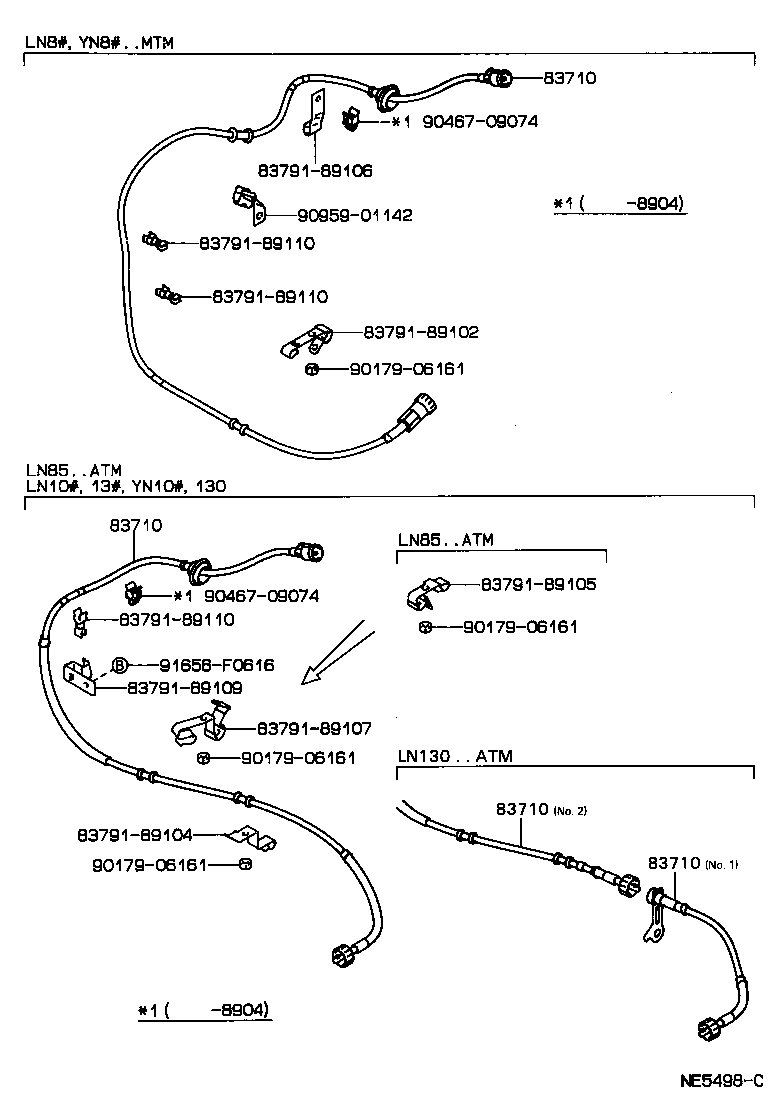

Click highlighted areas on diagram

ｽﾋﾟ-ﾄﾞﾒ-ﾀ ﾄﾞﾗｲﾌﾞｹ-ﾌﾞﾙ

diagram 83710 83710 83710 83710 8379189102 8379189104 8379189105 8379189106 8379189107 8379189109 8379189110 8379189110 8379189110 9017906161 9017906161 9017906161 9017906161 9046709074 9046709074 9095901142 91656F0616
Part # Description Qty Price
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-89166

YN8#

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-89166

YN8#

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-89166

YN8#

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-89166

YN8#

 1
Common parts
83791-89102
83791-89104
83791-89105
83791-89106
83791-89107
83791-89109
83791-89110
90179-06161
90467-09074
90959-01142
91656-F0616
