YN85-PRQDS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )LN10#,112,8#,YN10#,8#

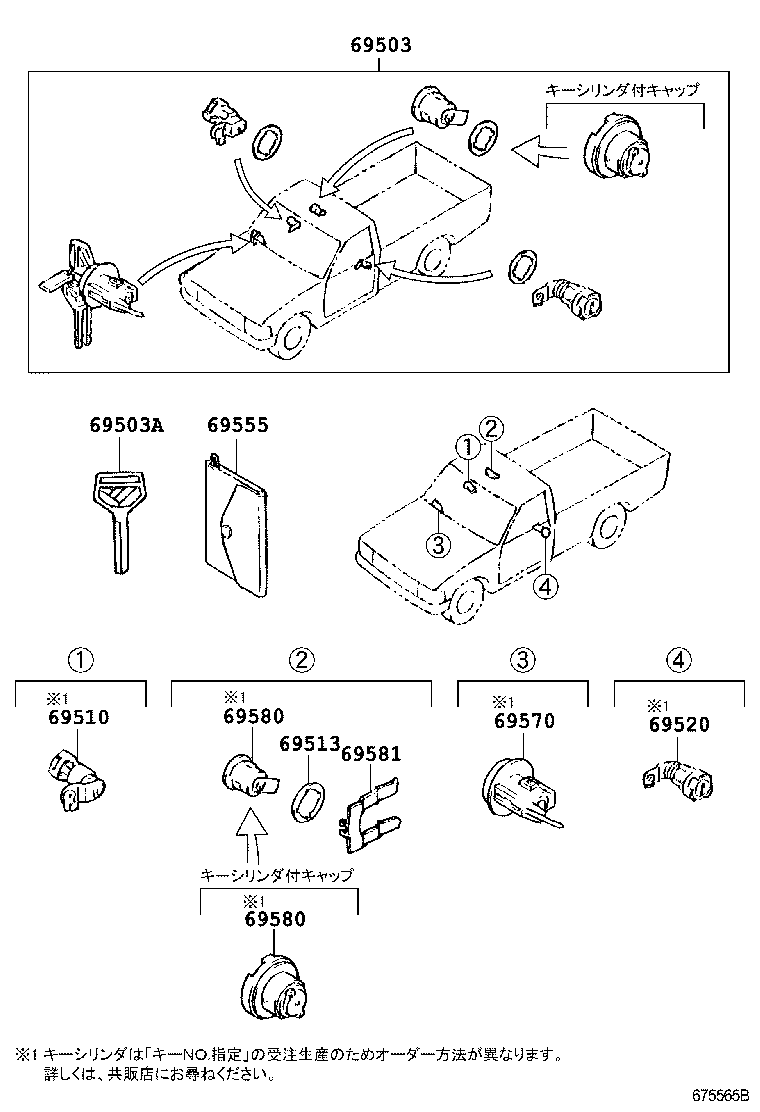

Click highlighted areas on diagram

diagram 69503 69503A 69510 69513 69520 69555 69570 69580 69580 69581
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-35170

YN85,86..IV3;YN105,107,85,86..(T2,T3,TW1)..CBU

 1
69005-35180

LN85,86..IV3;LN106,107,108,109,112,85,86..(T2,T3,TW1)..CBU

 1
69503A - KEY, BLANK
90999-00130

LN10#,13#,8#,VZN130,YN10#,130,8#

ﾏｽﾀｰｷｰ

 1
90999-00132

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

ﾏｽﾀｰｷｰ,*68付き

 1
90999-00130

LN10#,112,8#,YN10#,8#

ﾏｽﾀｰｷｰ

 1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-35050

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-35020

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
69555 - COVER, KEY
84041-89102

KZN130,LN10#,13#,8#,VZN130,YN10#,130,8#

 1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-89110

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
69570-89110

KZN130,LN10#,112,13#,8#,VZN130,YN10#,8#

 1
69580 - CYLINDER ASSY, FUEL FILLER OPENING LID
77310-35100

LN85,86..IV3;LN106,107,108,109,112,85,86..(T2,T3,TW1)..CBU

 1
77310-35090

YN85,86..IV3;YN105,107,85,86..(T2,T3,TW1)..CBU

 1
69580 - CYLINDER ASSY, FUEL FILLER OPENING LID
77310-35100

LN85,86..IV3;LN106,107,108,109,112,85,86..(T2,T3,TW1)..CBU

 1
77310-35090

YN85,86..IV3;YN105,107,85,86..(T2,T3,TW1)..CBU

 1
