YN80-TRQSS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

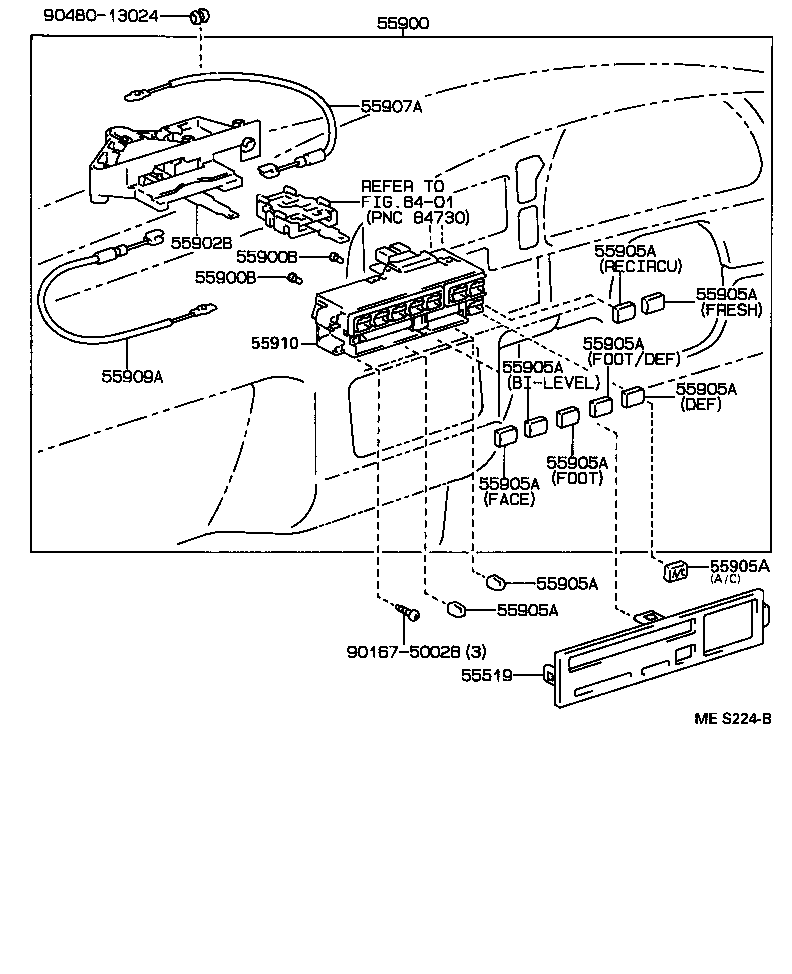

ILLUST NO. 1 OF 3(9108- )

Click highlighted areas on diagram

ﾌﾟﾂｼﾕｼｷ ﾌﾛﾝﾄ ｺﾝﾄﾛ-ﾙ

diagram 55519 55900 55900B 55900B 55902B 55905A 55905A 55905A 55905A 55905A 55905A 55905A 55905A 55905A 55905A 55907A 55909A 55910 8401 9016750028 9048013024
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-89151

LN108,109,112;KZN130,LN100,106,107,13#,8#,YN10#,130,8#..DLX,SDX,SR,SSR,STD

 1
55905A - KNOB, HEATER CONTROL
55905-89115

LN108,109,112;KZN130,LN100,106,107,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD

 4
55905A - KNOB, HEATER CONTROL
55905-89115

LN108,109,112;KZN130,LN100,106,107,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD

 4
55905A - KNOB, HEATER CONTROL
55905-89115

LN108,109,112;KZN130,LN100,106,107,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD

 4
55905A - KNOB, HEATER CONTROL
55905-89115

LN108,109,112;KZN130,LN100,106,107,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD

 4
55905A - KNOB, HEATER CONTROL
55905-89115

LN108,109,112;KZN130,LN100,106,107,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD

 4
55905A - KNOB, HEATER CONTROL
55905-89115

LN108,109,112;KZN130,LN100,106,107,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD

 4
55905A - KNOB, HEATER CONTROL
55905-89115

LN108,109,112;KZN130,LN100,106,107,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD

 4
55905A - KNOB, HEATER CONTROL
55905-89115

LN108,109,112;KZN130,LN100,106,107,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD

 4
55905A - KNOB, HEATER CONTROL
55905-89115

LN108,109,112;KZN130,LN100,106,107,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD

 4
55905A - KNOB, HEATER CONTROL
55905-89115

LN108,109,112;KZN130,LN100,106,107,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD

 4
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-35050

LN108,109,112;KZN130,LN100,106,107,8#,YN10#,8#..DLX,SDX,SR,SSR,STD

 1
55907-35010

KZN130,LN10#,13#,8#,VZN130,YN10#,8#

 1
55907-89118

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-35010

KZN130,LN10#,13#,8#,VZN130,YN10#,8#

 1
55909-89111

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
55909-35050

LN108,109,112;KZN130,LN100,106,107,8#,YN10#,8#..DLX,SDX,SR,SSR,STD

 1
55909-35020

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-89127

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
55910-35080

LN108,109,112;KZN130,LN100,106,107,8#,YN10#,8#..DLX,SDX,SR,SSR,STD

 1
55910-35030

KZN130,LN10#,13#,8#,YN10#,8#..DLX,SDX,SR,SSR,STD

 1
Common parts
90167-50028
90480-13024
Linked diagrams
8401

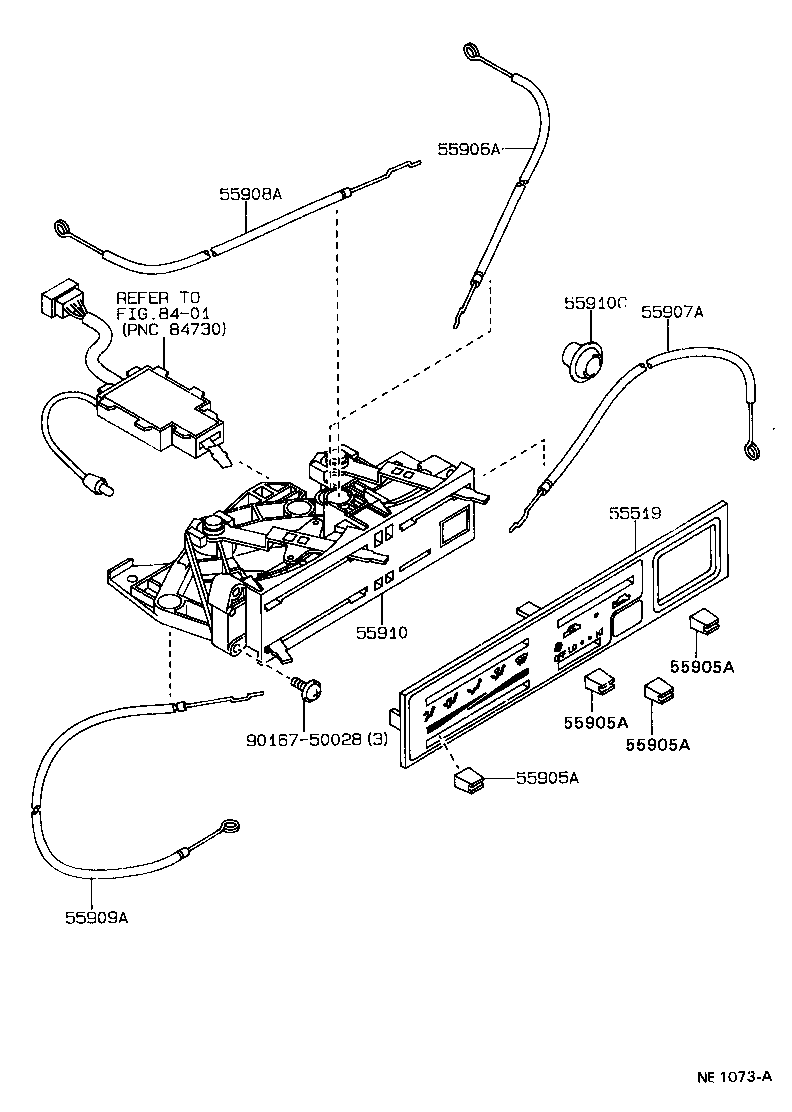

ILLUST NO. 1 OF 3(8809- )

Click highlighted areas on diagram

ﾚﾊﾞ-ｼｷ ﾌﾛﾝﾄ ｺﾝﾄﾛ-ﾙ

diagram 55519 55905A 55905A 55905A 55905A 55906A 55907A 55908A 55909A 55910 55910C 8401 9016750028
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-89151

LN108,109,112;KZN130,LN100,106,107,13#,8#,YN10#,130,8#..DLX,SDX,SR,SSR,STD

 1
55905A - KNOB, HEATER CONTROL
55905-89115

LN108,109,112;KZN130,LN100,106,107,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD

 4
55905A - KNOB, HEATER CONTROL
55905-89115

LN108,109,112;KZN130,LN100,106,107,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD

 4
55905A - KNOB, HEATER CONTROL
55905-89115

LN108,109,112;KZN130,LN100,106,107,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD

 4
55905A - KNOB, HEATER CONTROL
55905-89115

LN108,109,112;KZN130,LN100,106,107,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,STD

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-35010

KZN130,LN10#,13#,8#,YN10#,8#..DLX,SDX,SR,SSR,STD

 1
55906-89111

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
55906-35040

LN108,109,112;KZN130,LN100,106,107,8#,YN10#,8#..DLX,SDX,SR,SSR,STD

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-35050

LN108,109,112;KZN130,LN100,106,107,8#,YN10#,8#..DLX,SDX,SR,SSR,STD

 1
55907-35010

KZN130,LN10#,13#,8#,VZN130,YN10#,8#

 1
55907-89118

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-35010

KZN130,LN10#,13#,8#,YN10#,8#..DLX,SDX,SR,SSR,STD

 1
55908-35030

LN108,109,112;KZN130,LN100,106,107,8#,YN10#,8#..DLX,SDX,SR,SSR,STD

 1
55908-89106

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-35010

KZN130,LN10#,13#,8#,VZN130,YN10#,8#

 1
55909-89111

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
55909-35050

LN108,109,112;KZN130,LN100,106,107,8#,YN10#,8#..DLX,SDX,SR,SSR,STD

 1
55909-35020

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-89127

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
55910-35080

LN108,109,112;KZN130,LN100,106,107,8#,YN10#,8#..DLX,SDX,SR,SSR,STD

 1
55910-35030

KZN130,LN10#,13#,8#,YN10#,8#..DLX,SDX,SR,SSR,STD

 1
55910C - GROMMET(FOR HEATER CONTROL CABLE)
90480-15001

LN10#,13#,8#,YN10#,130,8#

 1
90480-13024

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
Common parts
90167-50028
Linked diagrams
8401

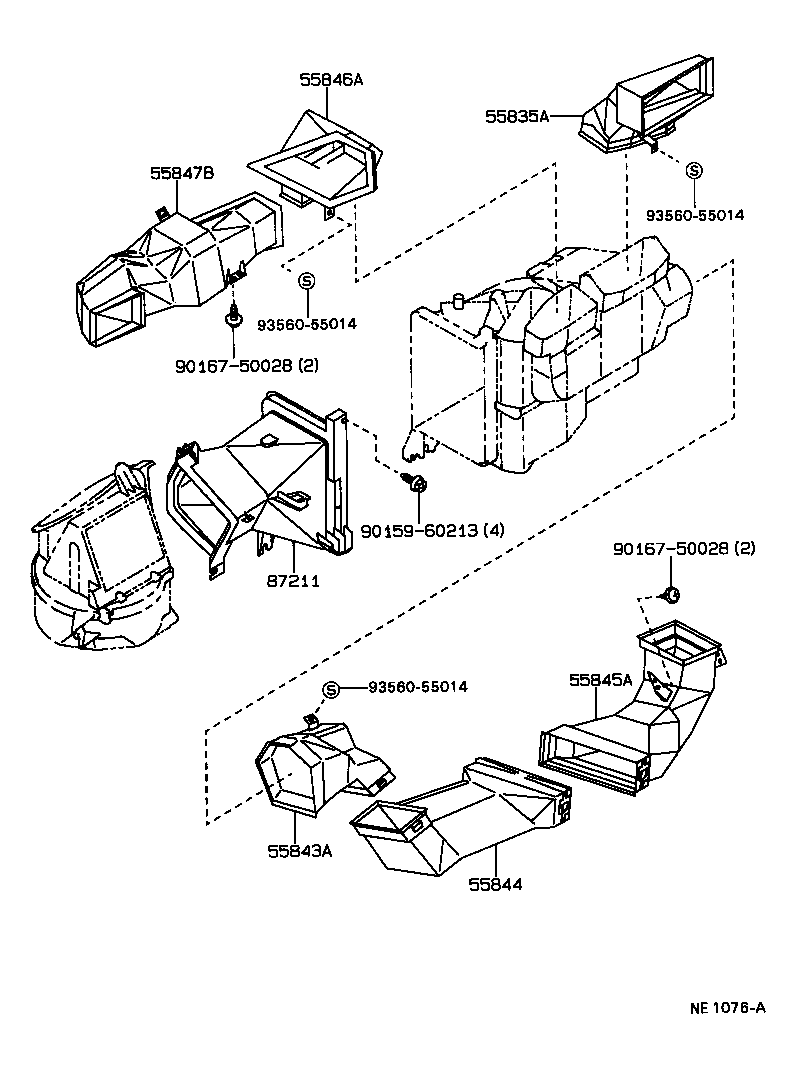

ILLUST NO. 2 OF 3(8809- )

Click highlighted areas on diagram

ｴｱ ﾀﾞｸﾄ

diagram 55835A 55843A 55844 55845A 55846A 55847B 87211 9015960213 9016750028 9016750028 9356055014 9356055014 9356055014
Part # Description Qty Price
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-89110

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-89114

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-89111

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-89108

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-89109

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
55847B - DUCT, HEATER TO REGISTER, NO.5
55847-89115

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
87211 - DUCT, AIR, NO.1
87211-89114

LN10#,112,13#,8#,YN10#,130,8#

 1
Common parts
90159-60213
90167-50028
93560-55014
