YN80-TRQSS (1988)
Toyota Hilux
(8809- )SDX ; (8809- )LN106,YN105 ; (9108-)LN107..SR

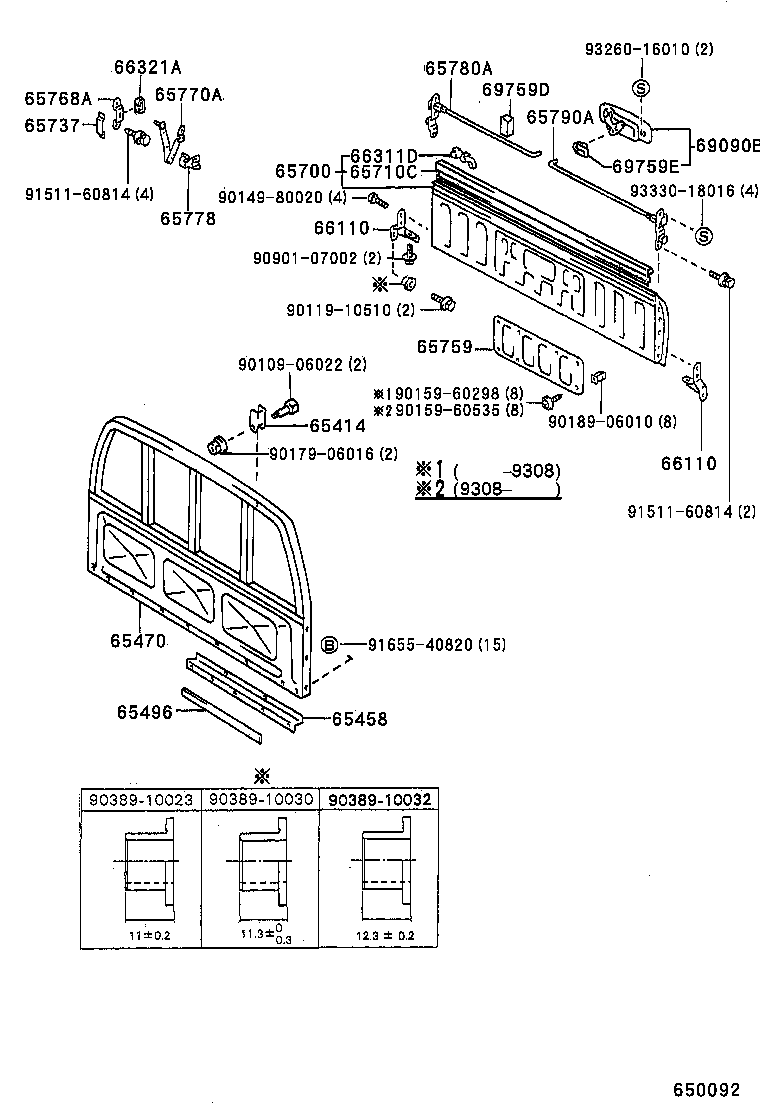

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65414 - STOPPER, GUARD FRAME | ||||
| 65414-89102 |
LN100,106,107,8#,YN10#,8#..(DLX,SDX,SR,STD)..CBU |
2 | ||
| 65458 - PLATE, BAFFLE DUCT REAR BODY, LH | ||||
| 65458-89102 |
LN100,80,81,YN100,80,81 |
1 | ||
| 65470 - BOARD ASSY, HEADER | ||||
| 65470-89137 |
LN100,106,8#,YN100,8#..T1..CBU |
1 | ||
| 65496 - SEAL, REAR BODY GUARD FRAME, NO.4 | ||||
| 65496-35010 |
LN106,85,86,YN85,86..TW1;LN100,107,108,109,112,80,81,YN10#,80,81 |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-89147 |
LN85,86,YN80,85,86..SDX;LN106,107,YN105,107..DLX,SR |
1 | ||
| 65710C - RAIL ASSY, TAIL GATE TOP | ||||
| 65710-89114 |
LN106,107,YN107..DLX,SR;LN85,86,YN80,85,86..SDX |
1 | ||
| 65737 - STOP, TAIL GATE | ||||
| 65737-35010 |
LN10#,YN10#;LN85,YN8#..SDX |
2 | ||
| 65737-89105 |
LN10#,YN10#;LN85,YN8#..SDX |
2 | ||
| 65737-89105 |
LN10#,YN10#;LN85,YN8#..SDX |
2 | ||
| 65737-35020 |
LN10#,112,YN10#;LN85,86,YN80,85,86..SDX |
2 | ||
| 65759 - COVER, TAIL GATE SERVICE HOLE | ||||
| 65759-89102 |
LN106,107,8#,YN105,107,8#..(T1,TW1)..(DLX,SDX,SR,STD)..CBU |
1 | ||
| 65768A - STRIKER, TAIL GATE LOCK | ||||
| 65768-89102 |
LN10#,YN10#;LN85,YN8#..SDX |
2 | ||
| 65768-35010 |
LN10#,112,YN10#;LN85,86,YN80,85,86..SDX |
2 | ||
| 65770A - STAY ASSY, TAIL GATE | ||||
| 65770-89103 |
LN10#,112,YN10#;LN85,86,YN80,85,86..SDX |
2 | ||
| 65778 - STOPPER, TAIL GATE STAY | ||||
| 65778-89104 |
LN10#,YN10#;LN85,YN8#..SDX |
4 | ||
| 65778-89105 |
LN10#,112,YN10#;LN85,86,YN80,85,86..SDX |
4 | ||
| 65780A - LOCK ASSY, TAIL GATE, RH | ||||
| 65780-89105 |
LN10#,YN10#;LN85,YN8#..SDX |
1 | ||
| 65780-35010 |
LN10#,112,YN10#;LN85,86,YN80,85,86..SDX |
1 | ||
| 65790A - LOCK ASSY, TAIL GATE, LH | ||||
| 65790-89106 |
LN85,YN8#..SDX;LN106,107,YN105,107..DLX,SR |
1 | ||
| 65790-35010 |
LN106,107,YN107..DLX,SR;LN85,86,YN80,85,86..SDX |
1 | ||
| 66110 - HINGE ASSY, TAIL GATE | ||||
| 66120-89102 |
LN10#,112,8#,YN10#,8#..(T1,TW1)..CBU 左側 |
1 | ||
| 66110-89107 |
LN10#,8#,YN10#,8#..(T1,TW1)..CBU 右側 |
1 | ||
| 66120-89101 |
LN10#,8#,YN10#,8#..(T1,TW1)..CBU 左側 |
1 | ||
| 66110-89108 |
LN10#,112,8#,YN10#,8#..(T1,TW1)..CBU 右側 |
1 | ||
| 66110 - HINGE ASSY, TAIL GATE | ||||
| 66120-89102 |
LN10#,112,8#,YN10#,8#..(T1,TW1)..CBU 左側 |
1 | ||
| 66110-89107 |
LN10#,8#,YN10#,8#..(T1,TW1)..CBU 右側 |
1 | ||
| 66120-89101 |
LN10#,8#,YN10#,8#..(T1,TW1)..CBU 左側 |
1 | ||
| 66110-89108 |
LN10#,112,8#,YN10#,8#..(T1,TW1)..CBU 右側 |
1 | ||
| 66311D - HOOK, ROPE | ||||
| 66311-89109 |
LN106,107,8#,YN105,107,8#..(T1,TW1)..(DLX,SDX,SR,STD)..CBU |
2 | ||
| 66321A - BUMPER, GATE RUBBER | ||||
| 66321-35010 |
LN10#,YN10#;LN85,YN8#..SDX |
2 | ||
| 66321-35020 |
LN10#,112,YN10#;LN85,86,YN80,85,86..SDX |
2 | ||
| 66321-89109 |
LN10#,YN10#;LN85,YN8#..SDX |
2 | ||
| 66321-89109 |
LN10#,YN10#;LN85,YN8#..SDX |
2 | ||
| 69090B - HANDLE ASSY, TAIL GATE | ||||
| 69090-89101 |
LN10#,85,YN10#,8#..SDX,SR ﾒﾂｷ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 69090-89102 |
LN85,86,YN80,85,86..SDX;LN100,106,107,YN10#..DLX,SR |
1 | ||
| 69759D - SILENCER, TAIL GATE LOCK LINK | ||||
| 69759-89108 |
LN10#,112,YN10#;LN85,86,YN80,85,86..SDX |
2 | ||
| 69759E - SNAP, TAIL GATE LOCK LINK | ||||
| 69759-20100 |
LN10#,YN10#;LN85,YN8#..SDX 右側 |
1 | ||
| 69759-20100 |
LN10#,112,YN10#;LN85,86,YN80,85,86..SDX ﾚｯﾄﾞ |
1 | ||
| 69759-20110 |
LN10#,YN10#;LN85,YN8#..SDX 左側 |
1 | ||
| 69759-20110 |
LN10#,112,YN10#;LN85,86,YN80,85,86..SDX ﾌﾞﾗｯｸ |
1 | ||
| Common parts | ||||
| 90109-06022 | ||||
| 90119-10510 | ||||
| 90149-80020 | ||||
| 90159-60298 | ||||
| 90159-60535 | ||||
| 90179-06016 | ||||
| 90189-06010 | ||||
| 90901-07002 | ||||
| 91511-60814 | ||||
| 91655-40820 | ||||
| 93260-16010 | ||||
| 93330-18016 | ||||
