YN80-TRQSS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )KZN130,LN100,106,107,109,13#,8#,YN10#,130,8#..MTM

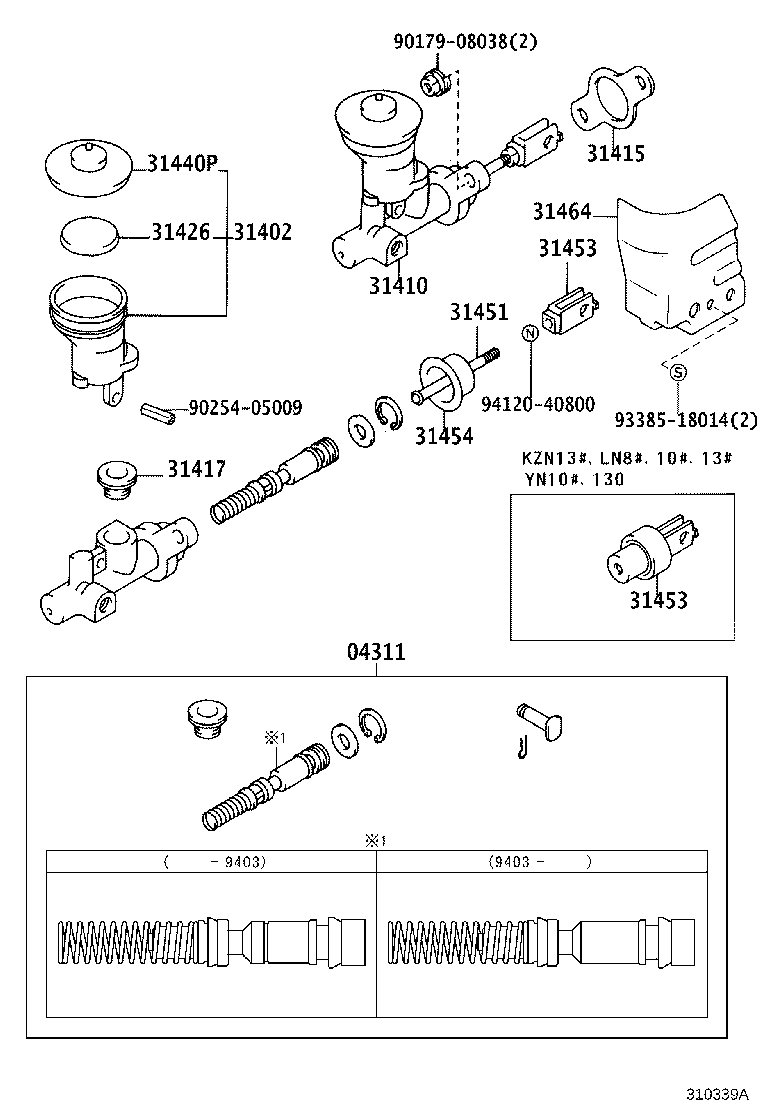

Click highlighted areas on diagram

diagram 04311 31402 31410 31415 31417 31426 31440P 31451 31453 31453 31454 31464 9017908038 9025405009 9338518014 9412040800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-12080

KZN130,LN10#,131,8#,YN10#,8#..MTM

 1
04311-22040

LN10#,8#,YN10#,8#..MTM

 1
04311-60150

KZN130,LN100,106,107,109,8#,VZN130,YN10#,8#..MTM

 1
04311-12060

VZN130..5F..SSRX;LN10#,8#,YN10#,130,8#..MTM

 1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-35070

YN8#

 1
31402-35030

LN10#,8#,YN10#,8#..MTM

 1
31402-35090

LN100,106,107,109,8#..MTM

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-35250

YN8#

 1
31410-35270

LN10#,8#..MTM

 1
31415 - GASKET, CLUTCH MASTER CYLINDER
31415-10010

KZN130,LN100,106,107,109,13#,8#,YN10#,130,8#..MTM

 1
31417 - GROMMET, CLUTCH RESERVOIR
31417-35010

KZN130,LN100,106,107,109,13#,8#,YN10#,130,8#..MTM

 1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011

KZN130,LN100,106,107,109,13#,8#,VZN130,YN10#,130,8#..MTM

 1
31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER
47230-20040

KZN130,LN100,106,107,109,13#,8#,VZN130,YN10#,130,8#..MTM

 1
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-35080

KZN130,LN10#,13#,8#,VZN130,YN10#,130..MTM

 1
31451-35070

YN8#

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-35020

LN10#,8#..MTM

 1
31453-35010

YN8#

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-35020

LN10#,8#..MTM

 1
31453-35010

YN8#

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-24010

LN10#,13#,8#,YN10#,130,8#..MTM

 1
31454-16010

LN10#,8#,YN10#,8#..MTM

 1
31454-16010

KZN130,LN100,106,107,109,8#,YN10#,8#..MTM

 1
Common parts
90179-08038
90254-05009
93385-18014
94120-40800
