YN80-TRQRS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )KZN130,LN10#,112,13#,8#

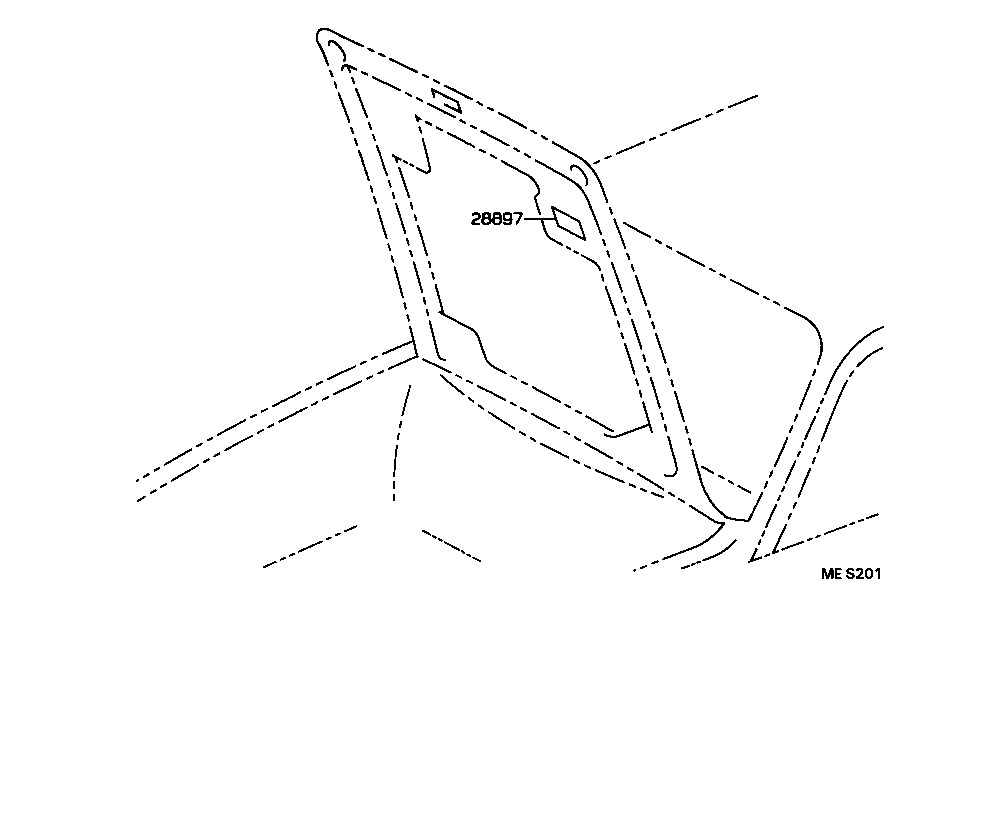

Click highlighted areas on diagram

ﾊﾞﾂﾃﾘ ｺ-ｼﾖﾝﾌﾟﾚ-ﾄ

diagram 28897
Part # Description Qty Price

(8809- )KZN130,LN10#,112,13#,8#

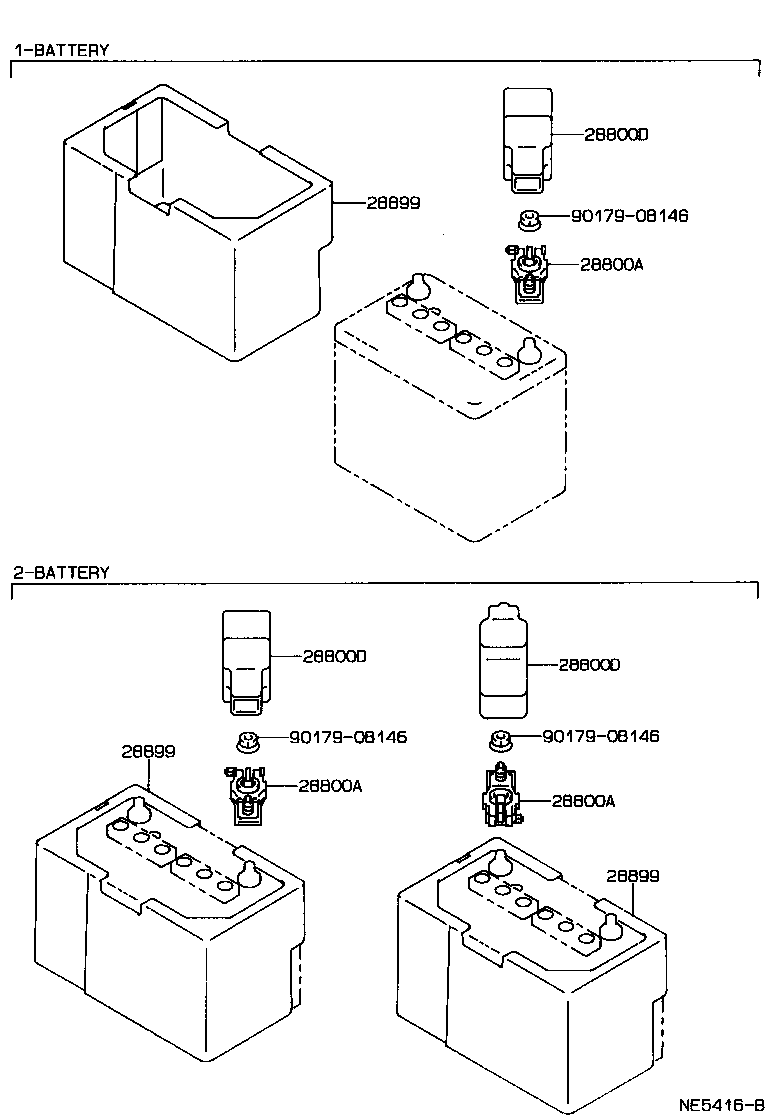

Click highlighted areas on diagram

diagram 28800A 28800A 28800A 28800D 28800D 28800D 28899 28899 28899 9017908146 9017908146 9017908146
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05036

2Y,3Y..YN10#,8#

 1
90982-05036

2Y,3YE..YN8#

 1
90982-05037

3Y#..YN107;3VZE,2Y,3Y#..VZN130,YN100,105,8#..DLX,SDX,SR,SSRX,STD

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05036

2Y,3Y..YN10#,8#

 1
90982-05036

2Y,3YE..YN8#

 1
90982-05037

3Y#..YN107;3VZE,2Y,3Y#..VZN130,YN100,105,8#..DLX,SDX,SR,SSRX,STD

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05036

2Y,3Y..YN10#,8#

 1
90982-05036

2Y,3YE..YN8#

 1
90982-05037

3Y#..YN107;3VZE,2Y,3Y#..VZN130,YN100,105,8#..DLX,SDX,SR,SSRX,STD

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

2Y,3Y#..YN10#,130,8#

 1
82821-35020

2L,3L,3VZE,2Y,3Y#..LN8#,VZN130,YN10#,8#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

2Y,3Y#..YN10#,130,8#

 1
82821-35020

2L,3L,3VZE,2Y,3Y#..LN8#,VZN130,YN10#,8#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

2Y,3Y#..YN10#,130,8#

 1
82821-35020

2L,3L,3VZE,2Y,3Y#..LN8#,VZN130,YN10#,8#

 1
Common parts
90179-08146

(8809- )VZN130,YN10#,130,8#

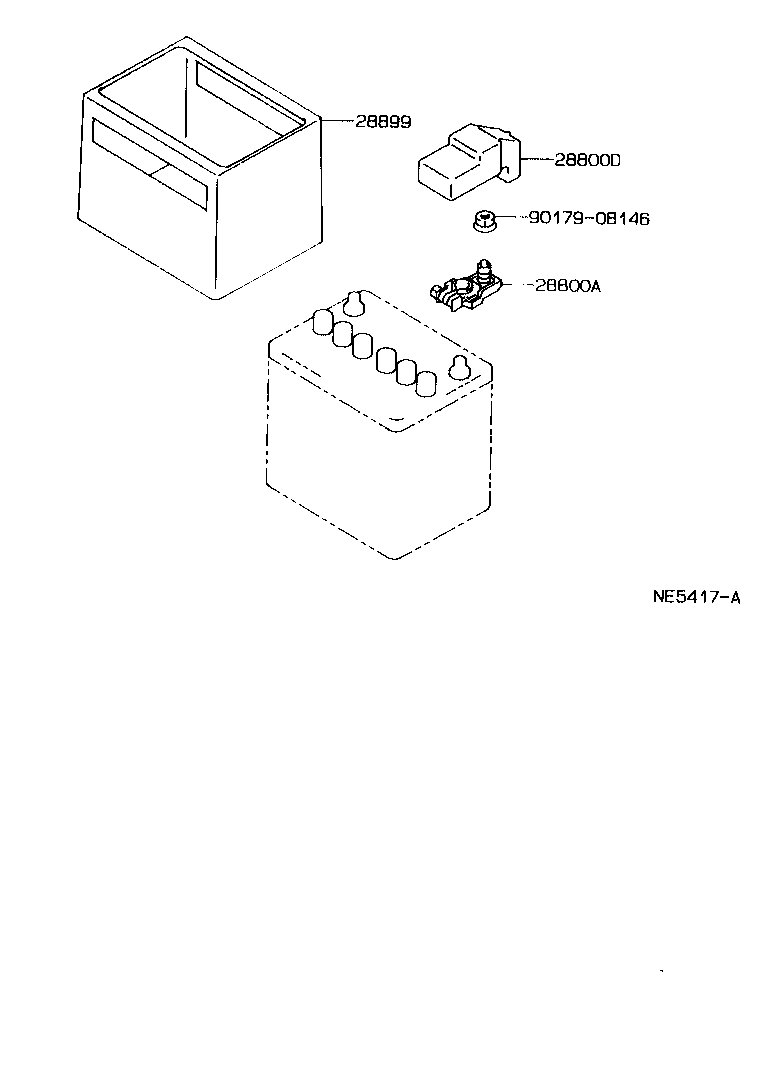

Click highlighted areas on diagram

diagram 28800A 28800D 28899 9017908146
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05036

2Y,3Y..YN10#,8#

 1
90982-05036

2Y,3YE..YN8#

 1
90982-05037

3Y#..YN107;3VZE,2Y,3Y#..VZN130,YN100,105,8#..DLX,SDX,SR,SSRX,STD

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

2Y,3Y#..YN10#,130,8#

 1
82821-35020

2L,3L,3VZE,2Y,3Y#..LN8#,VZN130,YN10#,8#

 1
Common parts
90179-08146
