YN80-TRQRS (1988)
Toyota Hilux

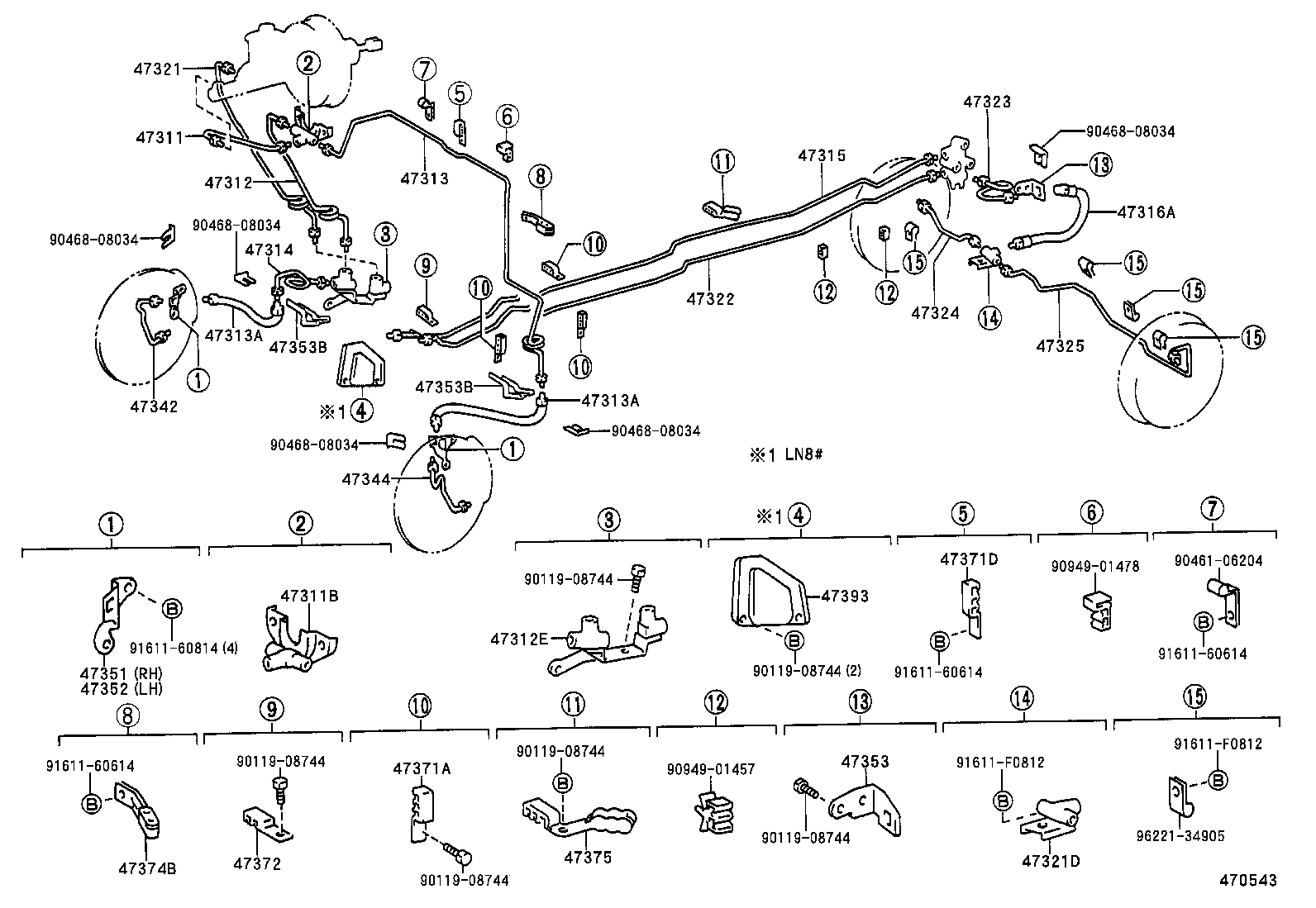

ILLUST NO. 1 OF 2(9108- )LN8#,YN8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35450 |
LN10#,13#,8#,VZN130 |
1 | ||
| 47311-35460 |
YN10#,130,8# |
1 | ||
| 47311-35450 |
KZN130,LN10#,112,8# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10226 |
YN10#,130,8# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-3D130 |
YN8# |
1 | ||
| 47312-35610 |
YN100,8# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90415-10006 |
LN100,106,8#,YN100,8# |
1 | ||
| 90412-10108 |
LN10#,8#,YN10#,8# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-35630 |
YN8# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02581 |
LN8#,YN8# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02581 |
LN8#,YN8# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-35170 |
LN8#,YN8# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-35170 |
LN80,81,YN80,81 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-34206 |
LN8#,YN8# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-35460 |
YN100,105,8# |
1 | ||
| 47321-35480 |
LN100,106,8# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-10198 |
LN8#,YN8# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-35490 |
LN80,81,YN80,81 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-35100 |
LN8#,YN8# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-35200 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-35210 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47341-35110 |
LN8#,YN8# |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47343-35110 |
LN8#,YN8# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-35170 |
LN8#,YN8# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-35190 |
LN8#,YN8# |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47352-35200 |
LN8#,YN8# |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-35070 |
LN8#,YN8# 左側 |
1 | ||
| 47353-35060 |
LN8#,YN8# 右側 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-35070 |
LN8#,YN8# 左側 |
1 | ||
| 47353-35060 |
LN8#,YN8# 右側 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-35070 |
YN85;LN8#,YN80..RCB |
3 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47372-35080 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-35030 |
KZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-35020 |
LN10#,112,13#,8#,YN10#,130,8# ﾌﾛﾝﾄ |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47375-35100 |
YN8#..RCB |
1 | ||
| Common parts | ||||
| 90119-08744 | ||||
| 90461-06204 | ||||
| 90468-08034 | ||||
| 90949-01457 | ||||
| 90949-01478 | ||||
| 91611-60614 | ||||
| 91611-60814 | ||||
| 91611-F0812 | ||||
| 96221-34905 | ||||

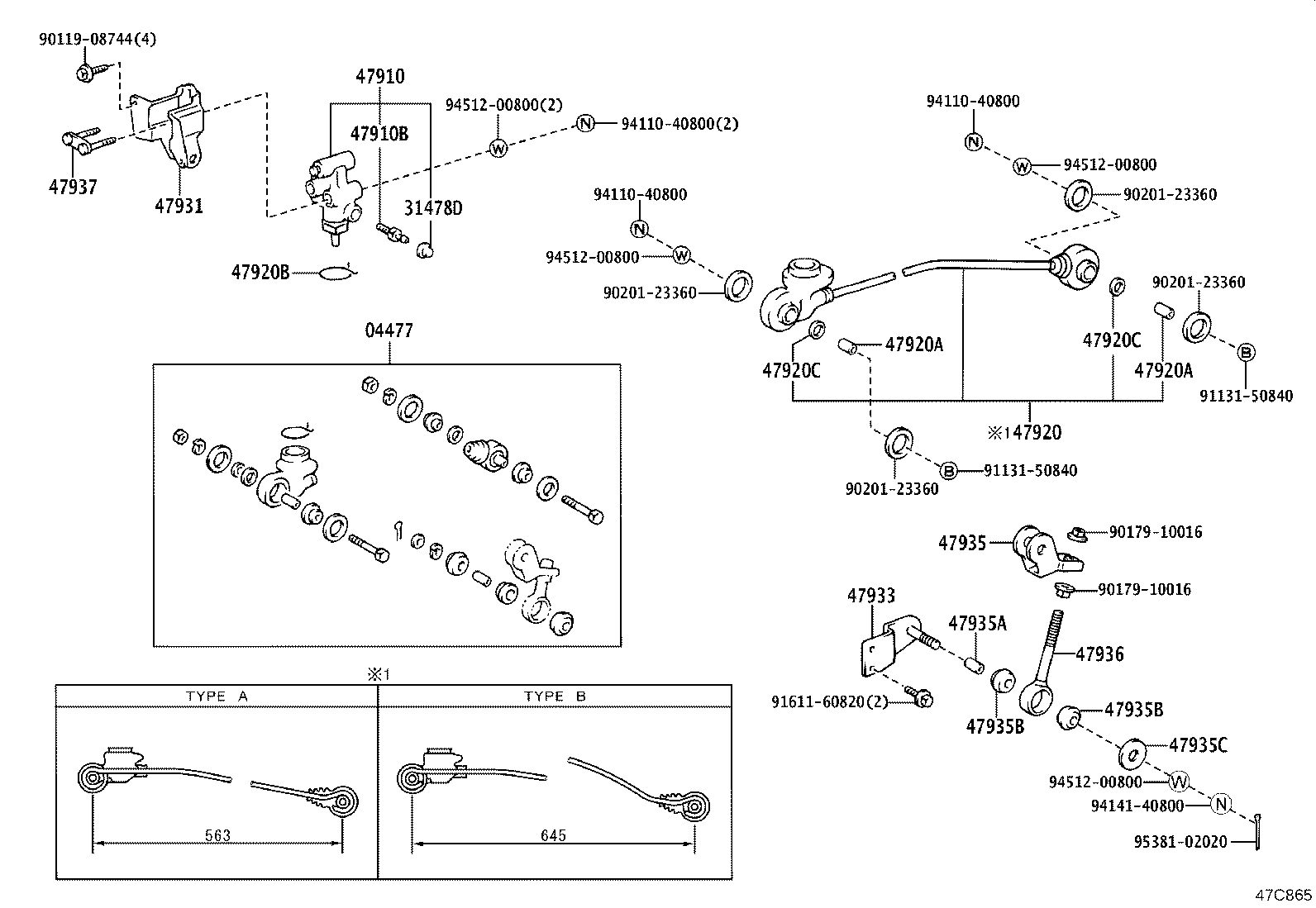

ILLUST NO. 2 OF 2(8809- )LN8#,YN8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-60010 |
LN13#,8#,VZN130,YN130,8#..2D,4D,T1,T3,TW1 |
1 | ||
| 04477-60010 |
LN8#,YN8#..T1,TW1 |
1 | ||
| 04477-60010 |
KZN130,LN8#,VZN130,YN8#..2D,4D,T1,TW1 |
1 | ||
| 31478D - CAP, BLEEDER PLUG(FOR LSPV) | ||||
| 31478-30010 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-35110 |
LN8#,YN8# |
1 | ||
| 47910-35121 |
LN8#,YN8#..T1,TW1 |
1 | ||
| 47910-35110 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| 47910-35250 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| 47910-35231 |
LN8#,YN8#..T1,TW1 |
1 | ||
| 47910B - PLUG, BLEEDER | ||||
| 47547-27020 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-35090 |
LN8#,YN8#..T1,T3,TW1 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 47920-35070 |
LN8#,YN8#..T1,TW1 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 47920-35070 |
LN8#,YN8#..T1,T3,TW1 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-35080 |
LN10#,112,8#,YN10#,8# |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-35060 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| 47933-35060 |
LN8#,YN8#..T1,TW1 |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35020 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90201-08062 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35040 |
KZN130,LN13#,8#,VZN130,YN130,8# |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
LN10#,112,8#,YN10#,8# |
1 | ||
| Common parts | ||||
| 90119-08744 | ||||
| 90179-10016 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-60820 | ||||
| 94110-40800 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 95381-02020 | ||||

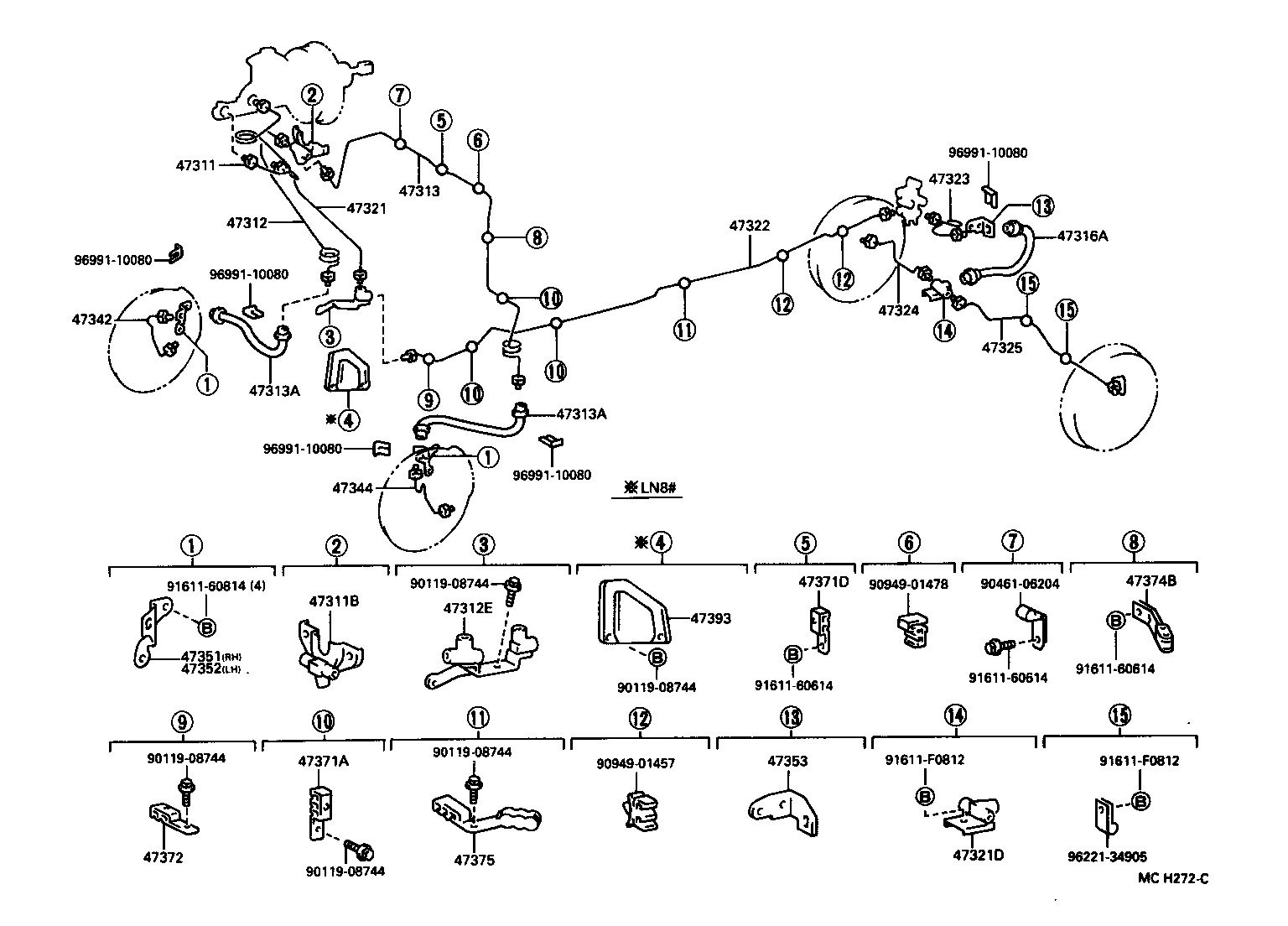

ILLUST NO. 1 OF 2(8809-9108)LN8#,YN8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35450 |
LN10#,13#,8#,VZN130 |
1 | ||
| 47311-35460 |
YN10#,130,8# |
1 | ||
| 47311-35450 |
KZN130,LN10#,112,8# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10226 |
YN10#,130,8# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-3D130 |
YN8# |
1 | ||
| 47312-35610 |
YN100,8# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90415-10006 |
LN100,106,8#,YN100,8# |
1 | ||
| 90412-10108 |
LN10#,8#,YN10#,8# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-35630 |
YN8# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02581 |
LN8#,YN8# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02581 |
LN8#,YN8# |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-34206 |
LN8#,YN8# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-35460 |
YN100,105,8# |
1 | ||
| 47321-35480 |
LN100,106,8# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-10198 |
LN8#,YN8# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-35490 |
LN80,81,YN80,81 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-35100 |
LN8#,YN8# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-35200 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-35210 |
LN8#,YN8#..T1,T3,TW1 |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47341-35110 |
LN8#,YN8# |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47343-35110 |
LN8#,YN8# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-35170 |
LN8#,YN8# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-35190 |
LN8#,YN8# |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47352-35200 |
LN8#,YN8# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-35070 |
YN85;LN8#,YN80..RCB |
3 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47372-35080 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-35030 |
KZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-35020 |
LN10#,112,13#,8#,YN10#,130,8# ﾌﾛﾝﾄ |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47375-35100 |
YN8#..RCB |
1 | ||
| Common parts | ||||
| 90119-08744 | ||||
| 90461-06204 | ||||
| 90949-01457 | ||||
| 90949-01478 | ||||
| 91611-60614 | ||||
| 91611-60814 | ||||
| 91611-F0812 | ||||
| 96221-34905 | ||||
| 96991-10080 | ||||
