YN80-TRQDS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )

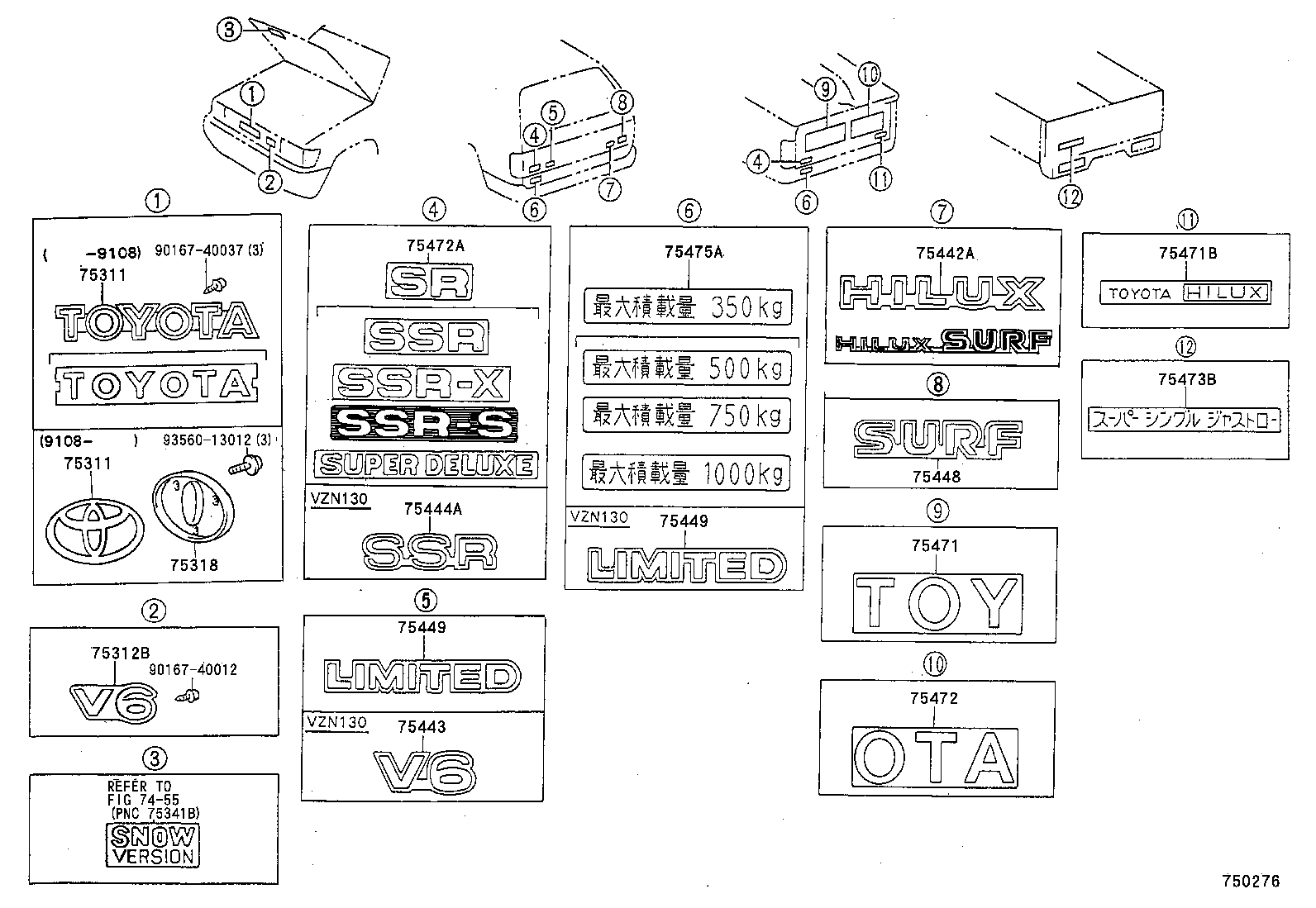

Click highlighted areas on diagram

diagram 7455 75311 75311 75312B 75318 75442A 75443 75444A 75448 75449 75449 75471 75471B 75472 75472A 75473B 75475A 9016740012 9016740037 9356013012
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-89119

LN8#,YN8#..DLX,SDX

 1
75311-35050

LN8#,YN8#

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-89119

LN8#,YN8#..DLX,SDX

 1
75311-35050

LN8#,YN8#

 1
75471B - PLATE, REAR BODY NAME, NO.1
75471-89120

LN10#,8#,YN10#,8#

 1
75475A - PLATE, REAR BODY NAME, NO.5
75475-89111

LN8#,YN8#..RCB

 1
Common parts
90167-40012
90167-40037
93560-13012
Linked diagrams
7455
