YN80-TRQDS (1988)
Toyota Hilux

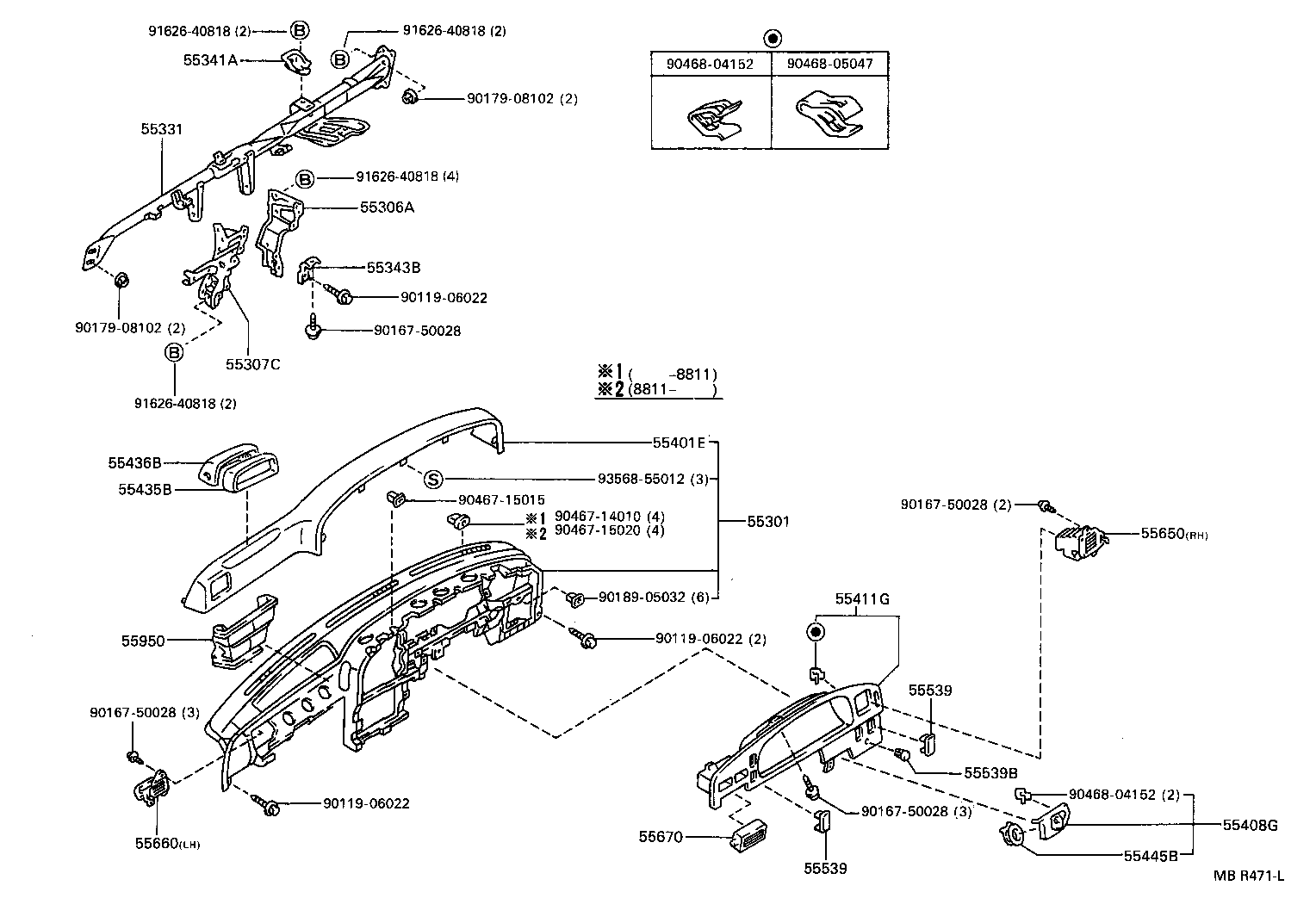

ILLUST NO. 1 OF 2(8809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-8912303 |
LN10#,8#,YN10#,8# GRAY,TRIM1# |
1 | ||
| 55301-89123E0 |
LN130,8#,VZN130,YN130,8#..(RCB,WG)..(DLX,SDX,SSR) BROWN,TRIM4# |
1 | ||
| 55301-89123J0 |
LN10#,8#,YN10#,8#..DLX,SDX,SR MEDIUM BLUE,TRIM8# |
1 | ||
| 55301-8912304 |
LN10#,8#,YN10#,8# BLUE,TRIM8# |
1 | ||
| 55301-89123J0 |
LN10#,8#,YN10#,8# MEDIUM BLUE,TRIM8# |
1 | ||
| 55301-89123B0 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# MEDIUM GRAY,TRIM1# |
1 | ||
| 55301-8912306 |
LN8#,YN8#..DLX,SDX BROWN,TRIM4# |
1 | ||
| 55301-89123J0 |
LN10#,8#,YN10#,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
1 | ||
| 55301-89123J0 |
LN130,VZN130..4D;LN130,VZN130..2D..SSR;LN10#,131,8#,YN10#,130,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-89106 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-89108 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-89118 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 55341A - BRACE, INSTRUMENT PANEL TO COWL, UPPER | ||||
| 55341-89104 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-89102 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-8912304 |
LN10#,8#,YN10#,8# BLUE,TRIM8# |
1 | ||
| 55401-8912303 |
LN10#,8#,YN10#,8# GRAY,TRIM1# |
1 | ||
| 55401-8912306 |
LN8#,YN8#..DLX,SDX BROWN,TRIM4# |
1 | ||
| 55401-89123B0 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# MEDIUM GRAY,TRIM1# |
1 | ||
| 55401-89123E0 |
LN130,8#,VZN130,YN130,8#..DLX,SDX,SSR BROWN,TRIM4# |
1 | ||
| 55401-89123J0 |
LN10#,8#,YN10#,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
1 | ||
| 55401-89123J0 |
LN10#,8#,YN10#,8# MEDIUM BLUE,TRIM8# |
1 | ||
| 55401-89123J0 |
LN130,VZN130..4D;LN130,VZN130..2D..SSR;LN10#,131,8#,YN10#,130,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
1 | ||
| 55401-89123J0 |
LN10#,8#,YN10#,8#..DLX,SDX,SR MEDIUM BLUE,TRIM8# |
1 | ||
| 55408G - BEZEL SUB-ASSY, STARTER SWITCH | ||||
| 55408-89104 |
KZN130,LN100,106,107,109,13#,8#,VZN130,YN10#,130,8#..MTM |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-89114 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-89103 |
KZN130,LN100,106,107,109,13#,8#,VZN130,YN10#,130,8#..MTM |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-89105 |
LN130..SSR;KZN130..4D;KZN130..2D..SSR;LN10#,131,8#,VZN130,YN10#,130,8# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-89105 |
LN130..SSR;KZN130..4D;KZN130..2D..SSR;LN10#,131,8#,VZN130,YN10#,130,8# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-89104 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-89113 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-8910803 |
KZN130,LN10#,13#,8#,VZN130,YN10#,130,8# GRAY,TRIM1# |
1 | ||
| 55660-8910806 |
LN130,8#,VZN130,YN130,8#..DLX,SDX,SSR BROWN,TRIM4# |
1 | ||
| 55660-8910804 |
LN10#,8#,YN10#,8#..DLX,SDX,SR BLUE,TRIM8# |
1 | ||
| 55660-8910804 |
LN10#,8#,YN10#,8# BLUE,TRIM8# |
1 | ||
| 55660-8910804 |
LN10#,8#,YN10#,8#..DLX,SDX,SR,SSR BLUE,TRIM8# |
1 | ||
| 55660-8910804 |
LN130,VZN130..4D;LN130,VZN130..2D..SSR;LN10#,131,8#,YN10#,130,8#..DLX,SDX,SR,SSR BLUE,TRIM8# |
1 | ||
| 55660-89108J0 |
LN10#,8#,YN10#,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
1 | ||
| 55660-89108B0 |
KZN130,LN10#,112,8#,VZN130,YN10#,8# MEDIUM GRAY,TRIM1# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-89116 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
2 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-89109 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 90167-50028 | ||||
| 90179-08102 | ||||
| 90189-05032 | ||||
| 90467-14010 | ||||
| 90467-15015 | ||||
| 90467-15020 | ||||
| 90468-04152 | ||||
| 90468-05047 | ||||
| 91626-40818 | ||||
| 93568-55012 | ||||

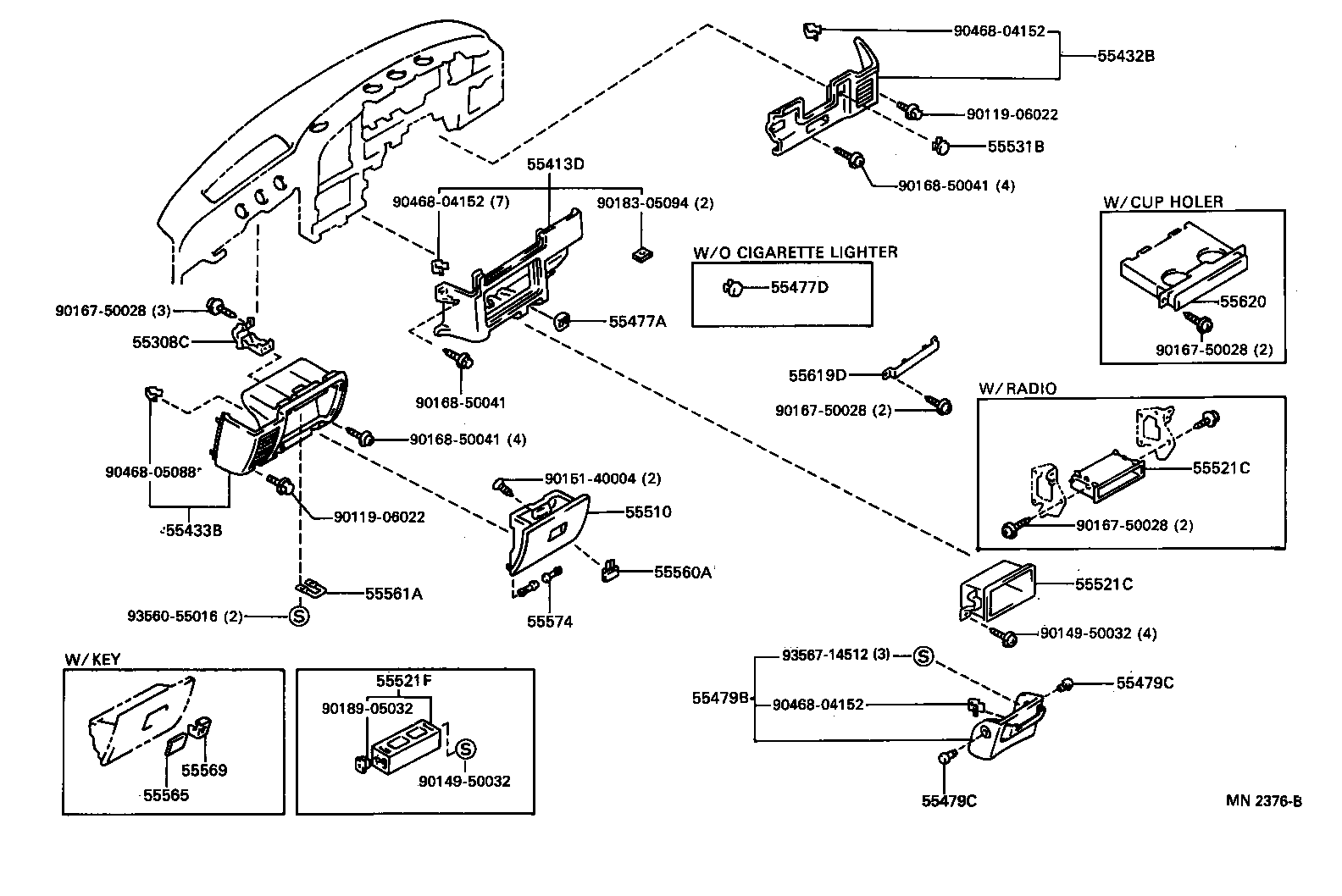

ILLUST NO. 2 OF 2(8809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-89109 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-8910304 |
LN10#,8#,YN10#,8# BLUE,TRIM8# |
1 | ||
| 55413-89103B0 |
LN10#,13#,8#,VZN130,YN10#,130,8# MEDIUM GRAY,TRIM1# |
1 | ||
| 55413-89103J0 |
LN10#,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
1 | ||
| 55413-89103J0 |
LN10#,8#,YN10#,8# MEDIUM BLUE,TRIM8# |
1 | ||
| 55413-8910303 |
LN10#,8#,YN10#,8# GRAY,TRIM1# |
1 | ||
| 55413-8910306 |
LN8#,YN8#..DLX,SDX BROWN,TRIM4# |
1 | ||
| 55413-35020J0 |
LN10#,8#,YN10#,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
1 | ||
| 55413-35020J0 |
LN130,VZN130..4D;LN130,VZN130..2D..SSR;LN10#,131,8#,YN10#,130,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
1 | ||
| 55413-89103E0 |
LN130,8#,VZN130,YN130,8#..DLX,SDX,SSR BROWN,TRIM4# |
1 | ||
| 55413-35020E0 |
LN130,8#,VZN130,YN130,8#..DLX,SDX,SSR BROWN,TRIM4# |
1 | ||
| 55413-89103J0 |
LN10#,8#,YN10#,8#..DLX,SDX,SR MEDIUM BLUE,TRIM8# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-8911504 |
LN10#,8#,YN10#,8# BLUE,TRIM8# |
1 | ||
| 55432-89115J0 |
LN10#,8#,YN10#,8# MEDIUM BLUE,TRIM8# |
1 | ||
| 55432-8911506 |
LN8#,YN8#..DLX,SDX BROWN,TRIM4# |
1 | ||
| 55432-89115J0 |
LN10#,8#,YN10#,8#..DLX,SDX,SR MEDIUM BLUE,TRIM8# |
1 | ||
| 55432-89115E0 |
LN130,8#,VZN130,YN130,8#..DLX,SDX,SSR BROWN,TRIM4# |
1 | ||
| 55432-8911503 |
LN10#,8#,YN10#,8# GRAY,TRIM1# |
1 | ||
| 55432-89115J0 |
LN10#,8#,YN10#,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
1 | ||
| 55432-89115J0 |
LN130,VZN130..4D;LN130,VZN130..2D..SSR;LN10#,131,8#,YN10#,130,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
1 | ||
| 55432-89115B0 |
VZN130..SSRX;VZN130..2D..SSR;KZN130,LN10#,112,13#,8#,YN10#,130,8# MEDIUM GRAY,TRIM1# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-8910906 |
LN8#,YN8#..DLX,SDX BROWN,TRIM4# |
1 | ||
| 55433-8910904 |
LN10#,8#,YN10#,8# BLUE,TRIM8# |
1 | ||
| 55433-89109J0 |
LN10#,8#,YN10#,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
1 | ||
| 55433-8910903 |
LN10#,8#,YN10#,8# GRAY,TRIM1# |
1 | ||
| 55433-89109E0 |
LN130,8#,VZN130,YN130,8#..DLX,SDX,SSR BROWN,TRIM4# |
1 | ||
| 55433-89109J0 |
LN130,VZN130..4D;LN130,VZN130..2D..SSR;LN10#,131,8#,YN10#,130,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
1 | ||
| 55433-89109J0 |
LN10#,8#,YN10#,8#..DLX,SDX,SR MEDIUM BLUE,TRIM8# |
1 | ||
| 55433-89109J0 |
LN10#,8#,YN10#,8# MEDIUM BLUE,TRIM8# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-89105 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 55479B - COVER, INSTRUMENT, LOWER CENTER | ||||
| 55479-8910306 |
LN8#,YN8#..DLX,SDX BROWN,TRIM4# |
1 | ||
| 55479-89103J0 |
LN10#,8#,YN10#,8#..DLX,SDX,SR MEDIUM BLUE,TRIM8# |
1 | ||
| 55479-89103J0 |
LN10#,8#,YN10#,8# MEDIUM BLUE,TRIM8# |
1 | ||
| 55479-89103J0 |
LN10#,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
1 | ||
| 55479-8910303 |
LN10#,8#,YN10#,8# GRAY,TRIM1# |
1 | ||
| 55479-8910304 |
LN10#,8#,YN10#,8# BLUE,TRIM8# |
1 | ||
| 55407-35020J0 |
LN10#,8#,YN10#,8#..DLX,SDX,SR,SSR BLUE,TRIM8# |
1 | ||
| 55407-35020B0 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,8# GRAY,TRIM1# |
1 | ||
| 55479-89103E0 |
LN130,8#,VZN130,YN130,8#..DLX,SDX,SSR BROWN,TRIM4# |
1 | ||
| 55479-89103B0 |
LN10#,13#,8#,VZN130,YN10#,130,8# MEDIUM GRAY,TRIM1# |
1 | ||
| 55407-35020J0 |
LN130..2D..SSR;LN10#,13#,8#,VZN130,YN10#,8#..(4D,T1,T2,T3,TW1)..(DLX,SDX,SR,SSR,SSRX) BLUE,TRIM8# |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-0704110 |
LN10#,8#,YN10#,8# MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-0704156 |
LN8#,YN8#..DLX,SDX BROWN,TRIM4# |
2 | ||
| 90467-07041J1 |
LN10#,8#,YN10#,8# MEDIUM BLUE,TRIM8# |
2 | ||
| 90467-07041E1 |
LN130,8#,VZN130,YN130,8#..DLX,SDX,SSR BROWN,TRIM4# |
2 | ||
| 90467-07041J1 |
LN130,VZN130..4D;LN130,VZN130..2D..SSR;LN10#,131,8#,YN10#,130,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
2 | ||
| 90467-0704144 |
LN10#,8#,YN10#,8# BLUE,TRIM8# |
2 | ||
| 90467-07041J1 |
LN10#,8#,YN10#,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
2 | ||
| 90467-07041J1 |
LN10#,8#,YN10#,8#..DLX,SDX,SR MEDIUM BLUE,TRIM8# |
2 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-0704110 |
LN10#,8#,YN10#,8# MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-0704156 |
LN8#,YN8#..DLX,SDX BROWN,TRIM4# |
2 | ||
| 90467-07041J1 |
LN10#,8#,YN10#,8# MEDIUM BLUE,TRIM8# |
2 | ||
| 90467-07041E1 |
LN130,8#,VZN130,YN130,8#..DLX,SDX,SSR BROWN,TRIM4# |
2 | ||
| 90467-07041J1 |
LN130,VZN130..4D;LN130,VZN130..2D..SSR;LN10#,131,8#,YN10#,130,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
2 | ||
| 90467-0704144 |
LN10#,8#,YN10#,8# BLUE,TRIM8# |
2 | ||
| 90467-07041J1 |
LN10#,8#,YN10#,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
2 | ||
| 90467-07041J1 |
LN10#,8#,YN10#,8#..DLX,SDX,SR MEDIUM BLUE,TRIM8# |
2 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-8910104 |
LN10#,8#,YN10#,8# BLUE,TRIM8# |
1 | ||
| 55550-89101J0 |
LN10#,8#,YN10#,8#..DLX,SDX,SR MEDIUM BLUE,TRIM8# |
1 | ||
| 55550-8910103 |
LN10#,8#,YN10#,8# GRAY,TRIM1# |
1 | ||
| 55550-8910106 |
LN8#,YN8#..DLX,SDX BROWN,TRIM4# |
1 | ||
| 55550-89101E0 |
LN130,8#,VZN130,YN130,8#..DLX,SDX,SSR BROWN,TRIM4# |
1 | ||
| 55550-89101B0 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# MEDIUM GRAY,TRIM1# |
1 | ||
| 55550-89101J0 |
LN10#,8#,YN10#,8# MEDIUM BLUE,TRIM8# |
1 | ||
| 55550-89101J0 |
LN130,VZN130..4D;LN130,VZN130..2D..SSR;LN10#,131,8#,YN10#,130,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
1 | ||
| 55550-89101J0 |
LN10#,8#,YN10#,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-89102 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,SSRX |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-89102 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR,SSRX |
1 | ||
| 55531B - COVER, CHOKE KNOB HOLE | ||||
| 55531-8910506 |
YN8#..DLX,SDX BROWN,TRIM4# |
1 | ||
| 55531-8910503 |
YN10#,8# GRAY,TRIM1# |
1 | ||
| 55531-89105J0 |
LN130..2D..SSR;LN130,VZN130,YN10#,8#..(4D,T1,T2,T3,TW1)..(DLX,SDX,SR,SSR,SSRX) MEDIUM BLUE,TRIM8# |
1 | ||
| 55531-89105E0 |
VZN130,YN130,8#..DLX,SDX,SSR BROWN,TRIM4# |
1 | ||
| 55531-89105J0 |
YN10#,8#..DLX,SDX,SR MEDIUM BLUE,TRIM8# |
1 | ||
| 55531-89105J0 |
VZN130,YN10#,130,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
1 | ||
| 55531-89105B0 |
VZN130,YN10#,130,8# MEDIUM GRAY,TRIM1# |
1 | ||
| 55531-89105J0 |
YN10#,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
1 | ||
| 55531-89105B0 |
KZN130,LN108,112,130,VZN130,YN10#,8# MEDIUM GRAY,TRIM1# |
1 | ||
| 55531-89105J0 |
YN10#,8# MEDIUM BLUE,TRIM8# |
1 | ||
| 55531-8910504 |
YN10#,8# BLUE,TRIM8# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-89103J0 |
LN10#,8#,YN10#,8# MEDIUM BLUE,TRIM8# |
1 | ||
| 55560-8910303 |
LN10#,8#,YN10#,8# GRAY,TRIM1# |
1 | ||
| 55560-89103J0 |
LN10#,13#,8#,VZN130,YN10#,130,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
1 | ||
| 55560-89103J0 |
LN10#,8#,YN10#,8#..DLX,SDX,SR,SSR MEDIUM BLUE,TRIM8# |
1 | ||
| 55560-8910304 |
LN10#,8#,YN10#,8# BLUE,TRIM8# |
1 | ||
| 55560-89103E0 |
LN130,8#,VZN130,YN130,8#..DLX,SDX,SSR BROWN,TRIM4# |
1 | ||
| 55560-89103B0 |
LN10#,13#,8#,VZN130,YN10#,130,8# MEDIUM GRAY,TRIM1# |
1 | ||
| 55560-89103B0 |
LN10#,8#,YN10#,8# MEDIUM GRAY,TRIM1# |
1 | ||
| 55560-89103J0 |
LN10#,8#,YN10#,8#..DLX,SDX,SR MEDIUM BLUE,TRIM8# |
1 | ||
| 55560-8910306 |
LN8#,YN8#..DLX,SDX BROWN,TRIM4# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-89104 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
2 | ||
| 55619D - COVER, CUP HOLDER HOLE | ||||
| 55619-89101 |
LN106,8#,YN8#..DLX,SDX,STD |
1 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 90149-50032 | ||||
| 90151-40004 | ||||
| 90167-50028 | ||||
| 90168-50041 | ||||
| 90183-05094 | ||||
| 90189-05032 | ||||
| 90468-04152 | ||||
| 90468-05088 | ||||
| 93560-55016 | ||||
| 93567-14512 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
