YN80-TRQDS (1988)
Toyota Hilux

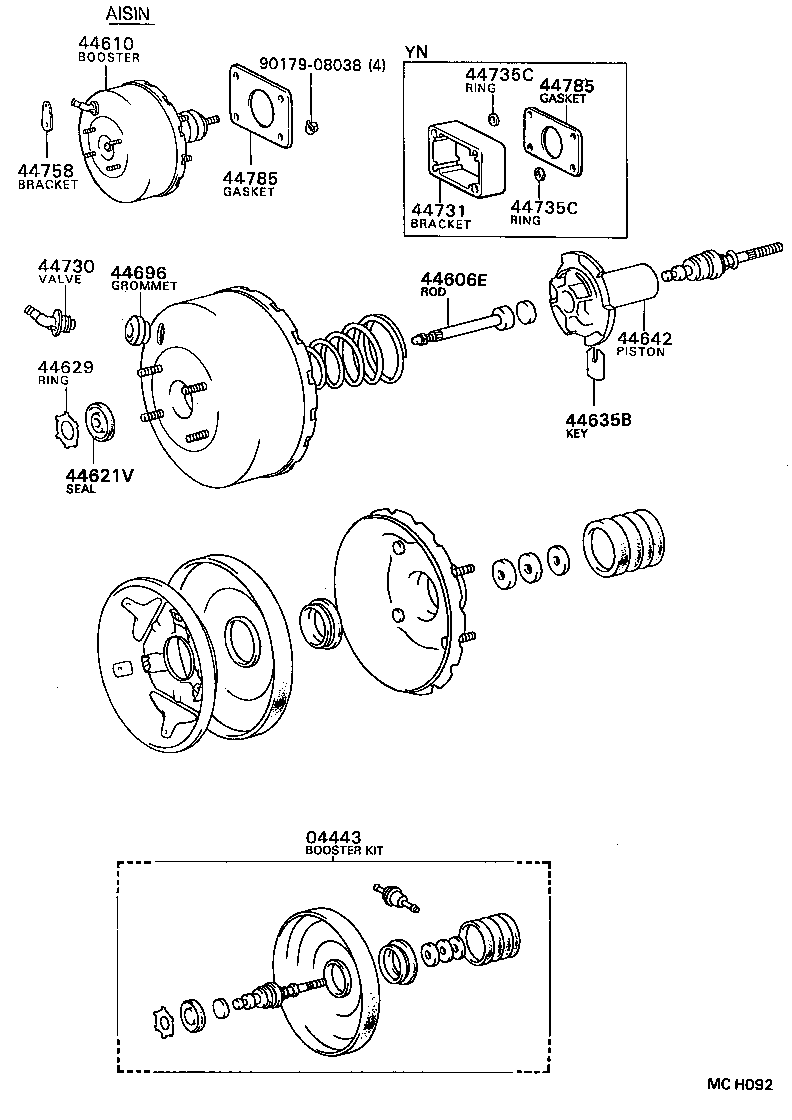

ILLUST NO. 1 OF 2(8809-9108)LN10#,8#,YN10#,8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-35710 |
YN10#,8# |
1 | ||
| 04443-35730 |
LN10#,8# |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12520 |
LN10#,8#,YN10#,8# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-3D080 |
YN10#,8# |
1 | ||
| 44610-3D121 |
LN100,106,107,8# |
1 | ||
| 44610-3D120 |
LN10#,8# |
1 | ||
| 44610-3D081 |
YN100,8# |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
LN10#,8#,YN10#,8# |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
LN10#,8#,YN10#,8# |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-28120 |
LN10#,8#,YN10#,8# |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-32030 |
LN10#,8#,YN10#,8# |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
VZN130,YN10#,130,8# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60050 |
KZN130,LN10#,112,13#,8# |
1 | ||
| 44730-30040 |
VZN130,YN10#,130,8# |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-35110 |
YN100,105,8# |
1 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
YN100,105,8# |
2 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
YN100,105,8# |
2 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-14140 |
YN10#,8# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
LN10#,112,8#,VZN130,YN10# |
1 | ||
| 44785-35020 |
LN10#,13#,8#,VZN130,YN107,130 |
1 | ||
| 44785-35020 |
YN8# |
2 | ||
| 44785-35020 |
YN100,105,8# |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
LN10#,112,8#,VZN130,YN10# |
1 | ||
| 44785-35020 |
LN10#,13#,8#,VZN130,YN107,130 |
1 | ||
| 44785-35020 |
YN8# |
2 | ||
| 44785-35020 |
YN100,105,8# |
2 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 1 OF 2(9108- )LN10#,112,13#,8#,VZN130,YN10#,8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-3D080 |
YN10#,8# |
1 | ||
| 44610-3D121 |
LN100,106,107,8# |
1 | ||
| 44610-3D120 |
LN10#,8# |
1 | ||
| 44610-3D081 |
YN100,8# |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
VZN130,YN10#,130,8# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60050 |
KZN130,LN10#,112,13#,8# |
1 | ||
| 44730-30040 |
VZN130,YN10#,130,8# |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-35110 |
YN100,105,8# |
1 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
YN100,105,8# |
2 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
YN100,105,8# |
2 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-14140 |
YN10#,8# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
LN10#,112,8#,VZN130,YN10# |
1 | ||
| 44785-35020 |
LN10#,13#,8#,VZN130,YN107,130 |
1 | ||
| 44785-35020 |
YN8# |
2 | ||
| 44785-35020 |
YN100,105,8# |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
LN10#,112,8#,VZN130,YN10# |
1 | ||
| 44785-35020 |
LN10#,13#,8#,VZN130,YN107,130 |
1 | ||
| 44785-35020 |
YN8# |
2 | ||
| 44785-35020 |
YN100,105,8# |
2 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 91651-A0614 | ||||

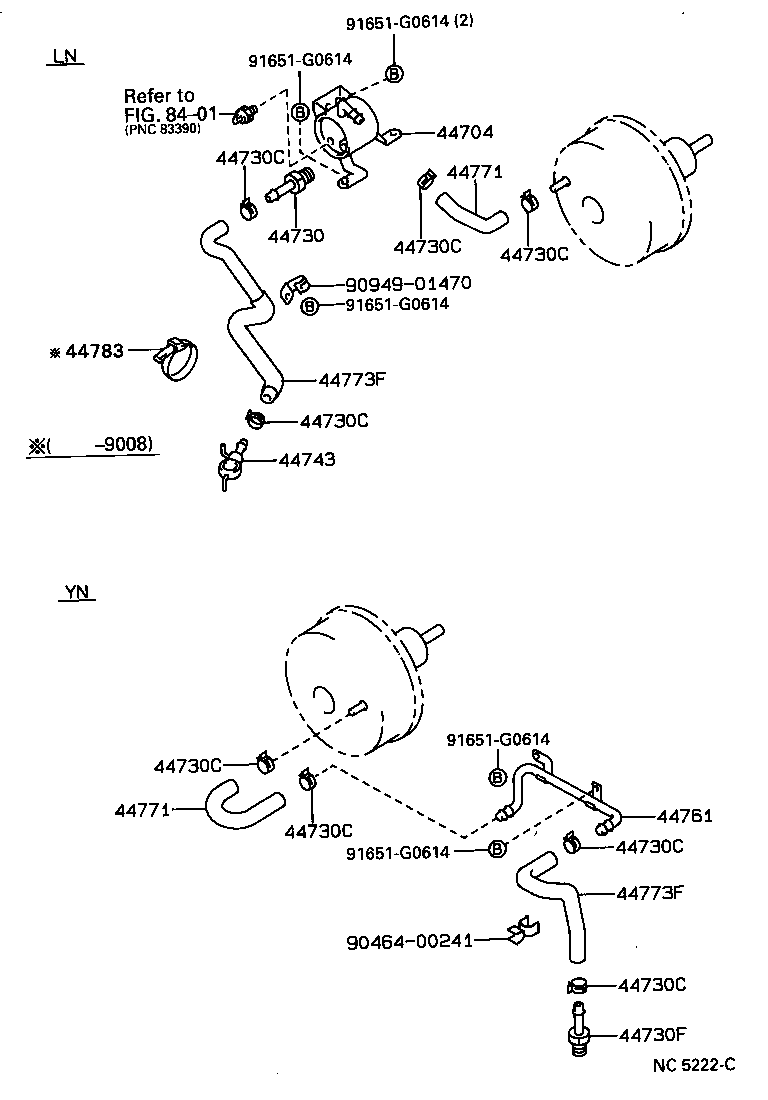

ILLUST NO. 2 OF 2(8809- )LN10#,13#,8#,YN10#,130,8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-35050 |
LN10#,13#,8# |
1 | ||
| 44704-35070 |
KZN130,LN10#,112,13#,8# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60050 |
KZN130,LN10#,112,13#,8# |
1 | ||
| 44730-30040 |
VZN130,YN10#,130,8# |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LN10#,112,13#,8#,YN10#,130,8# |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LN10#,112,13#,8#,YN10#,130,8# |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LN10#,112,13#,8#,YN10#,130,8# |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LN10#,112,13#,8#,YN10#,130,8# |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LN10#,112,13#,8#,YN10#,130,8# |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LN10#,112,13#,8#,YN10#,130,8# |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LN10#,112,13#,8#,YN10#,130,8# |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LN10#,112,13#,8#,YN10#,130,8# |
4 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51031 |
YN10#,8# |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09127 |
LN10#,8# ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 90405-09128 |
LN10#,8# |
1 | ||
| 90405-09149 |
LN10#,8#..DLX,SDX,SR ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 90405-09150 |
LN100,106,107,8# |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-35040 |
YN10#,130,8# |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-35070 |
YN100,105,130,8# |
1 | ||
| 44771-35090 |
KZN130,LN10#,112,13#,8# |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-35070 |
YN100,105,130,8# |
1 | ||
| 44771-35090 |
KZN130,LN10#,112,13#,8# |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-35410 |
LN10#,13#,8# |
1 | ||
| 44773-35350 |
YN10#,8# |
1 | ||
| 44773-35500 |
LN100,106,107,109,8# |
1 | ||
| 44773-35410 |
LN10#,8# |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-35410 |
LN10#,13#,8# |
1 | ||
| 44773-35350 |
YN10#,8# |
1 | ||
| 44773-35500 |
LN100,106,107,109,8# |
1 | ||
| 44773-35410 |
LN10#,8# |
1 | ||
| Common parts | ||||
| 90464-00241 | ||||
| 90949-01470 | ||||
| 91651-G0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
